Test 49: Washer Fluid Low Light Operating Incorrectly

Fig 1: Test 49: Circuit Diagram

G90B17229

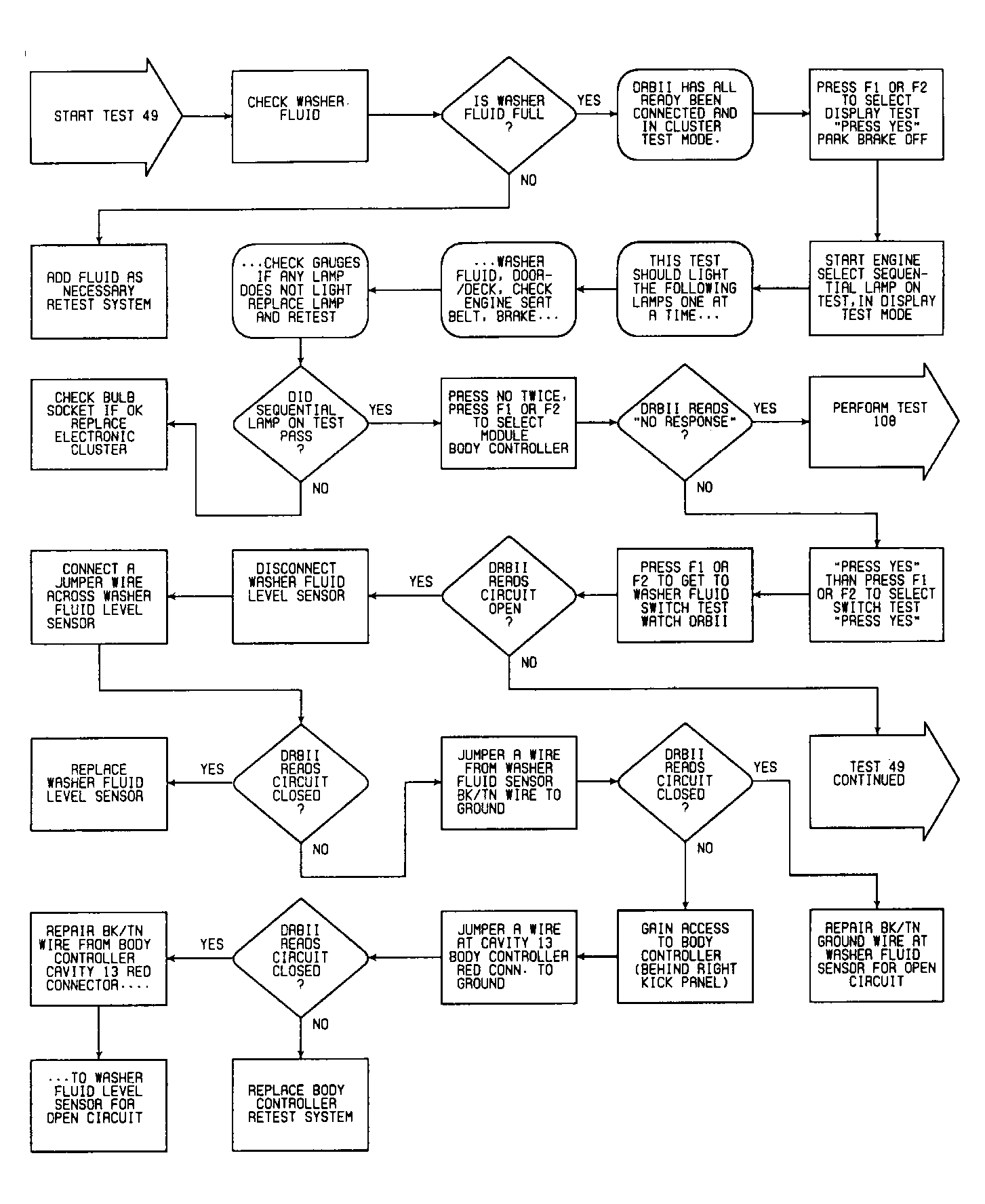

Fig 2: Test 49: Flow Chart (1 of 2)

G90J12301

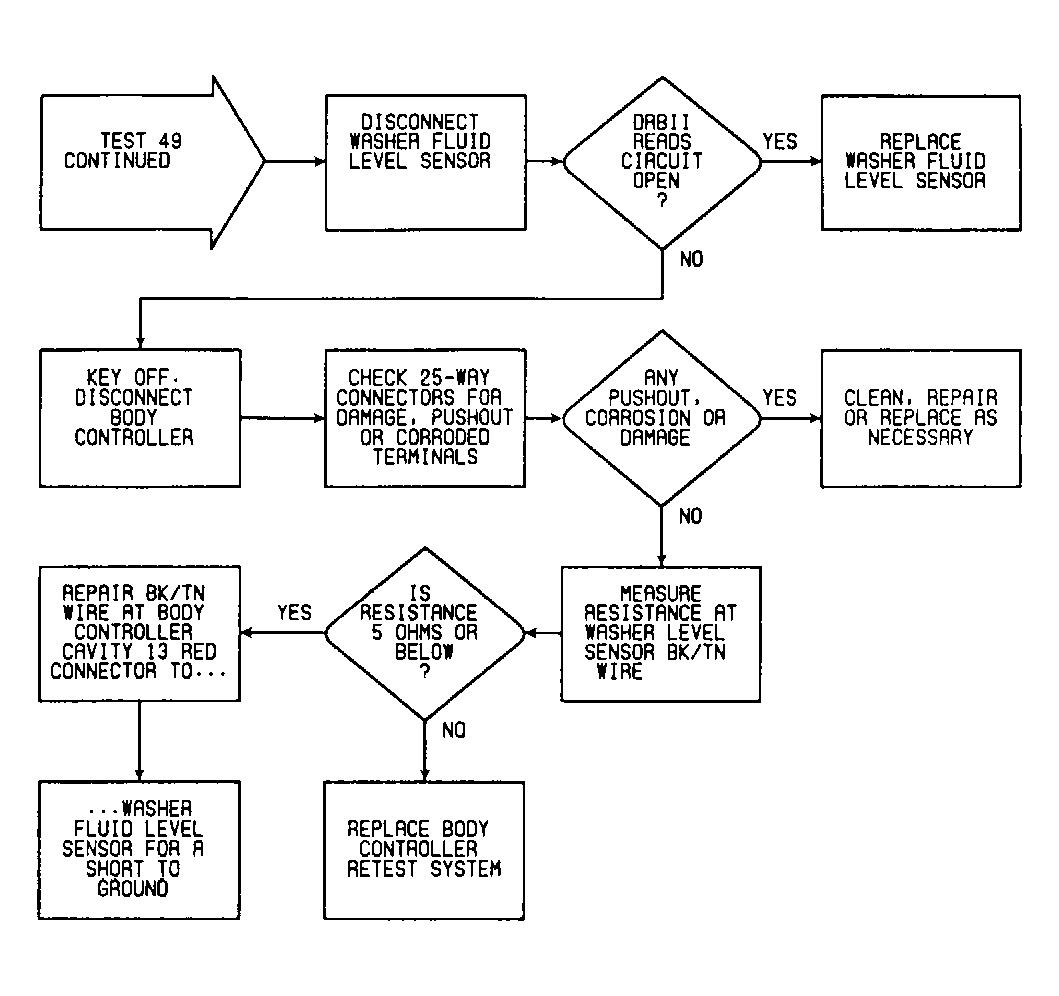

Fig 3: Test 49: Flow Chart (2 of 2)

G90A12302
