Test 42: Electronic Instrument Cluster Problems Not Covered By Fault Code

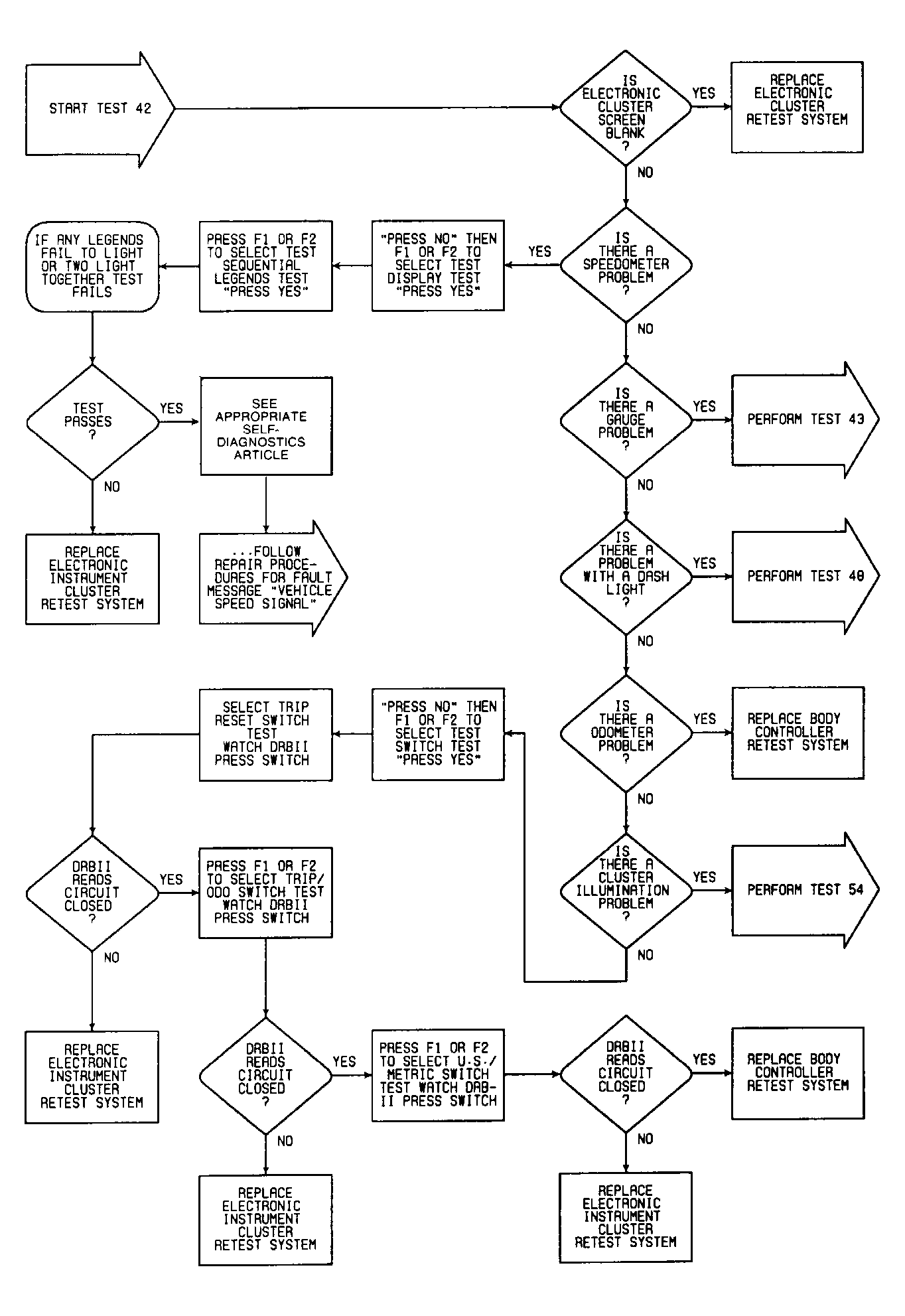

Fig 1: Test 42: Flow Chart

G90G12290
