Test 29: Trunk Ajar

Fig 1: Test 29: Circuit Diagram

G90G17216

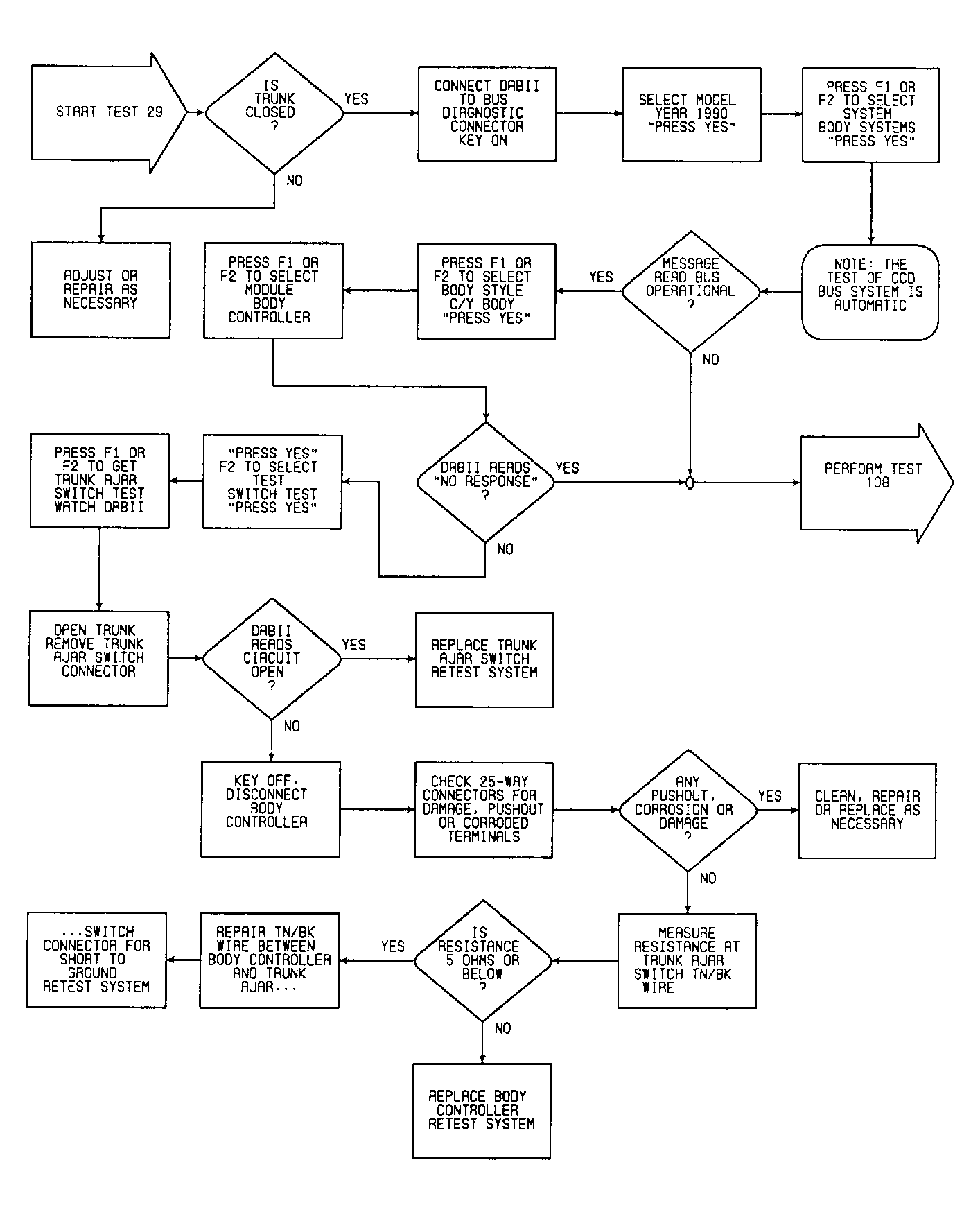

Fig 2: Test 29: Flow Chart

G90J12269
