Test 122: Repair Bus SYS For Not Receiving Bus Messages

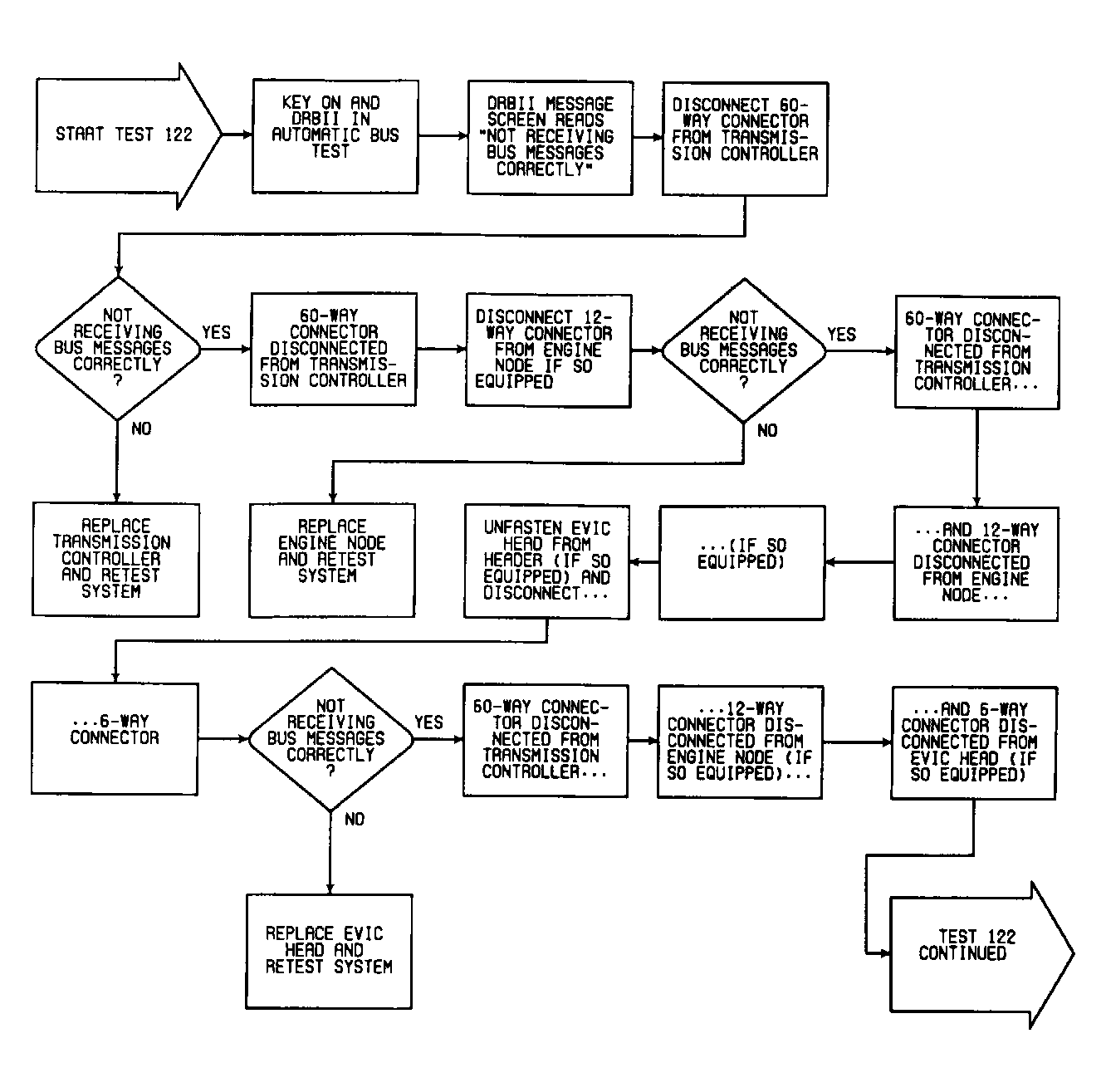

Fig 1: Test 122: Flow Chart (1 of 2)

G90A06200

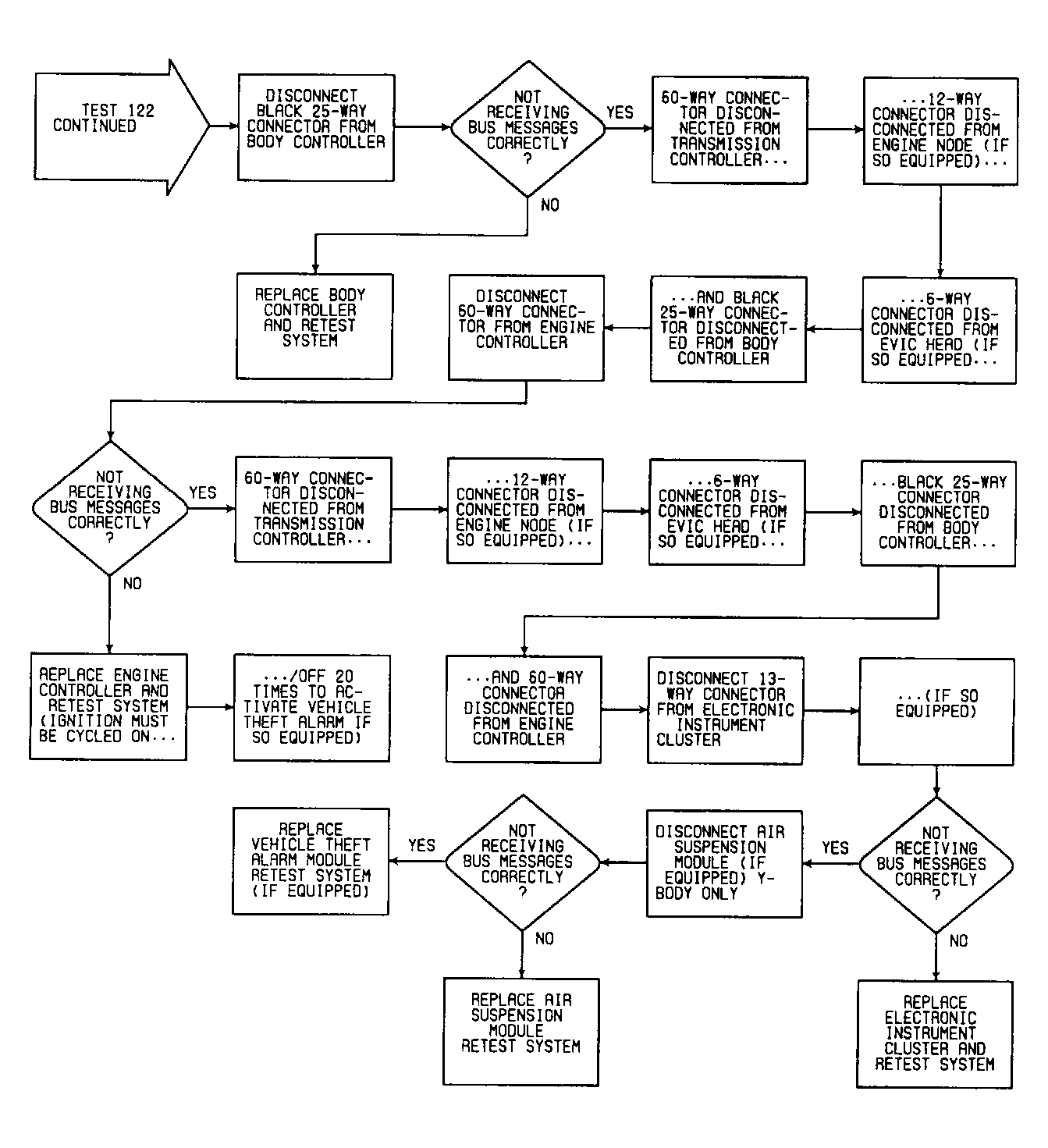

Fig 2: Test 122: Flow Chart (2 of 2)

G90C06201
