Test 121: Check For No Response From Eng Controller

Fig 1: Test 121: Circuit Diagram

G90J17250

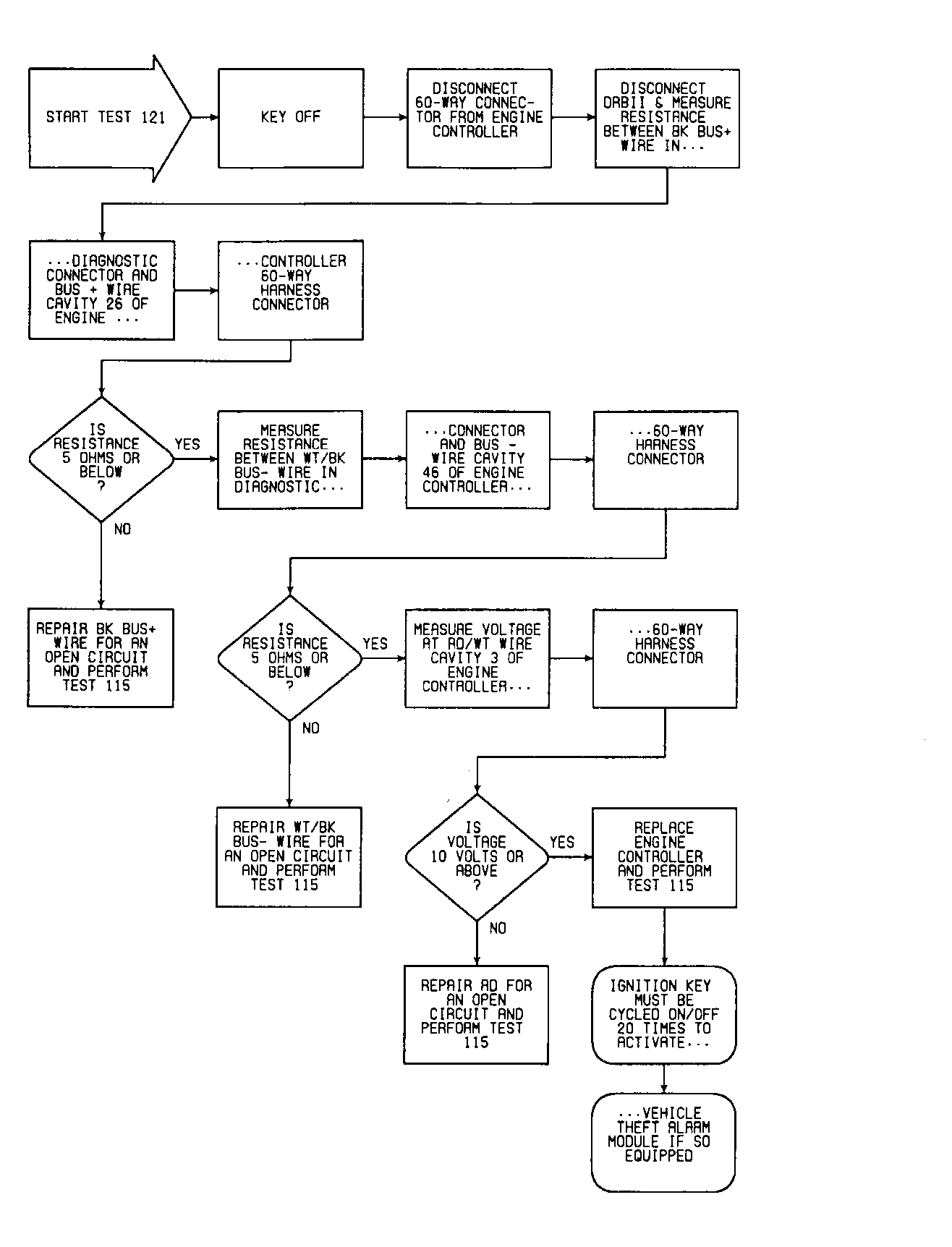

Fig 2: Test 121: Flow Chart

G90G06199
