Test 110: Checking CCD Bus Failure Messages Using DRB-II

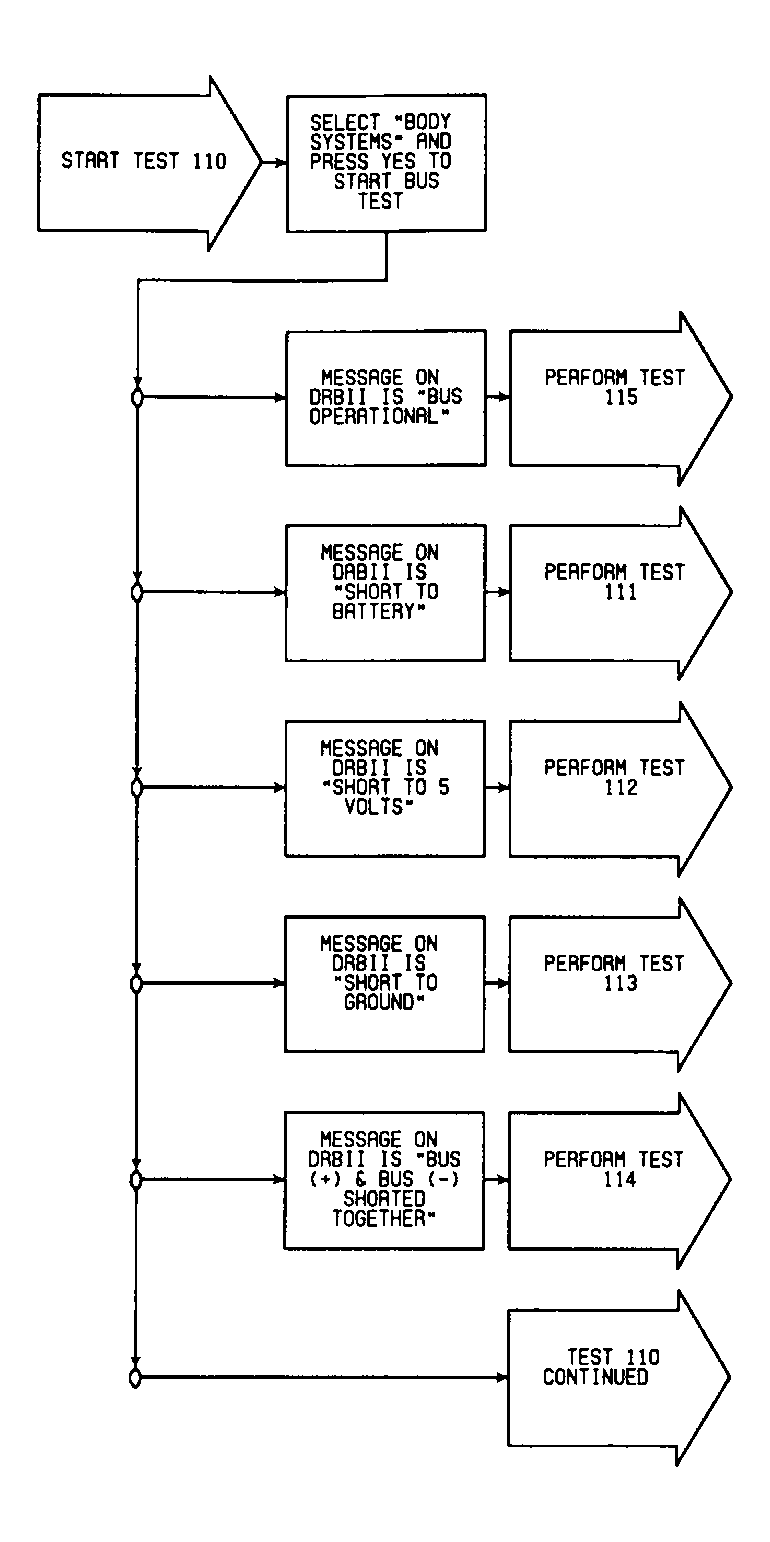

Fig 1: Test 110: Flow Chart (1 of 2)

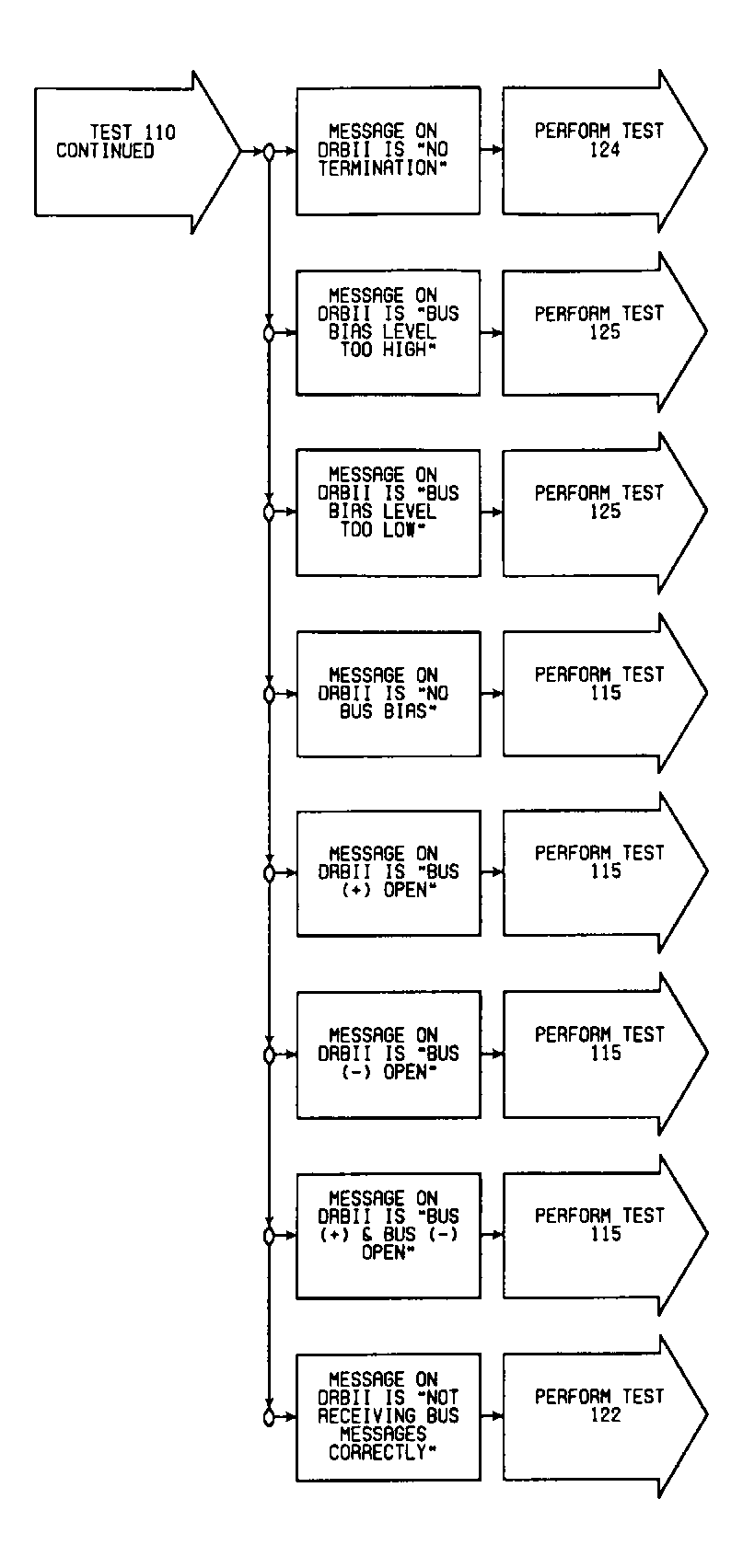

Fig 2: Test 110: Flow Chart (2 of 2)
