Dr2: Code 13 "Map Pneumatic Change"

Fig 1: DR2: Circuit Diagram

G90F16399

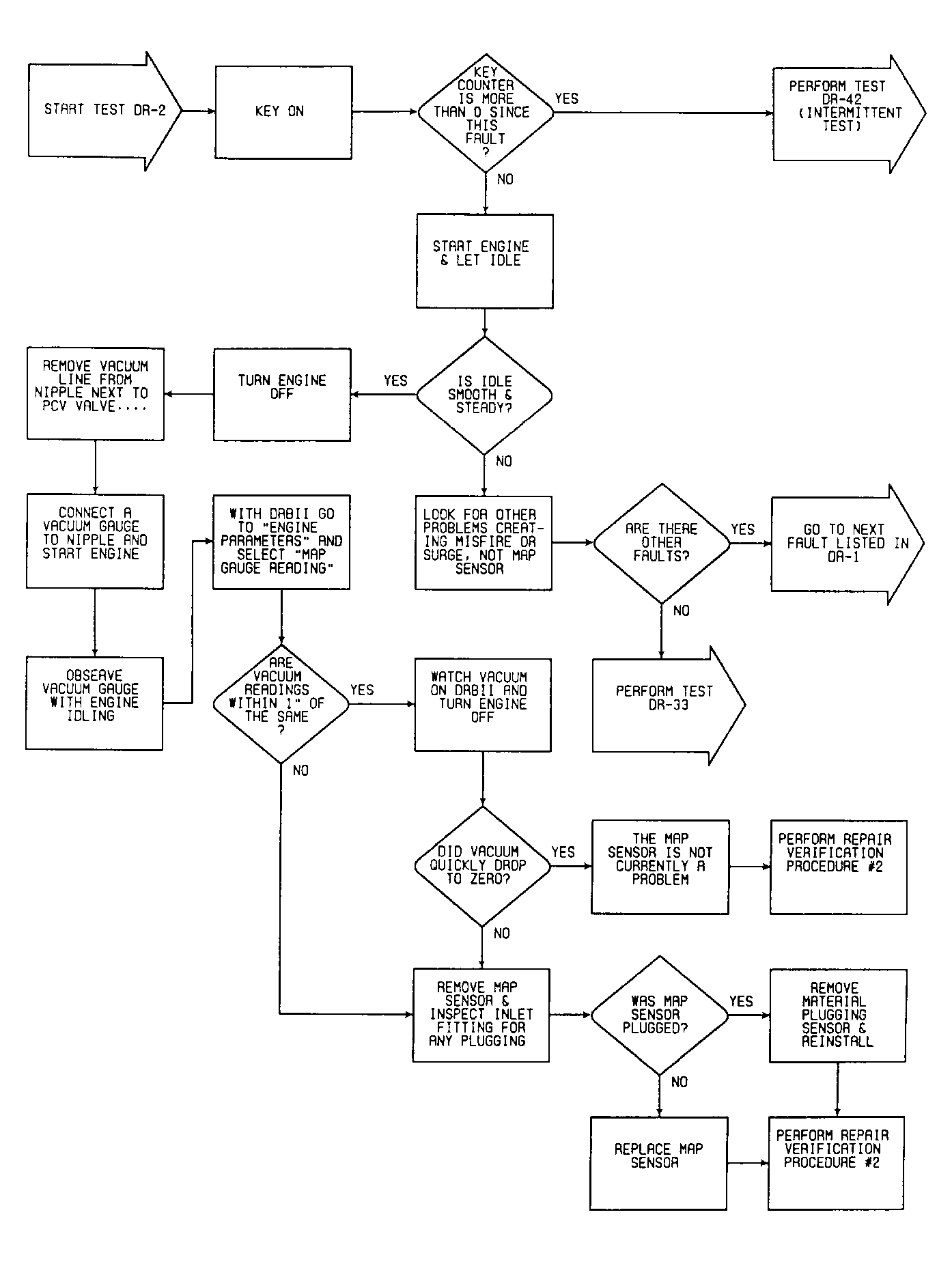

Fig 2: DR2: Flow Chart

G90G06905
