Dr1: Checking System For Faults

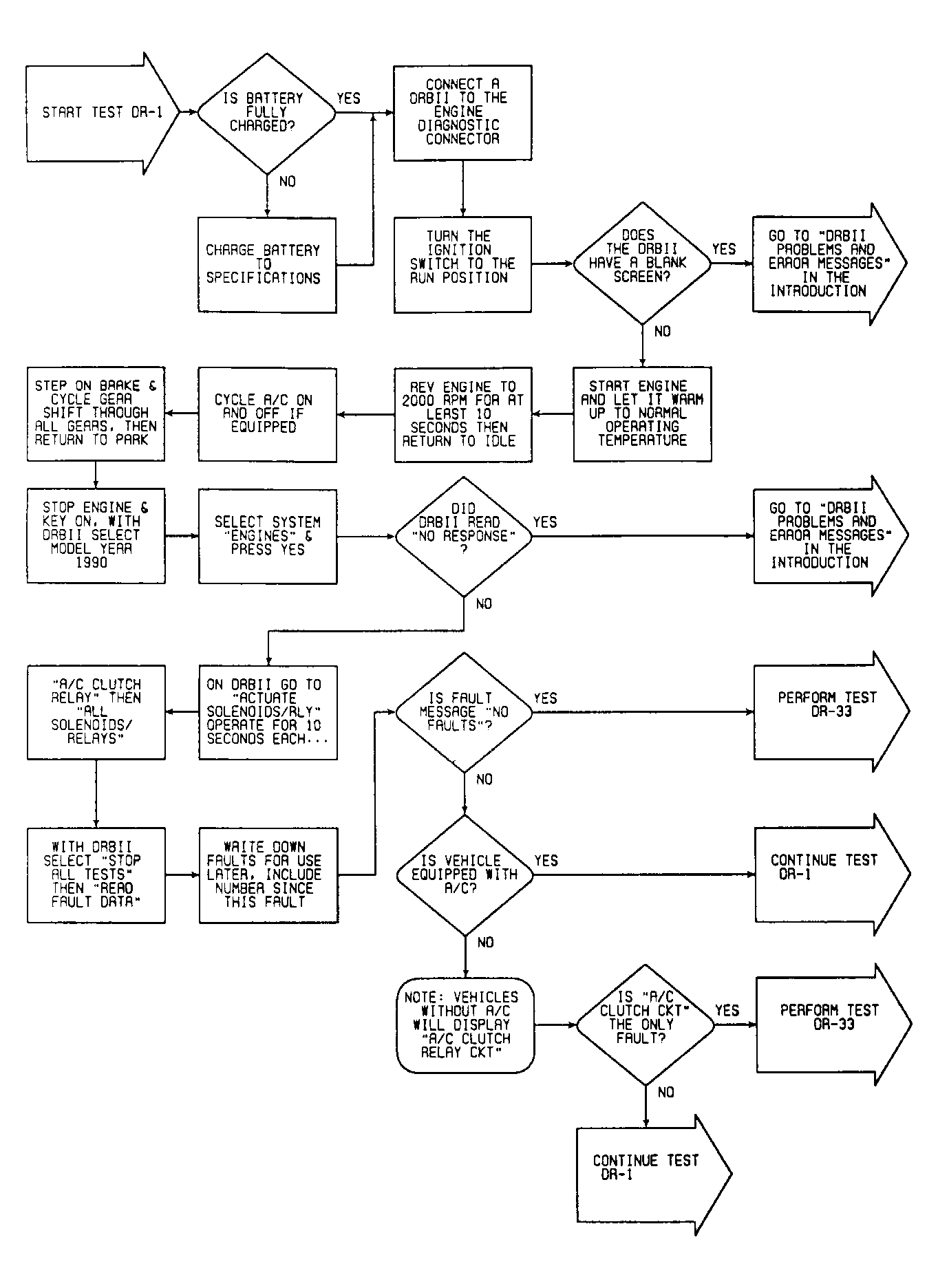

Fig 1: DR1: Flow Chart (1 of 4)

G90H06901

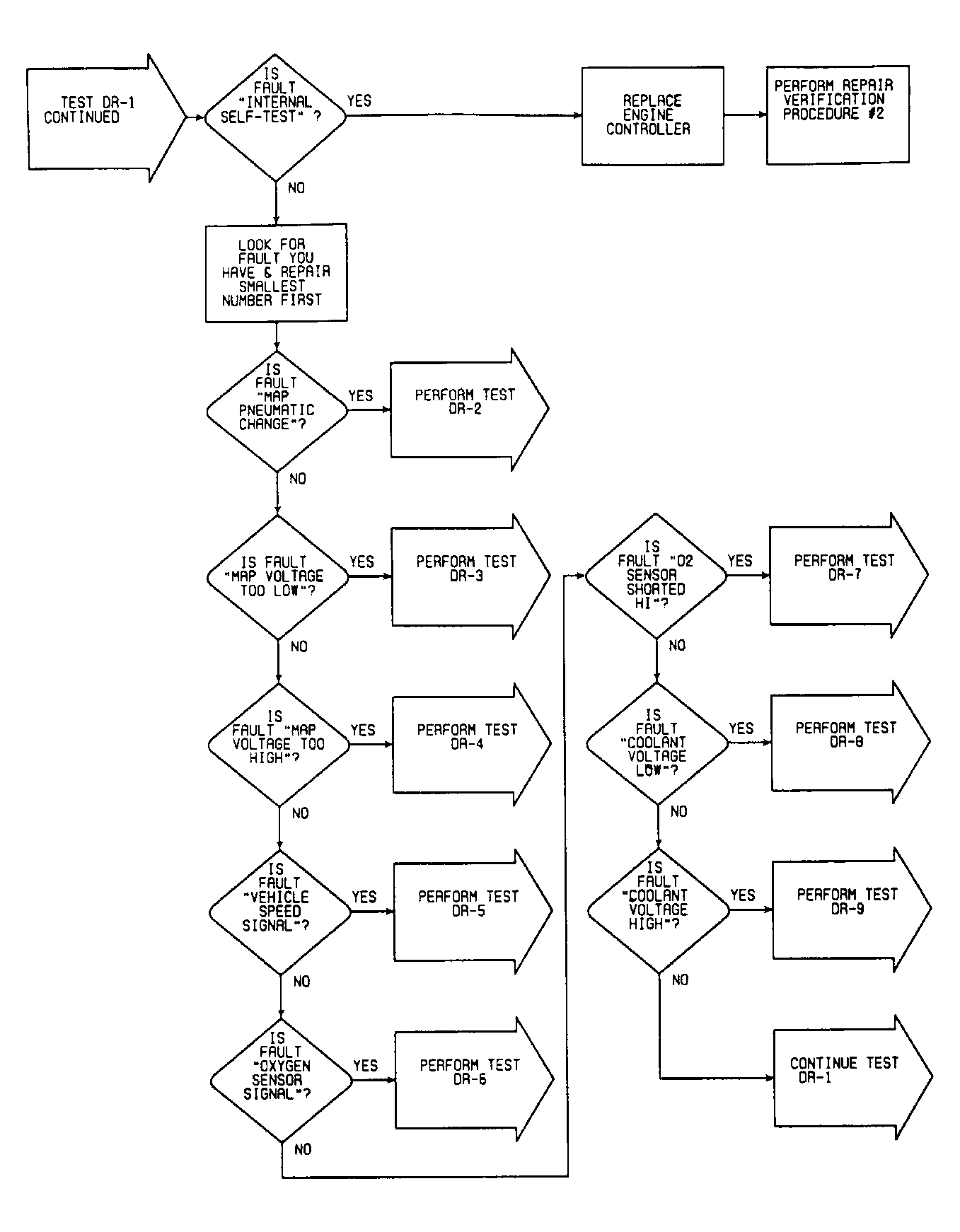

Fig 2: DR1: Flow Chart (2 of 4)

G90J06902

Fig 3: DR1: Flow Chart (3 of 4)

G90B06903

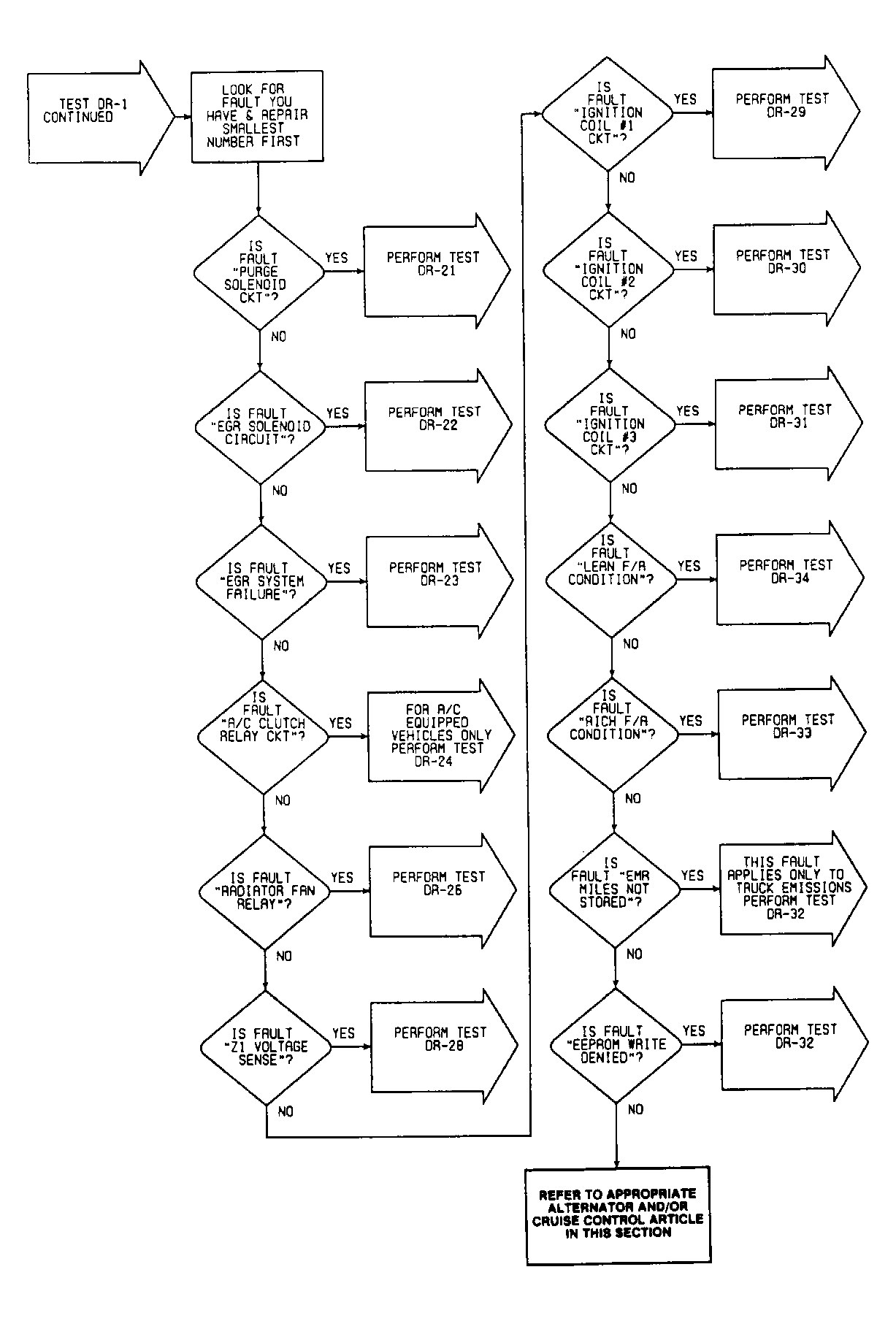

Fig 4: DR1: Flow Chart (4 of 4)

G90D06904
