Test 9A: RR Wheel Speed Sensor Fault

Fig 1: Test 9A - RR Wheel Speed Sensor Fault, Schematic

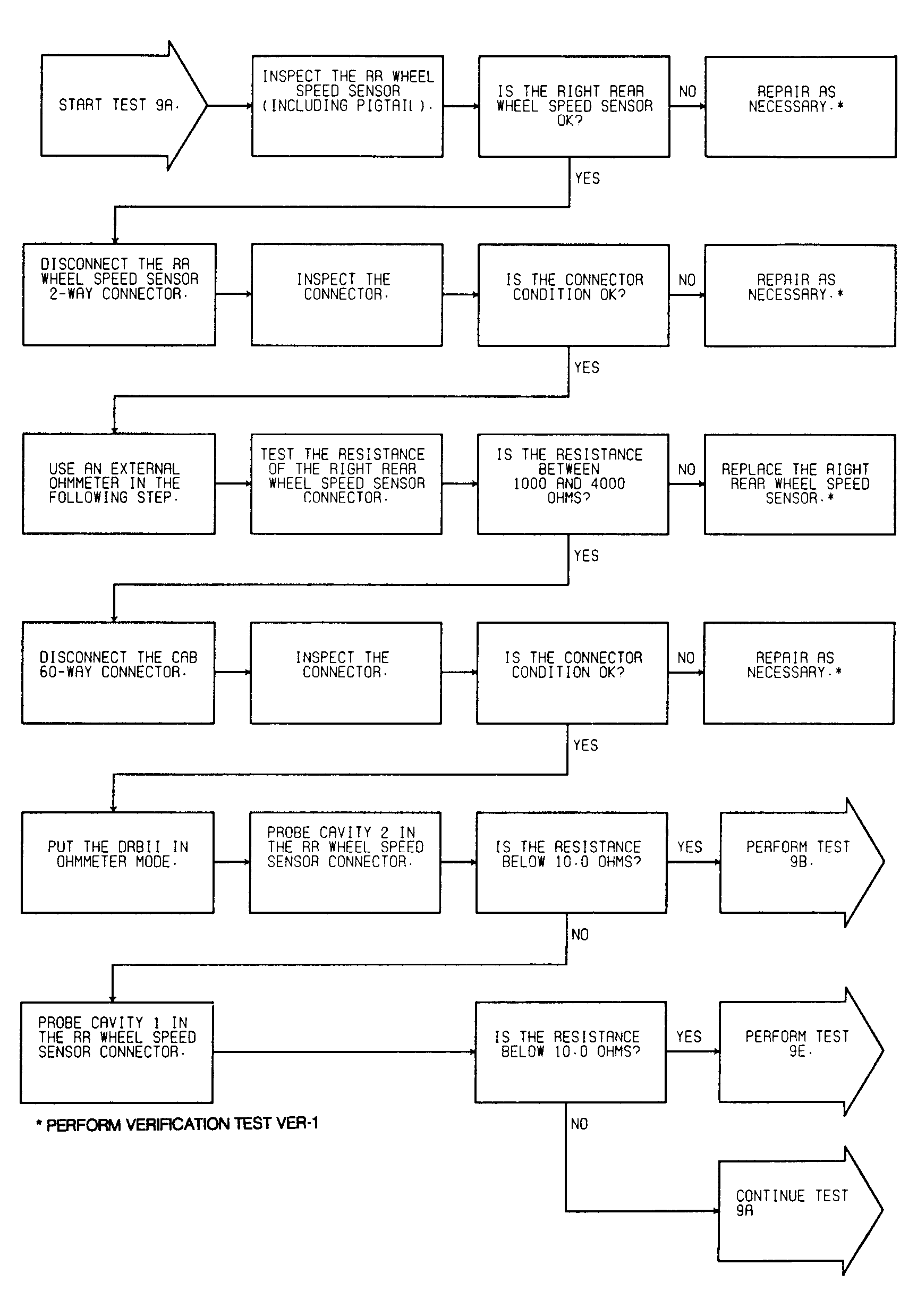

Fig 2: Test 9A - RR Wheel Speed Sensor Fault, Flow Chart

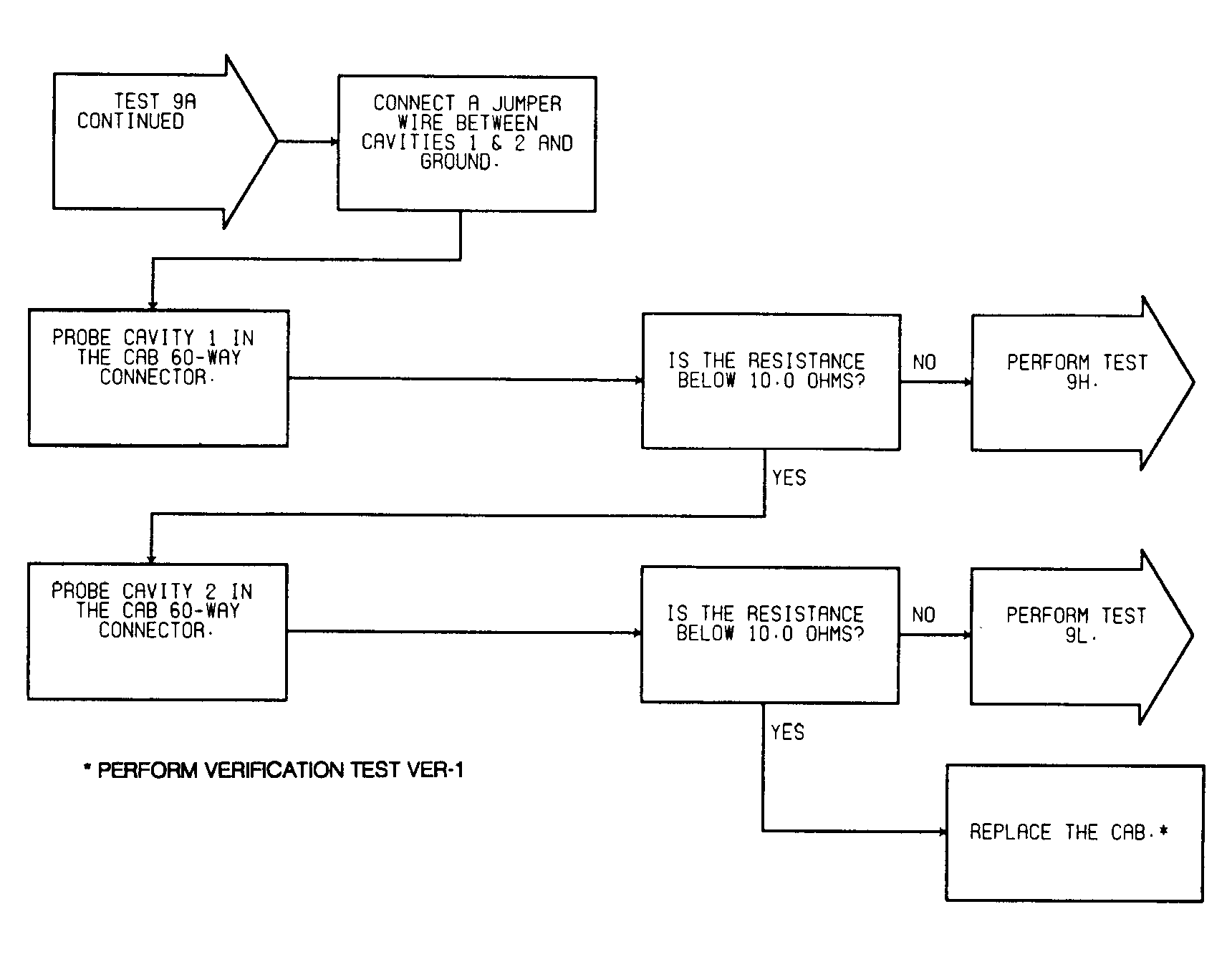

Fig 3: Test 9A - RR Wheel Speed Sensor Fault, Flow Chart
