Test 19A: Anti-Lock Light Relay Fault

Fig 1: Test 19A - ANTI-LOCK Light Relay Fault, Schematic

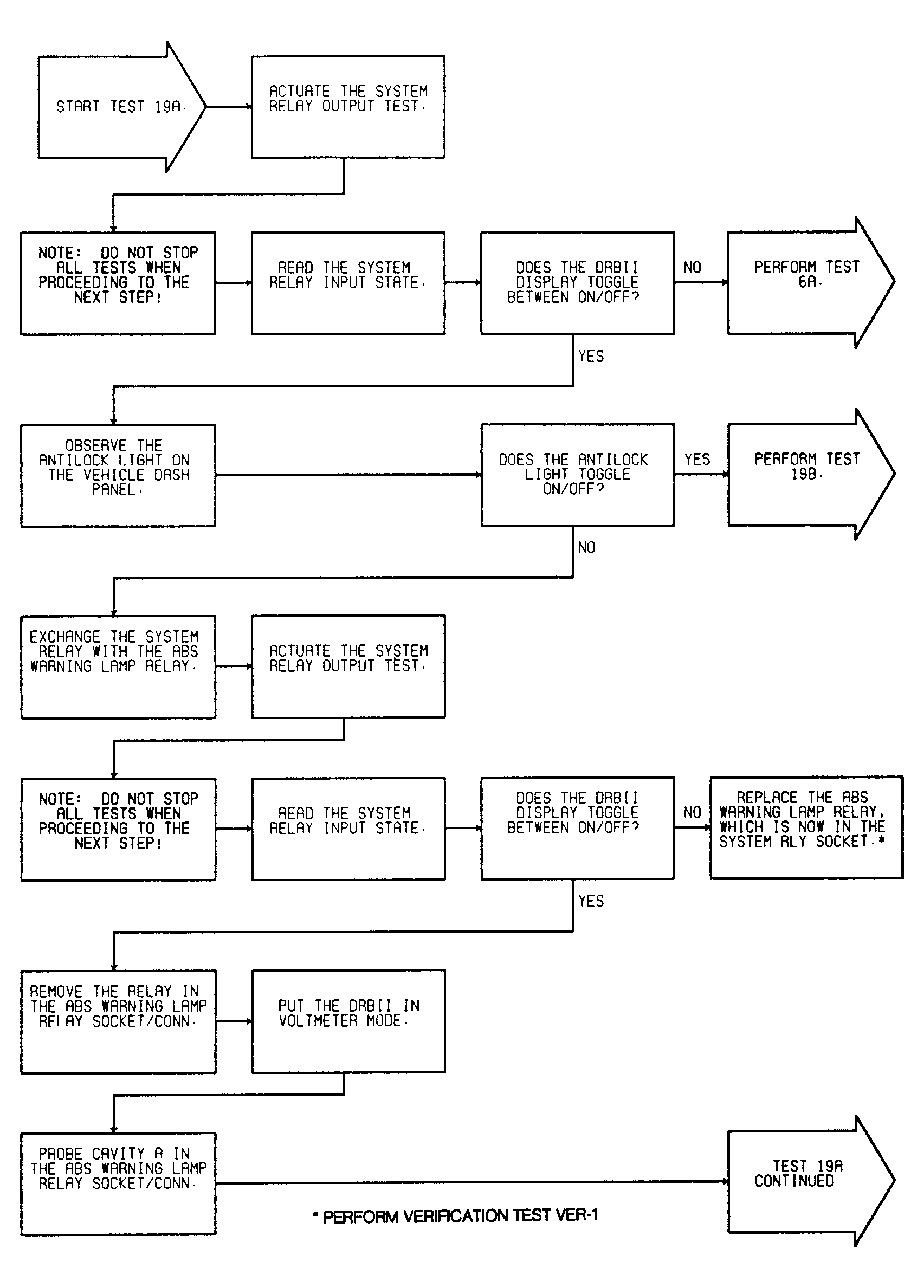

Fig 2: Test 19A - ANTI-LOCK Light Relay Fault, Flow Chart

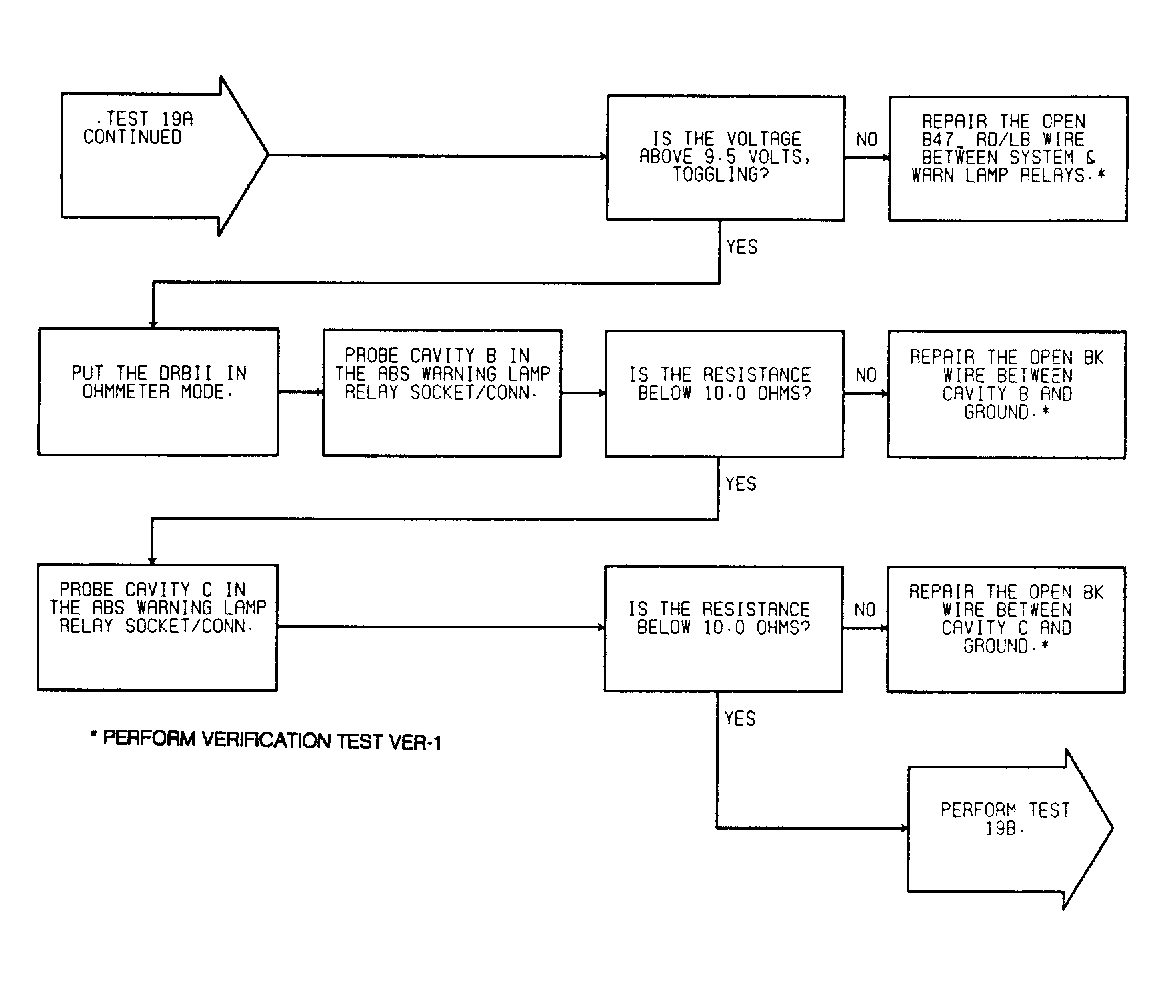

Fig 3: Test 19A - ANTI-LOCK Light Relay Fault, Flow Chart
