Home >> Chrysler >> 1990 >> Imperial >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Code Charts >> Test 18A: Anti-Lock Light Fault

Test 18A: Anti-Lock Light Fault

Fig 1: Test 18A - ANTI-LOCK Light Fault, Schematic

G91D09182

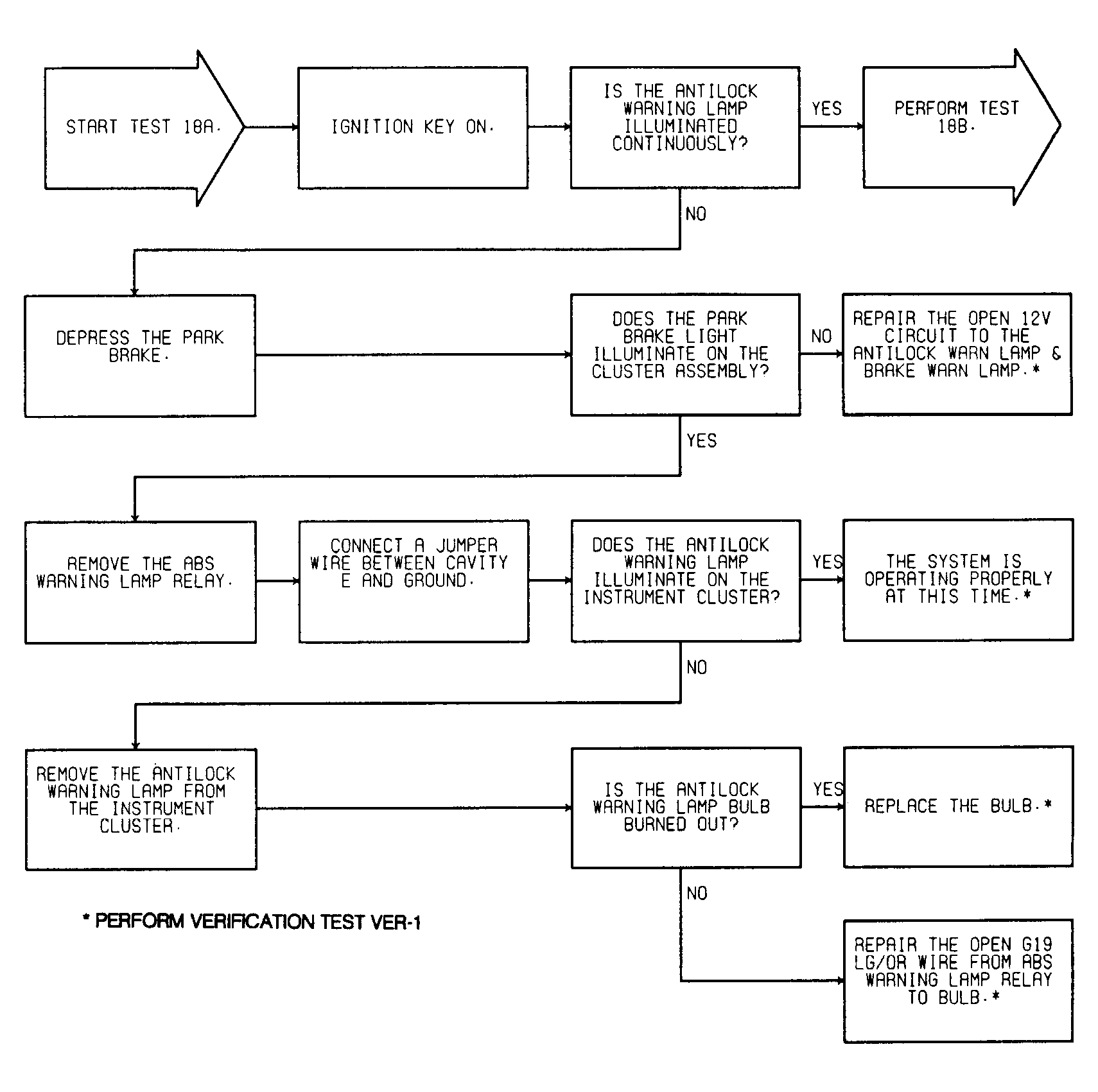

Fig 2: Test 18A - ANTI-LOCK Light Fault, Flow Chart

G91F10855
