Test 57: Diagnosing Vehicle Theft Alarm Module

Fig 1: Test 57: Circuit Diagram

G90B17237

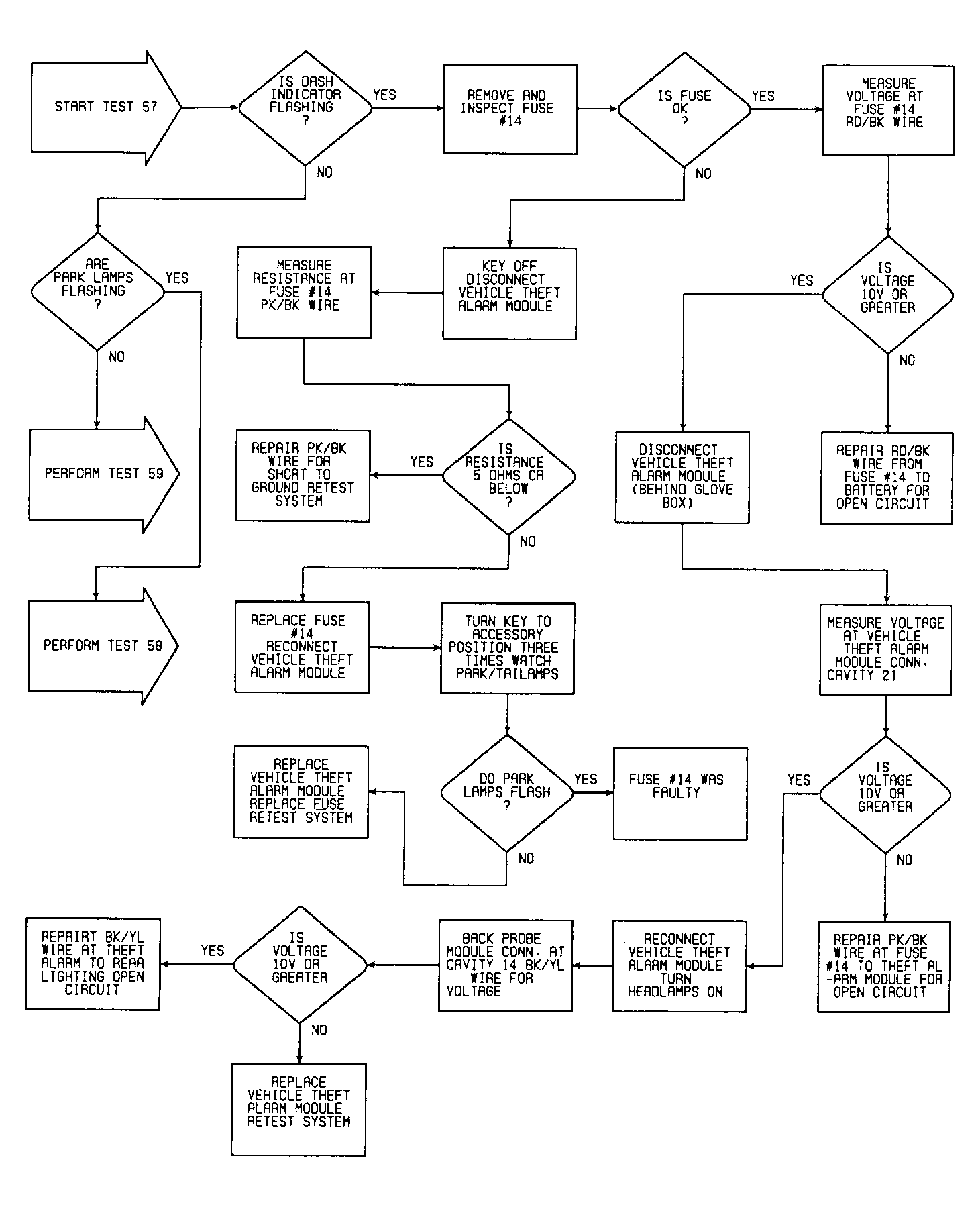

Fig 2: Test 57: Flow Chart

G90D12321
