Test 55: Diagnosing Vehicle Theft Alarm Module

Fig 1: Test 55: Circuit Diagram

G90A17236

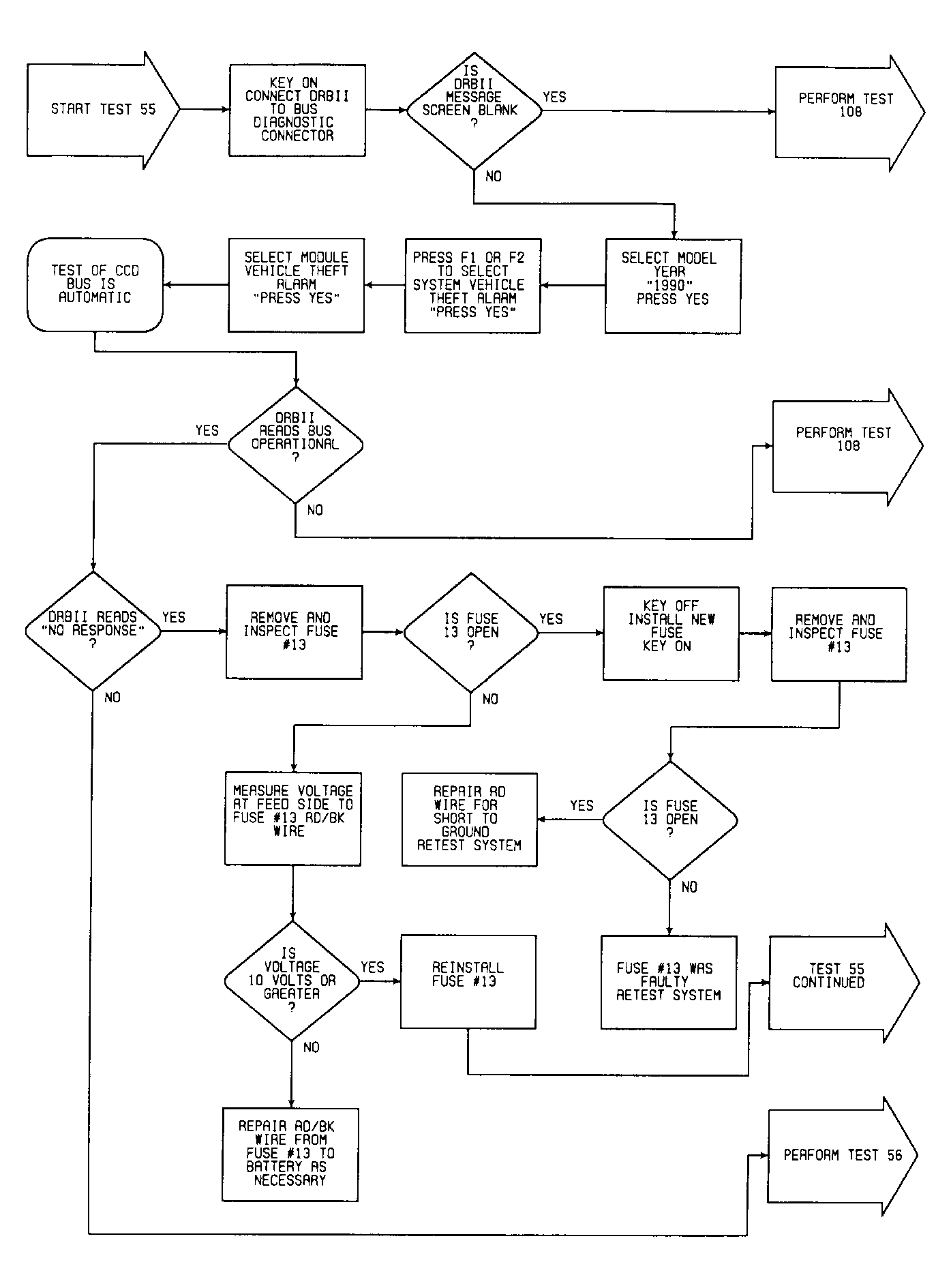

Fig 2: Test 55: Flow Chart (1 of 2)

G90F12315

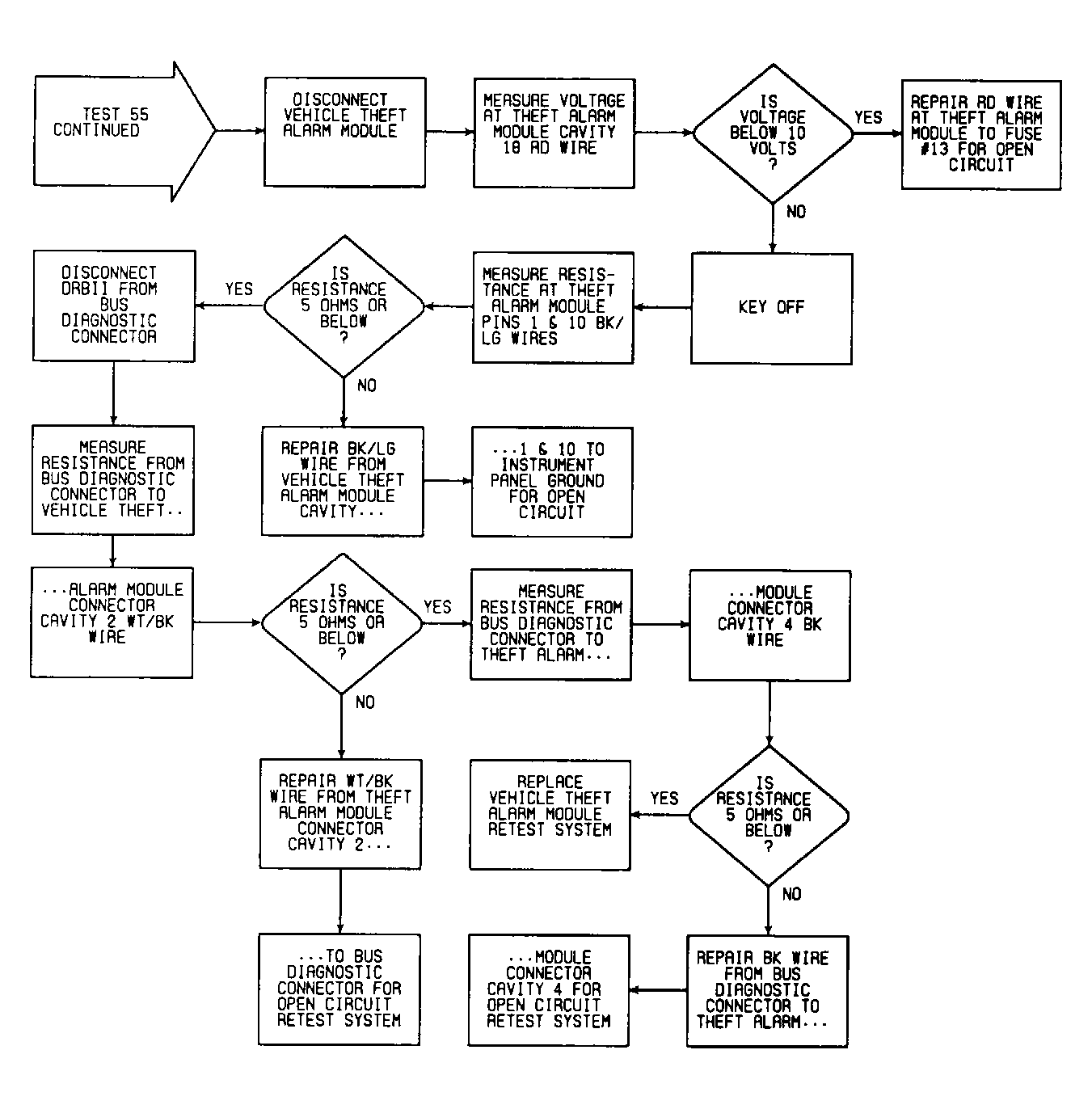

Fig 3: Test 55: Flow Chart (2 of 2)

G90G12316
