Test 123: Check Eng Controller For Open Bus Message

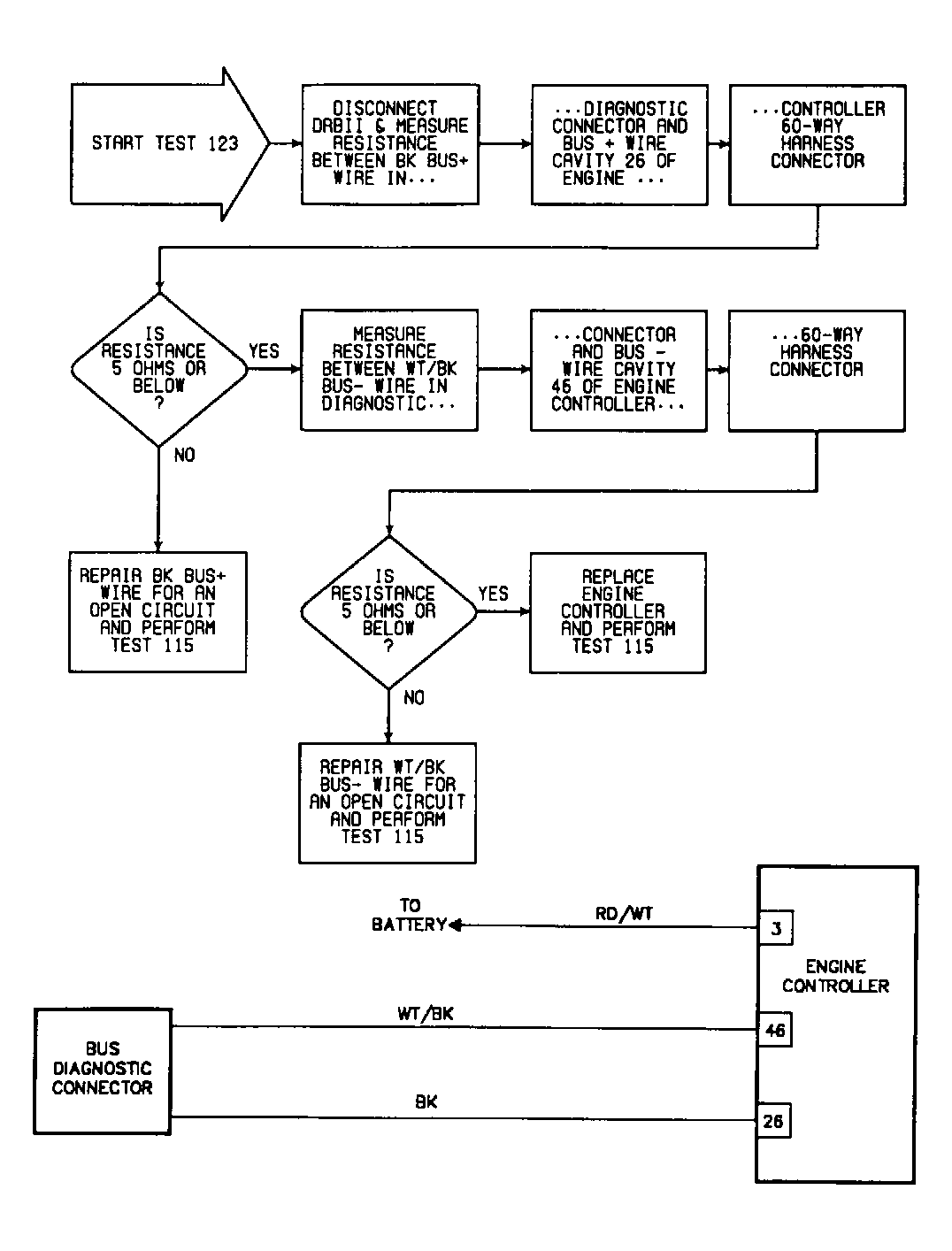

Fig 1: Test 123: Circuit Diagram & Flow Chart

G90E06202
