Test 111: Repair Bus System For Short To Battery

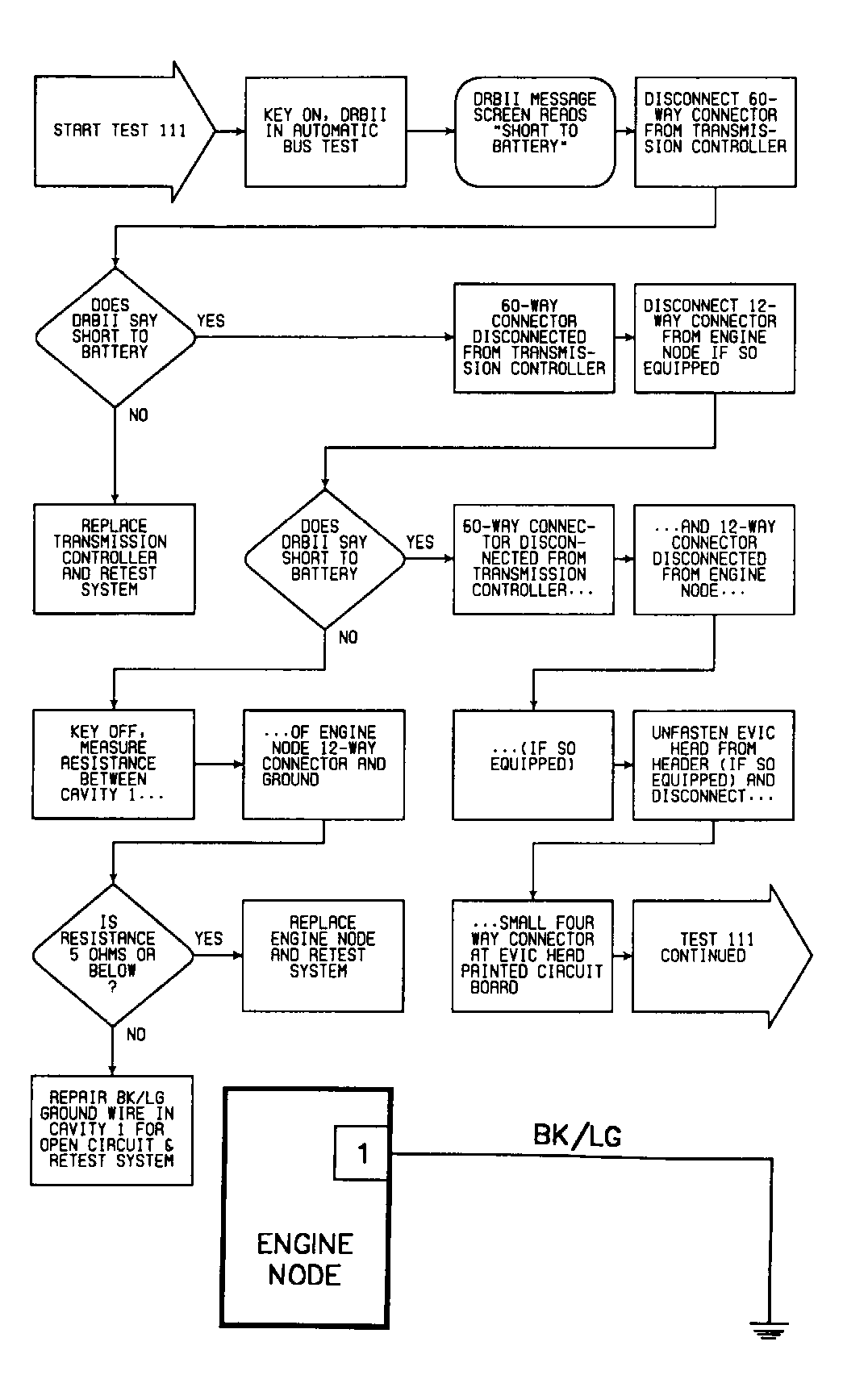

Fig 1: Test 111: Circuit Diagram & Flow Chart (1 of 4)

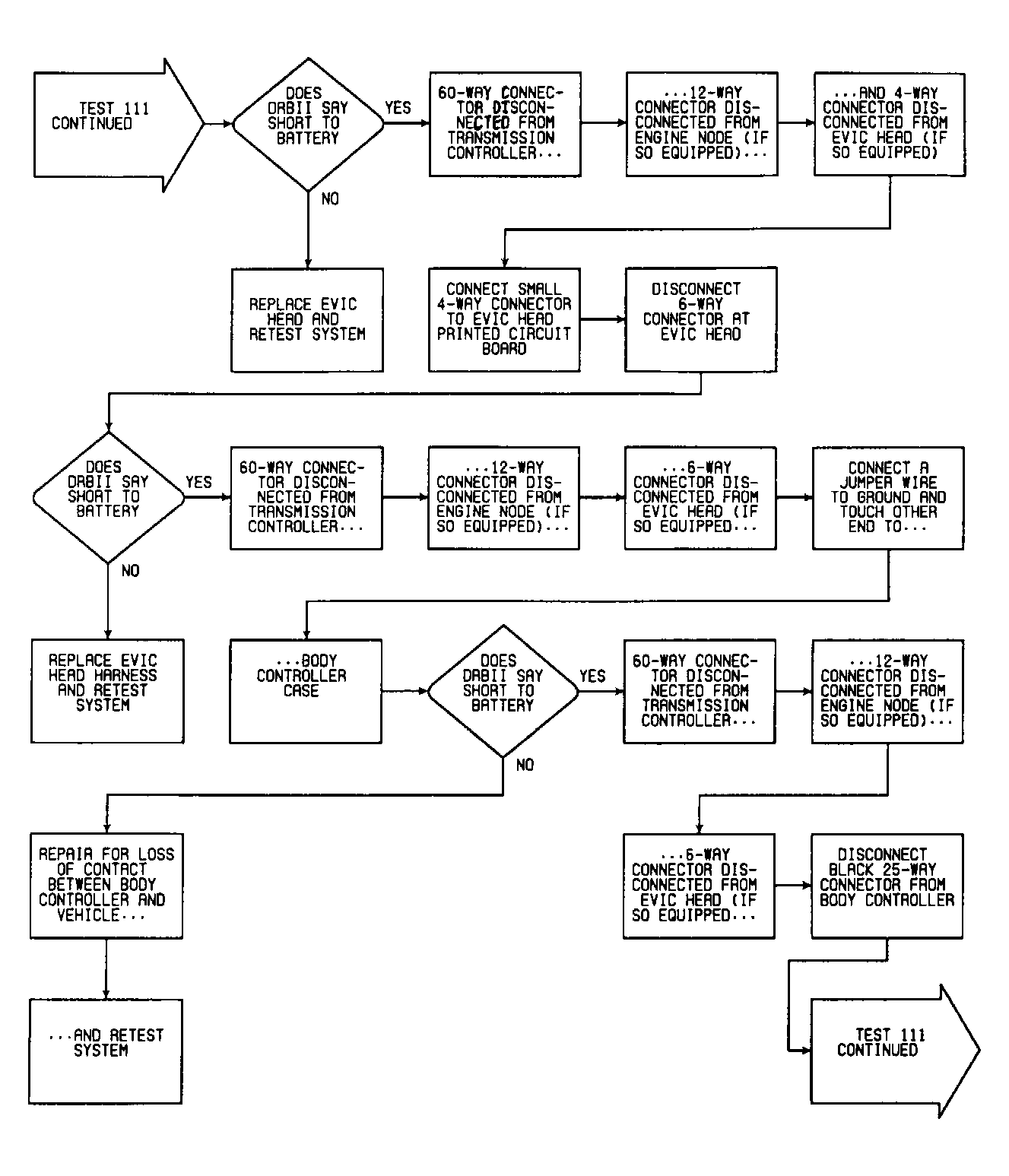

Fig 2: Test 111: Flow Chart (2 of 4)

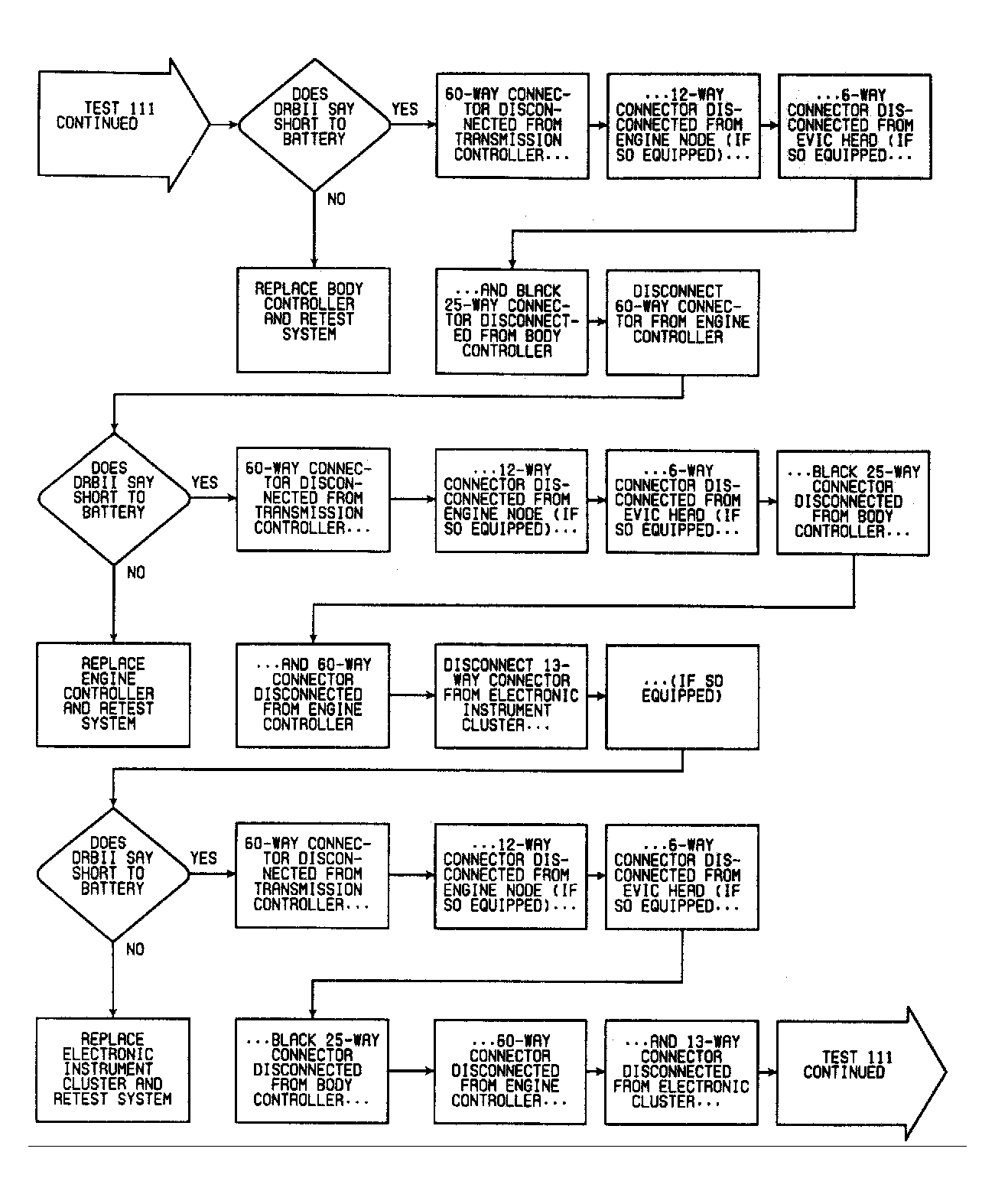

Fig 3: Test 111: Flow Chart (3 of 4)

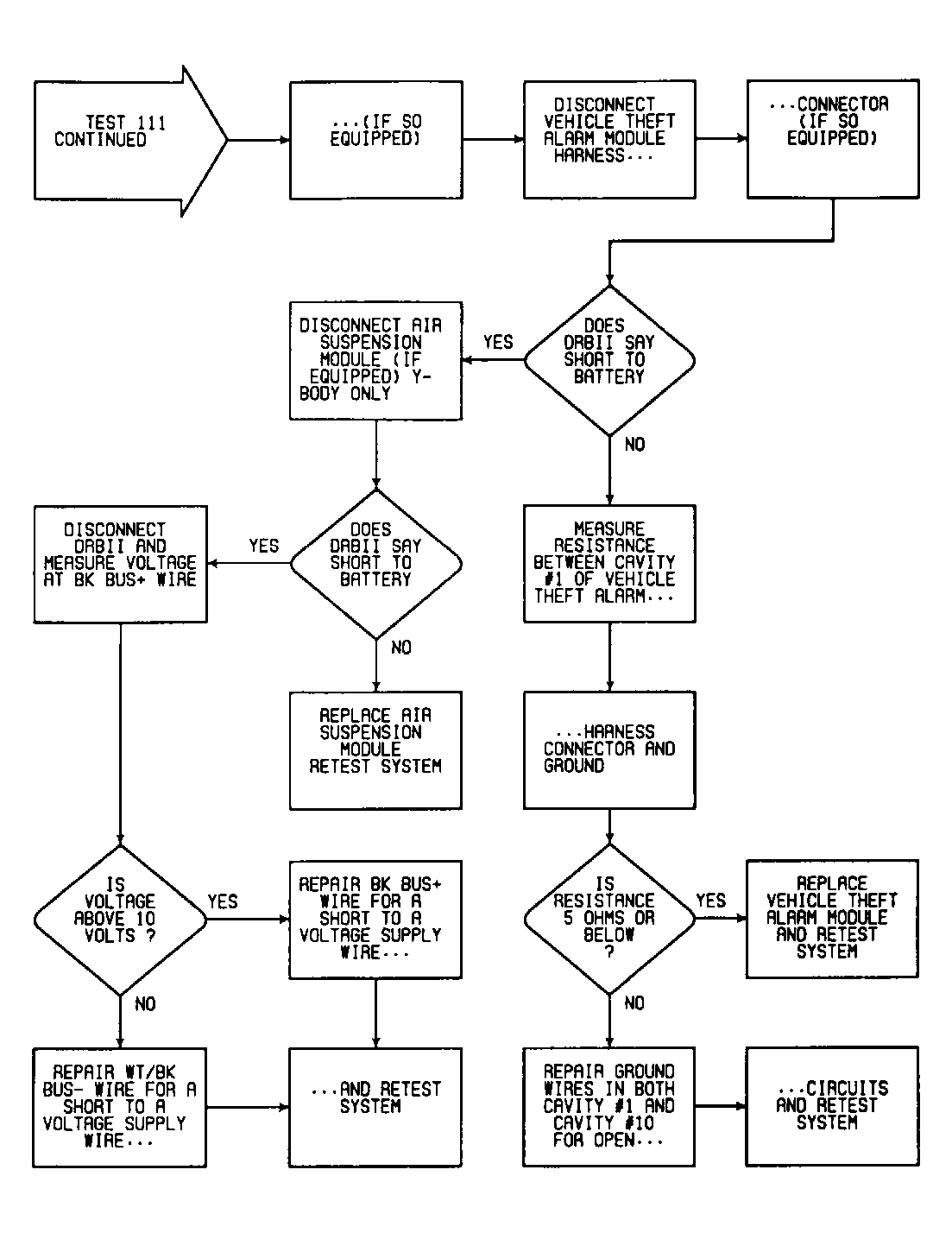

Fig 4: Test 111: Flow Chart (4 of 4)
