Dr-2 - Checking A/C Push Button Switch Input

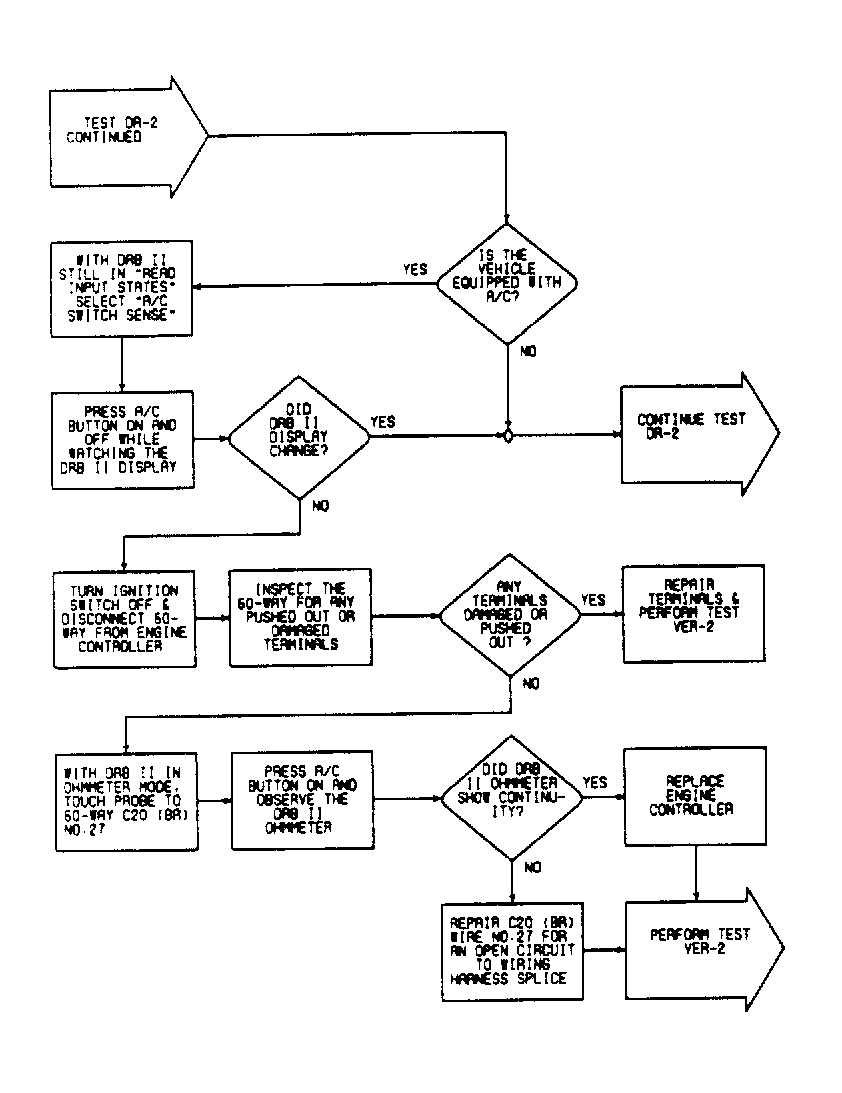

Fig 1: DR-2 - Checking A/C Push Button Switch Input

G107519
