Wiring Diagrams

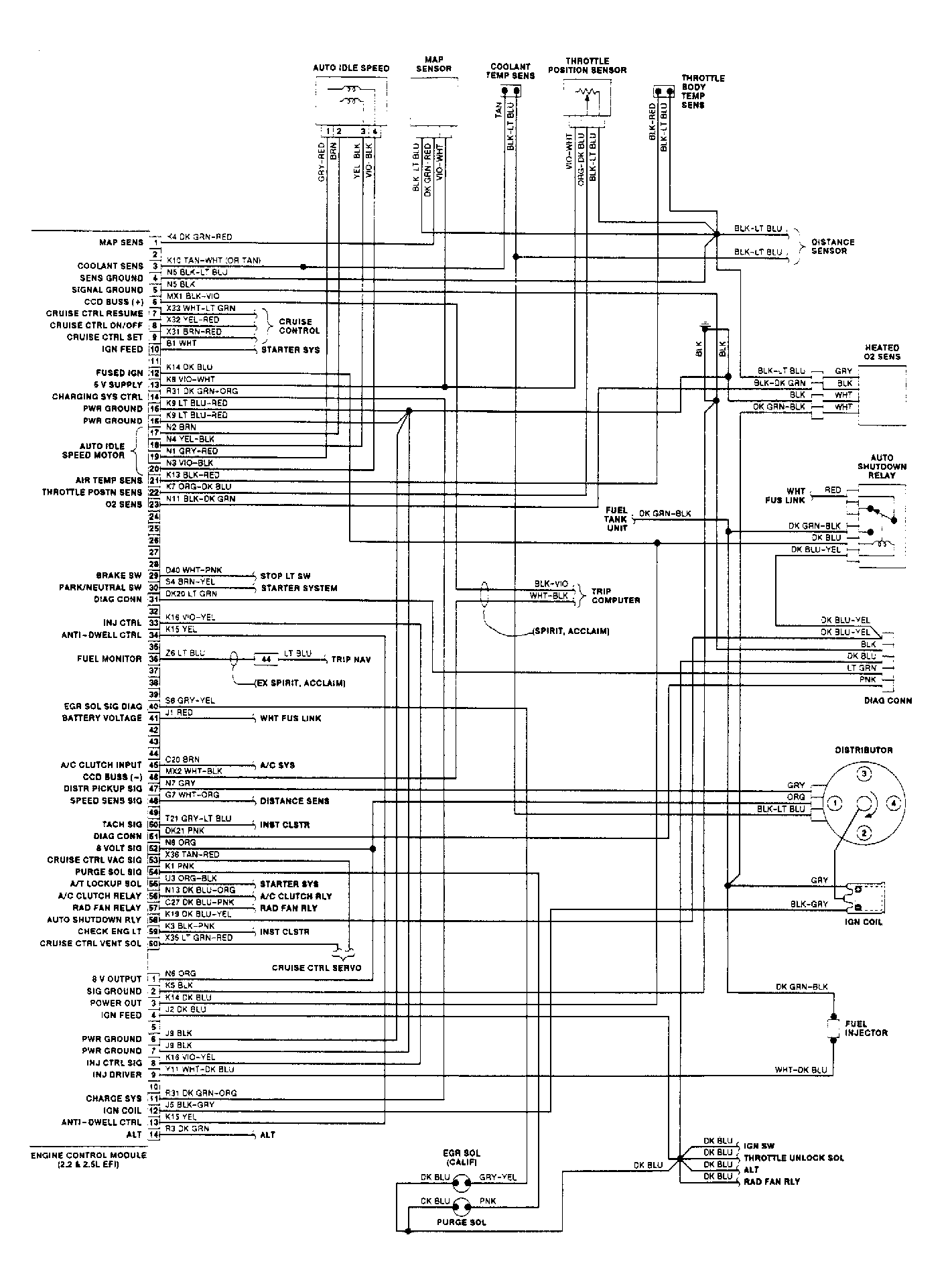

Fig 1: Acclaim, Daytona, Lancer, LeBaron, Shadow, Spirit & Sundance 2.2L & 2.5L Wiring Diagram
G107318

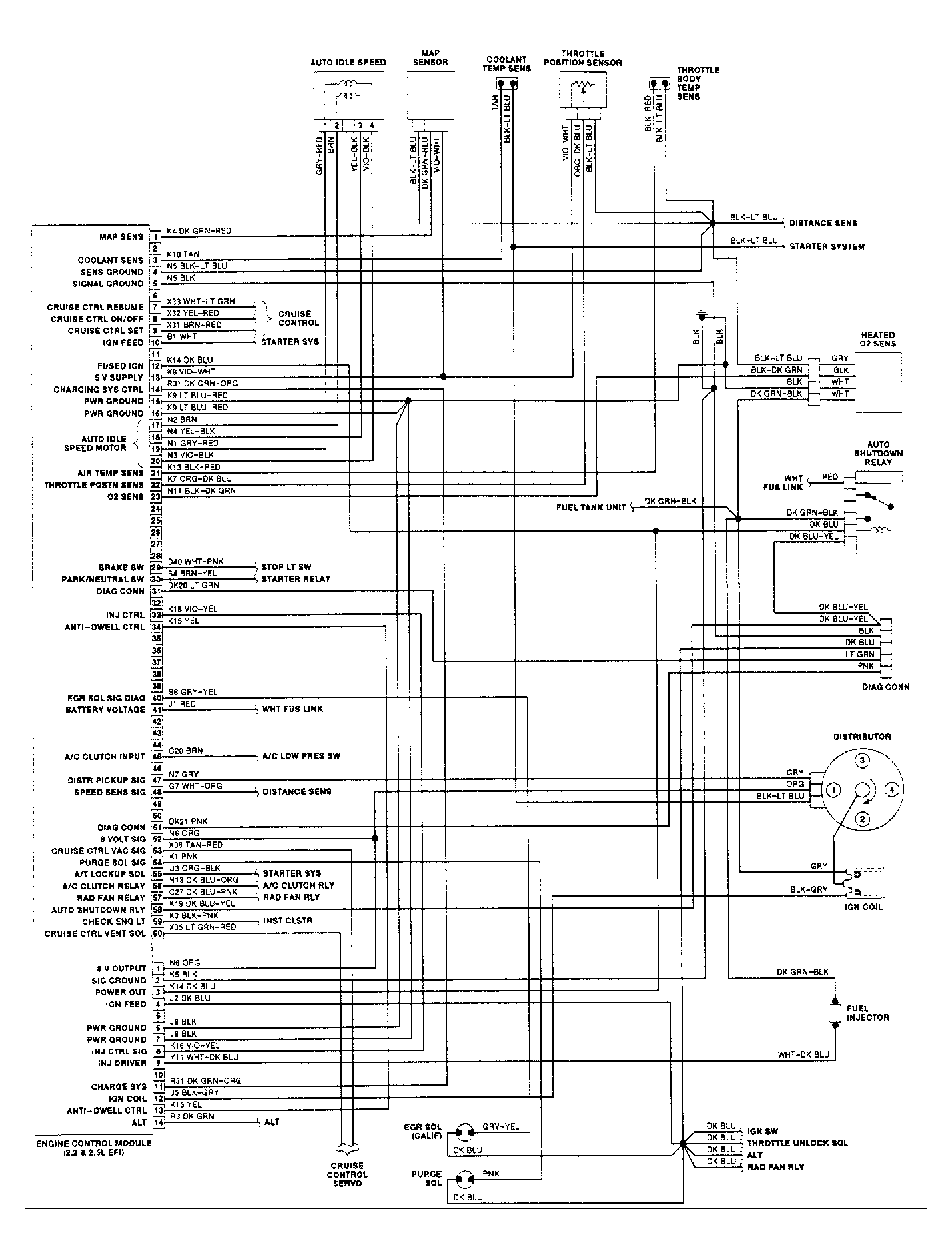

Fig 2: Aries & Reliant 2.2L & 2.5L Wiring Diagram
G107319

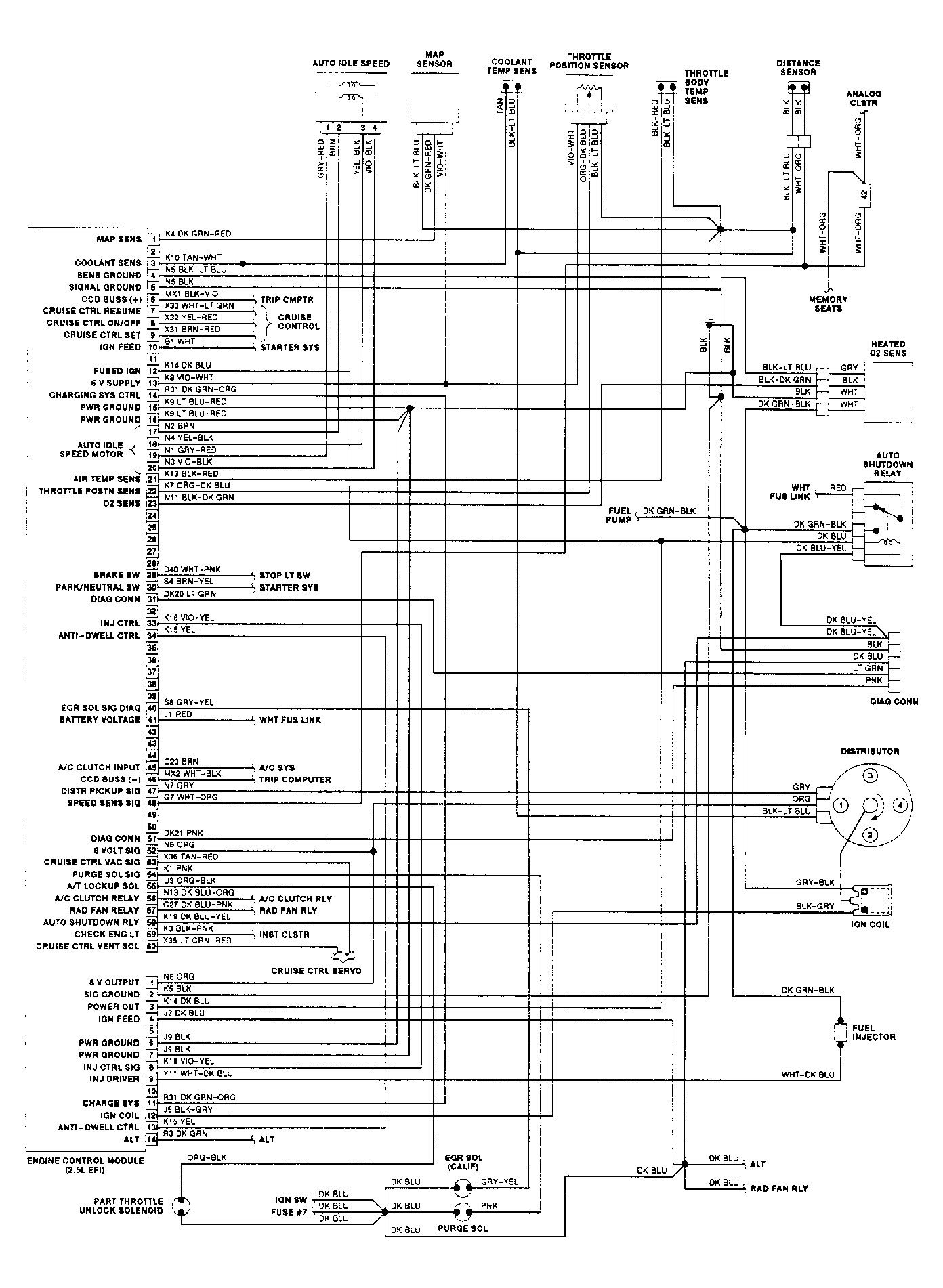

Fig 3: Dynasty 2.5L Wiring Diagram
G107320

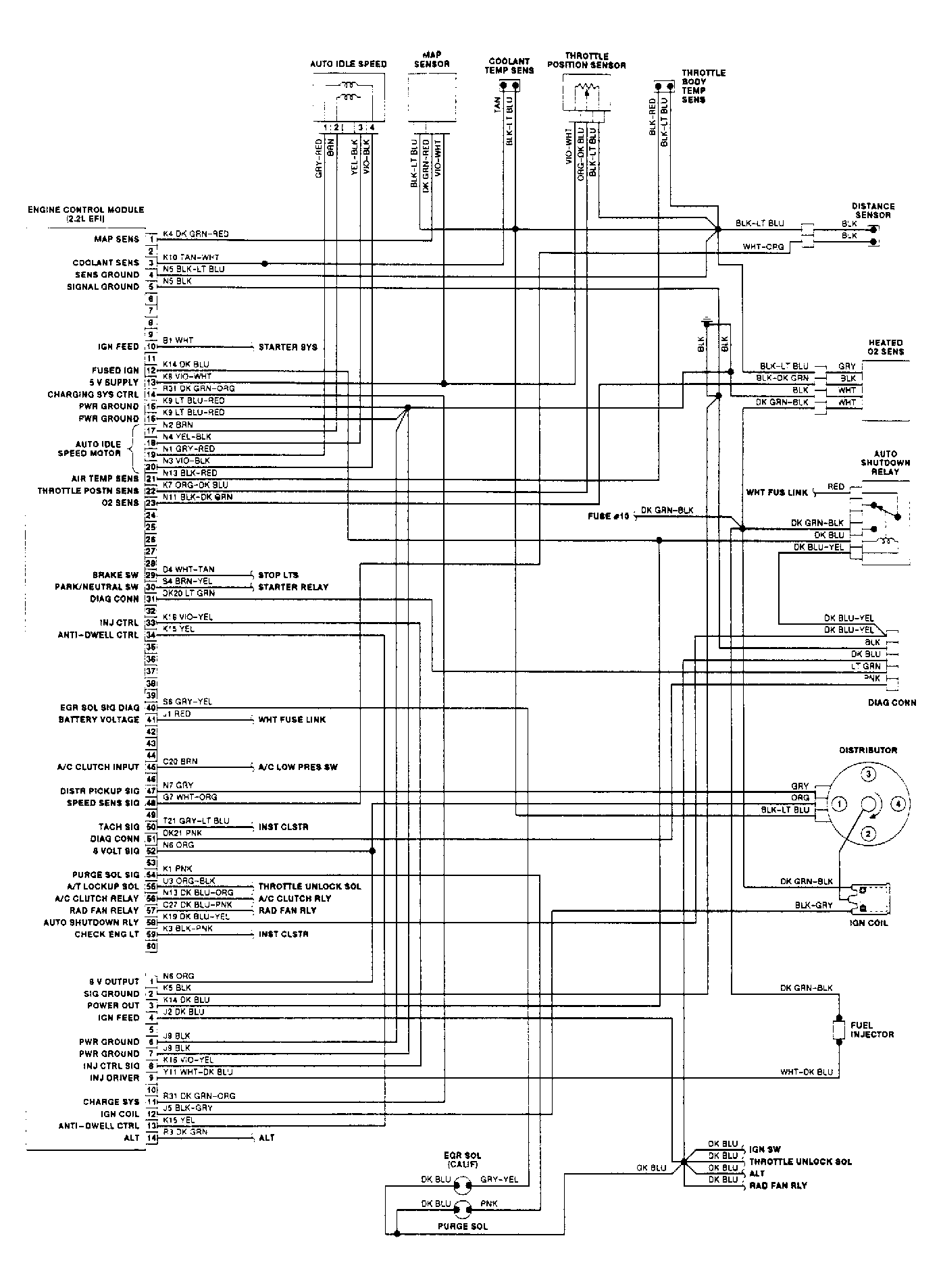

Fig 4: Horizon & Omni 2.2L Wiring Diagram
G107321
