VER-1, DRIVEABILITY Verification

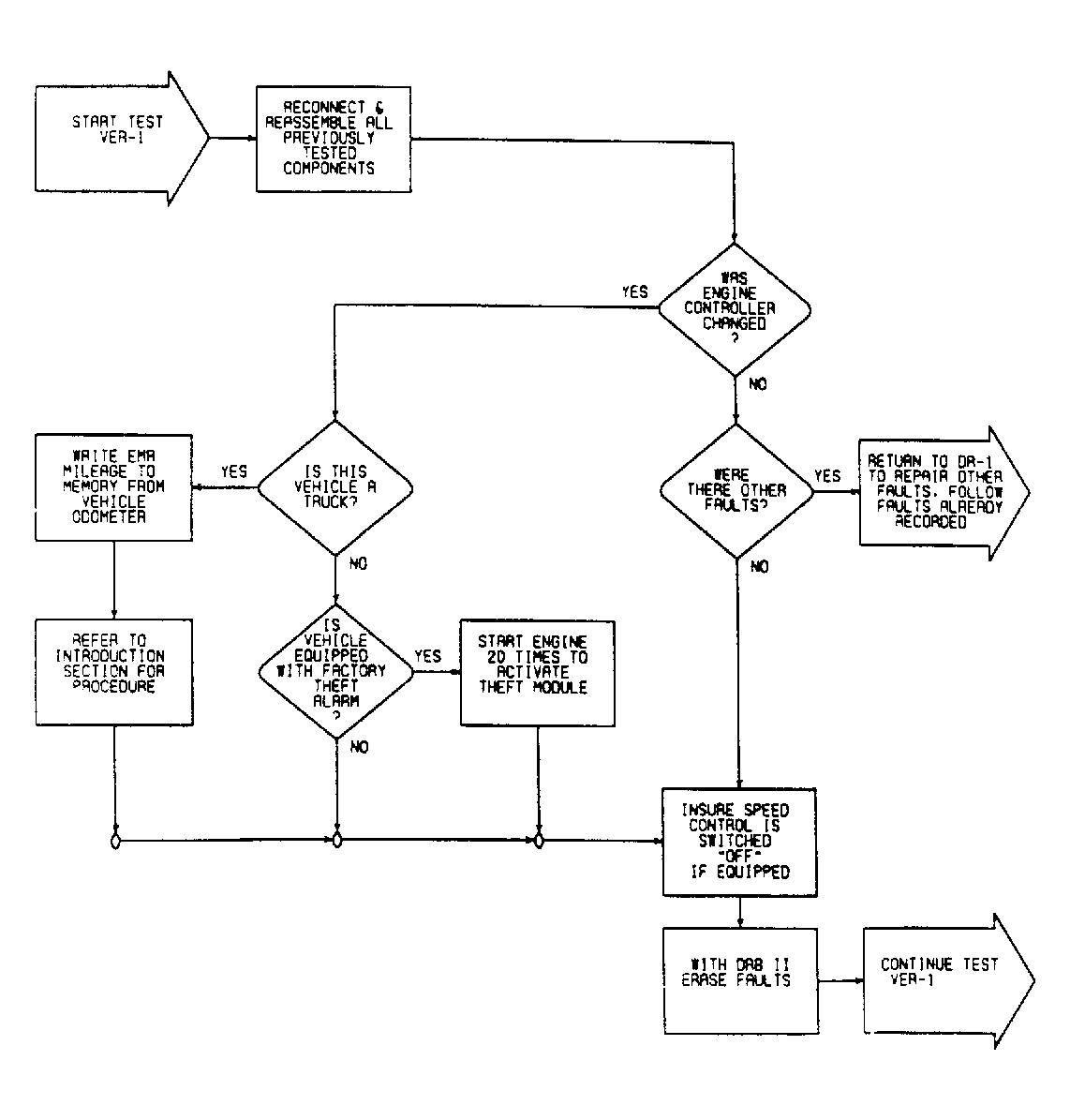

Fig 1: VER-1, Driveability Verification (1 of 2)
G107290

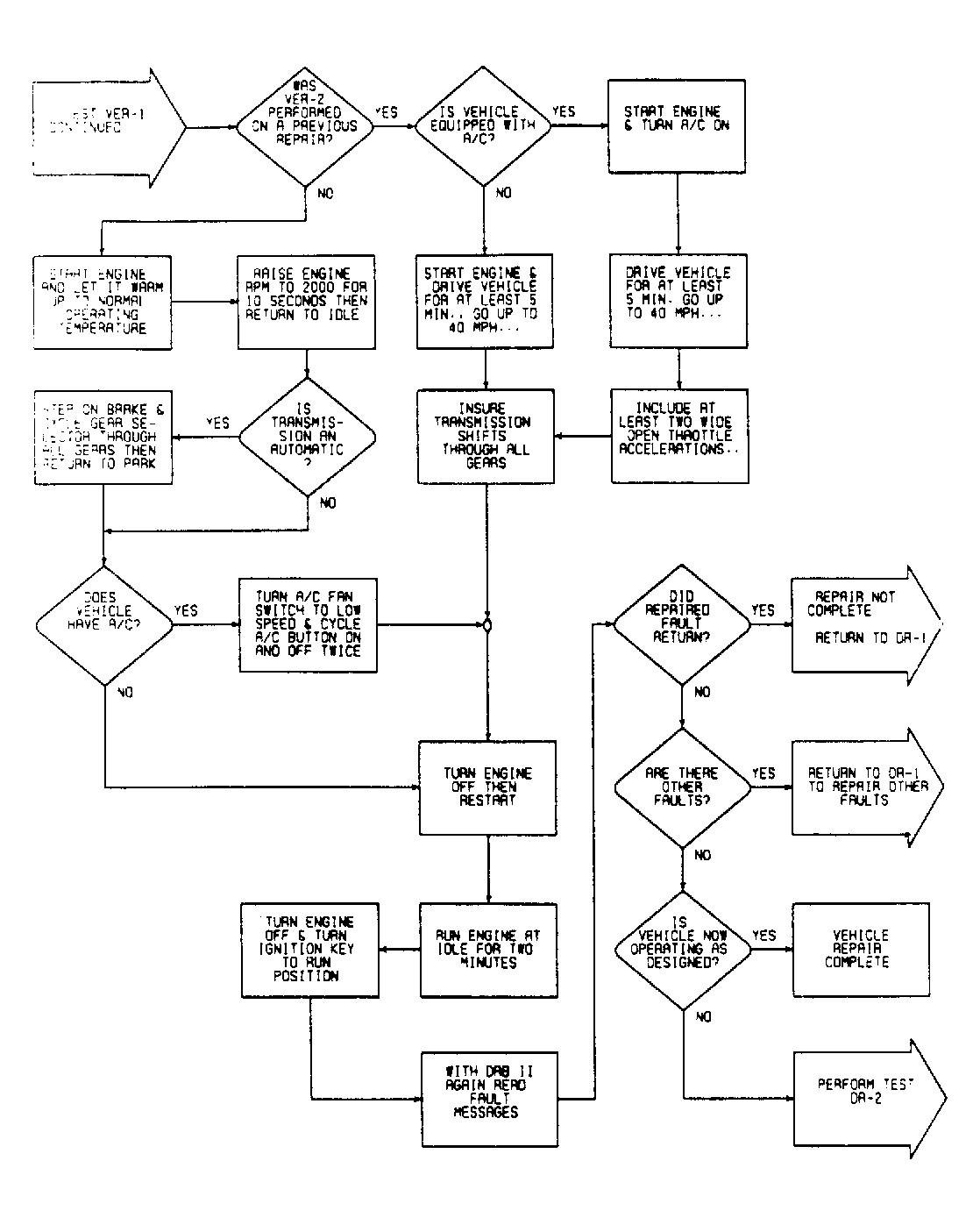

Fig 2: VER-1, Driveability Verification (2 of 2)
G107291
