Dr-33, Checking Basic Timing & Fuel System

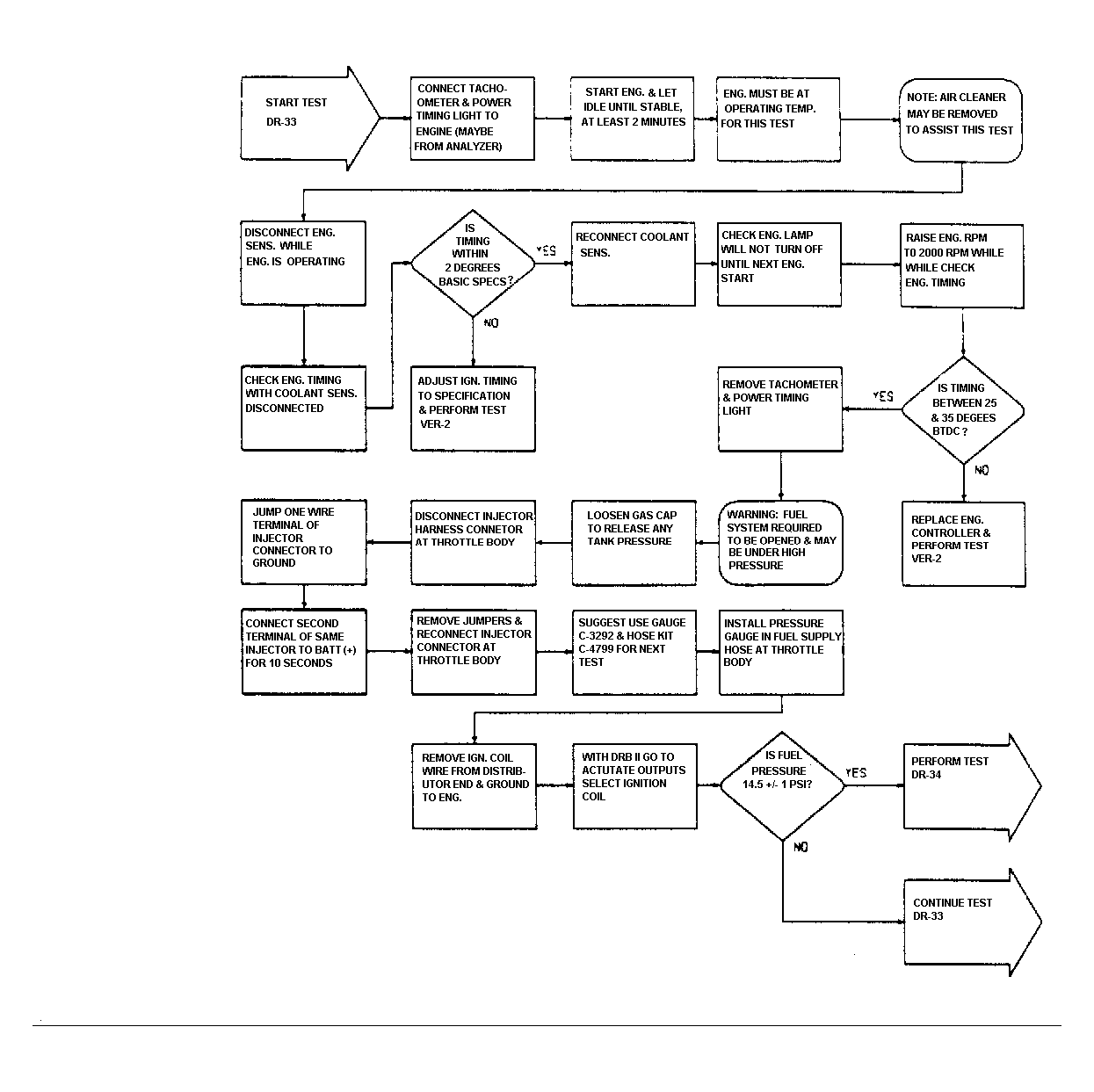

Fig 1: DR-33, Checking Basic Timing & Fuel System (1 of 5)

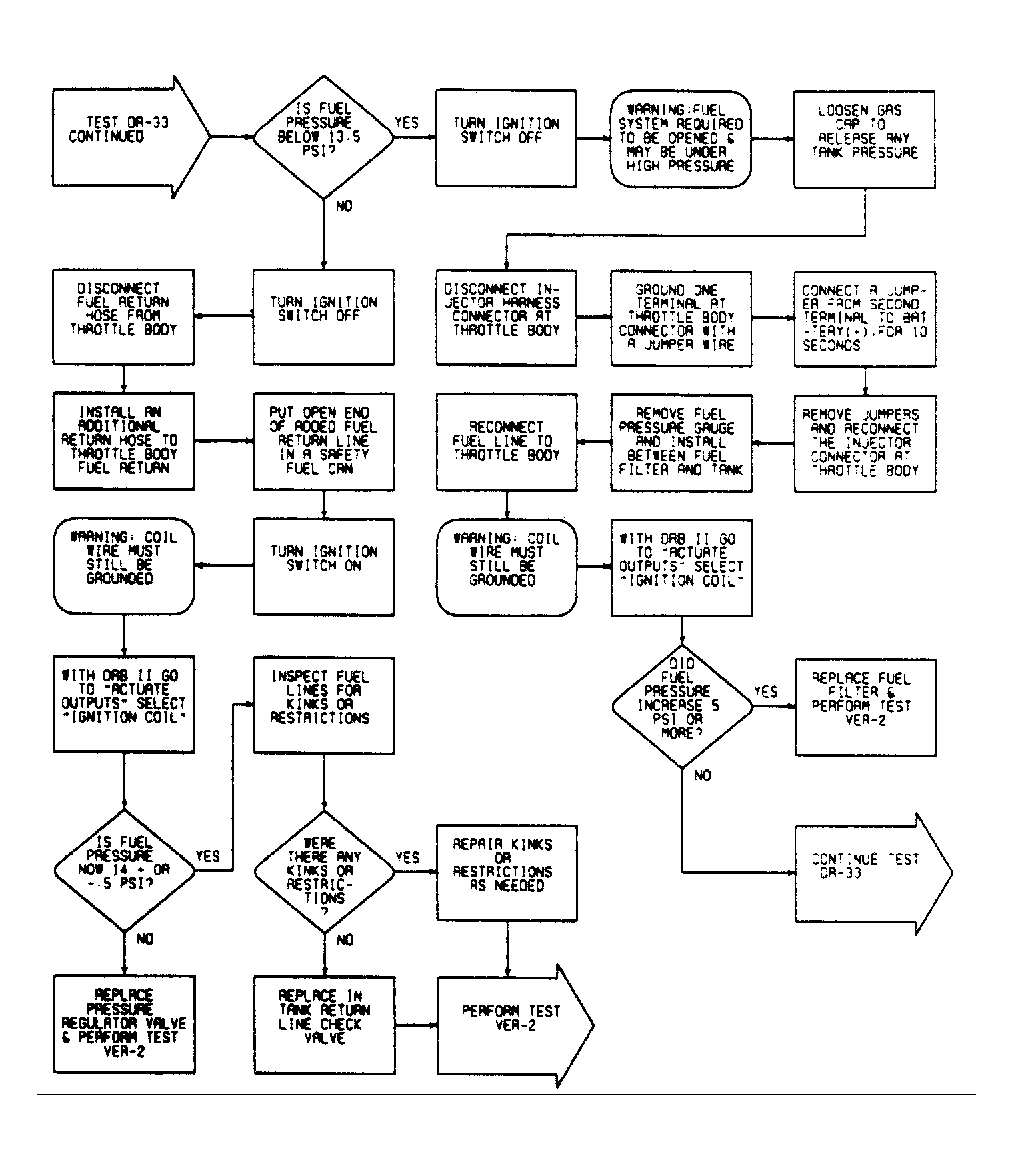

Fig 2: DR-33, Checking Basic Timing & Fuel System (2 of 5)

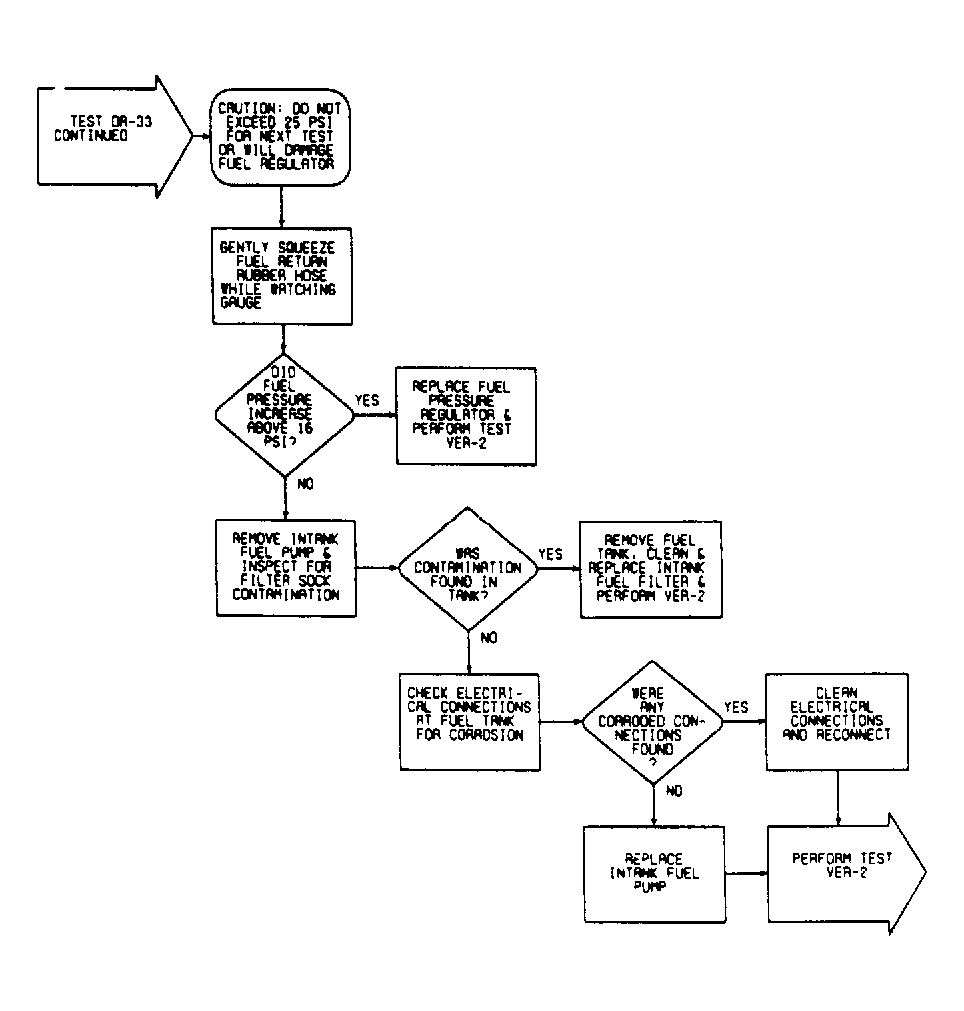

Fig 3: DR-33, Checking Basic Timing & Fuel System (3 of 5)

Fig 4: DR-33, Checking Basic Timing & Fuel System (4 of 5)

Fig 5: DR-33, Checking Basic Timing & Fuel System (5 of 5)
