Dr-2, Checking Output Circuits Of SMEC

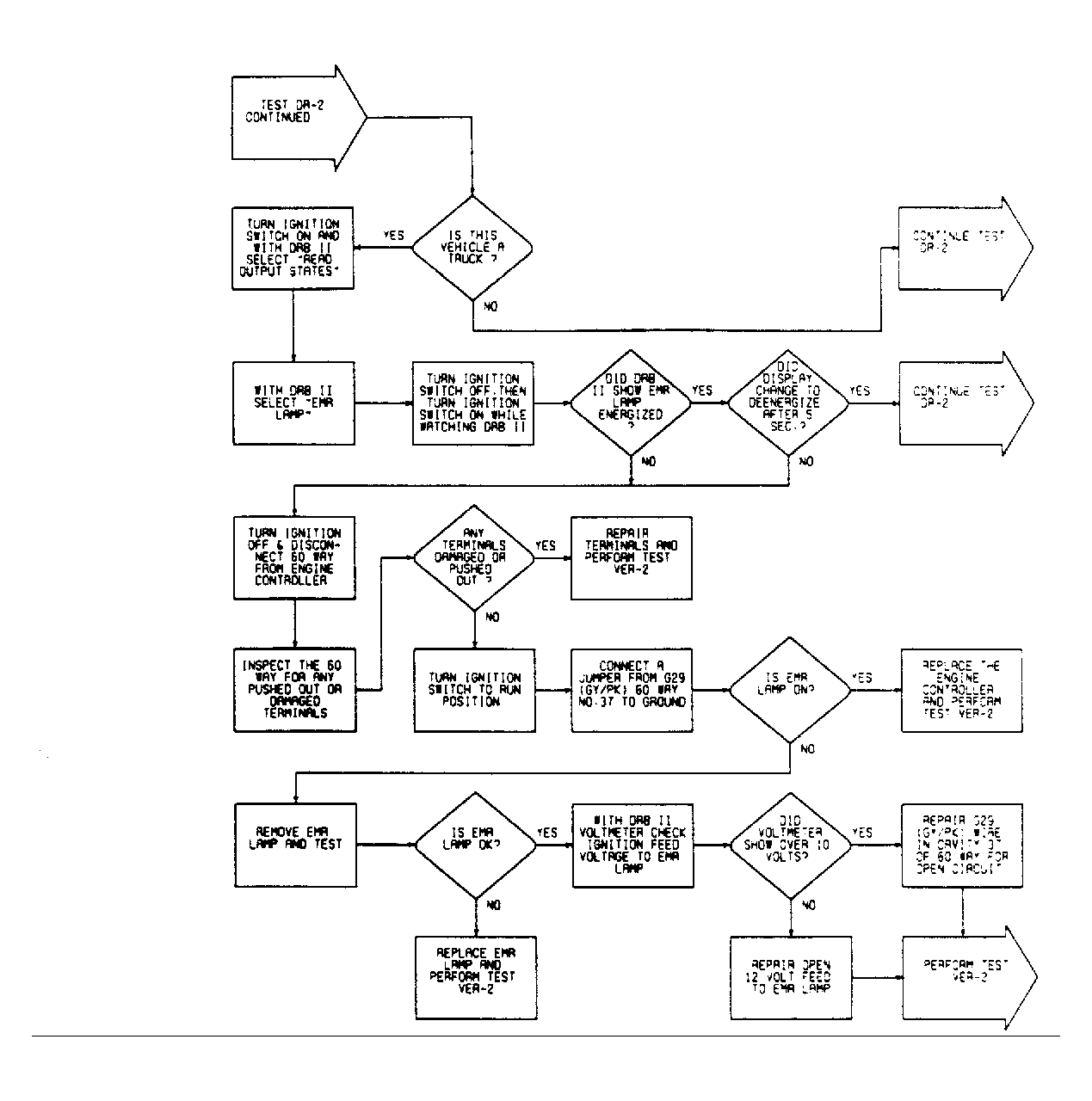

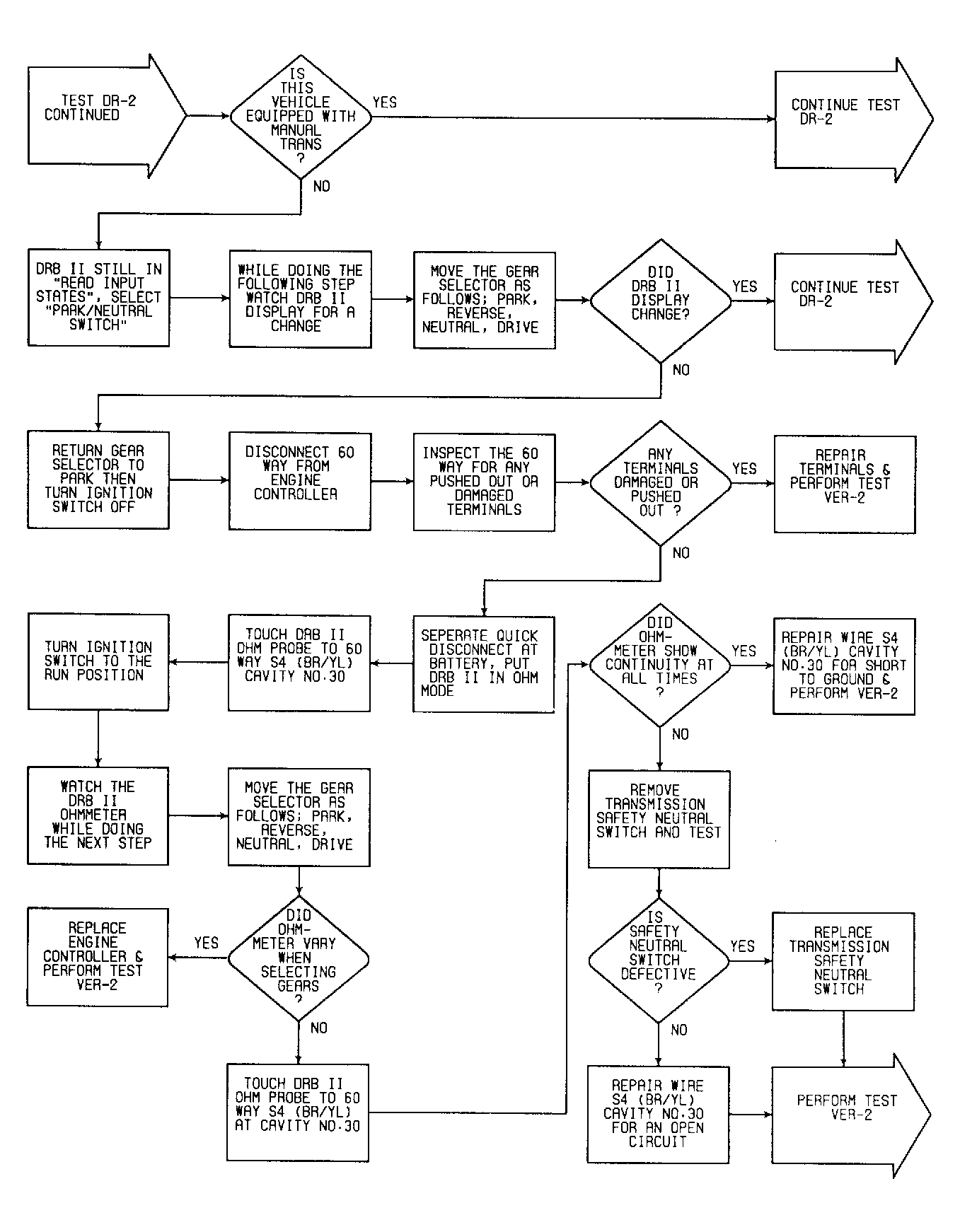

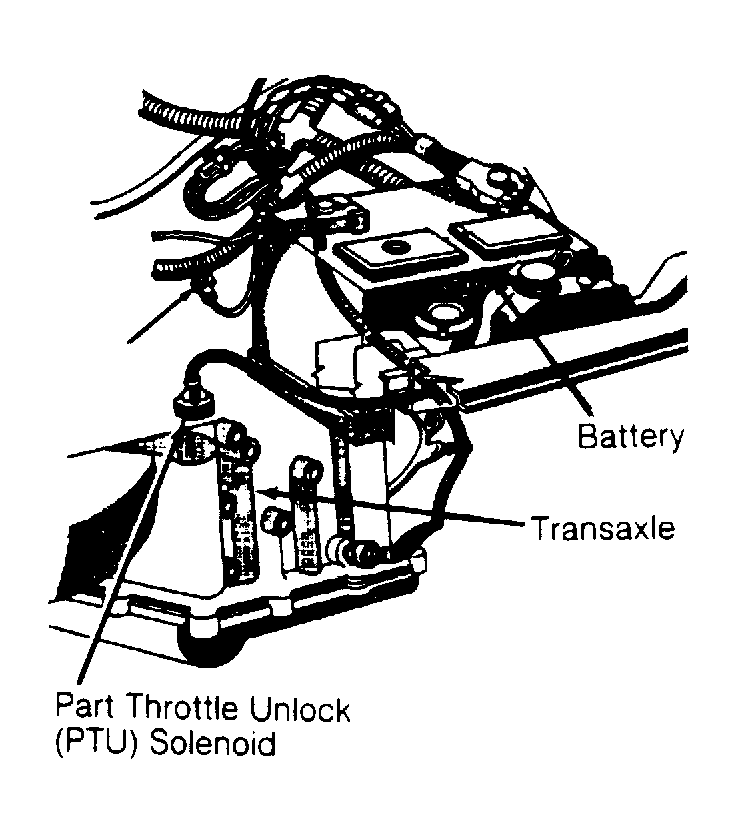

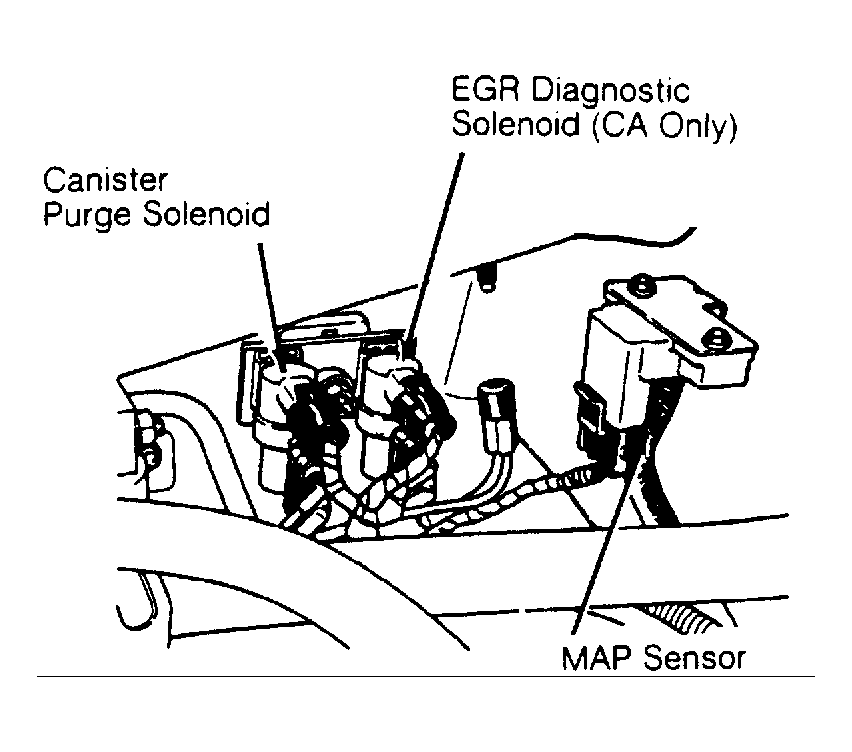

Fig 1: DR-2, Checking Output Circuits of SMEC (1 of 14)

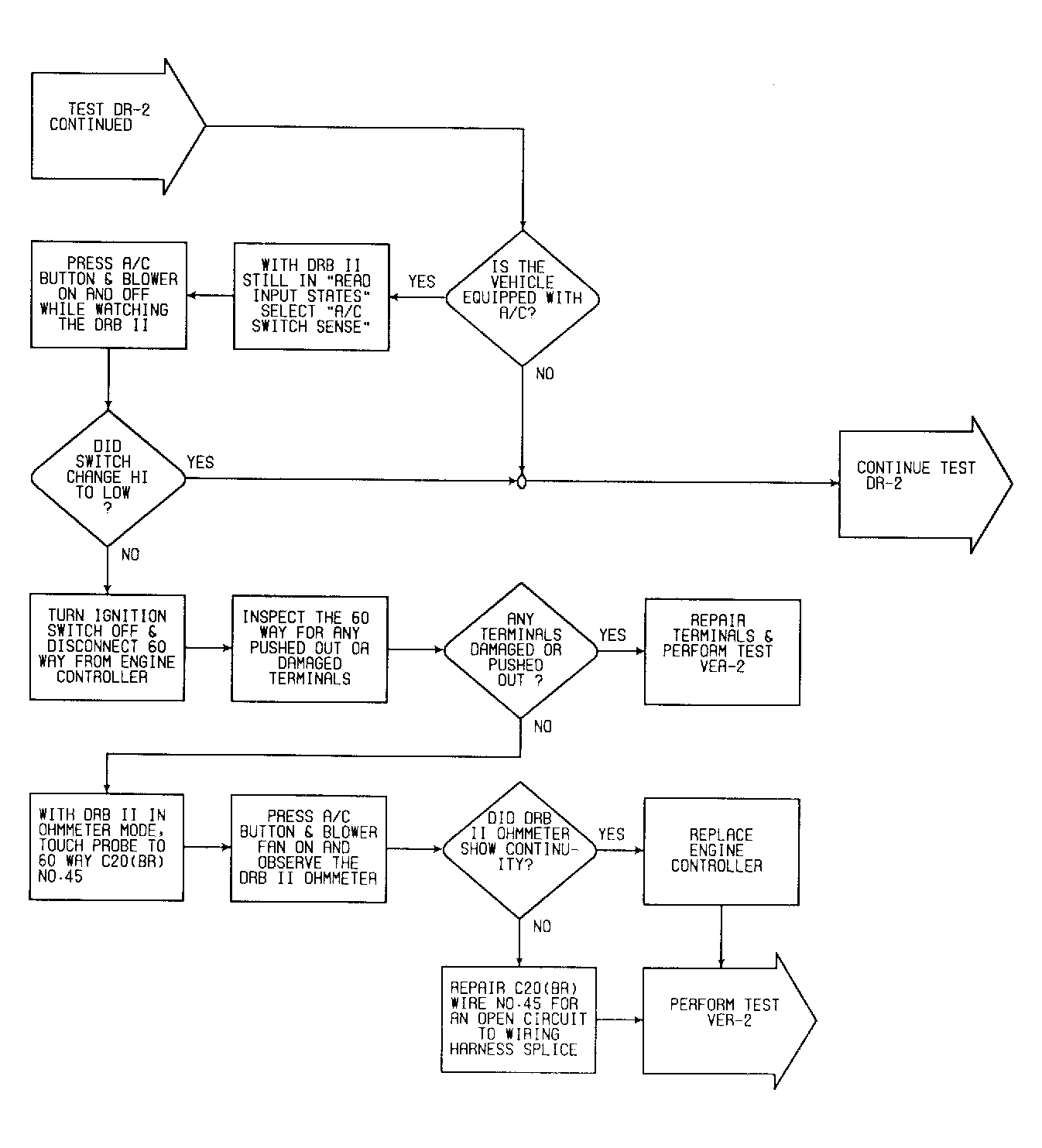

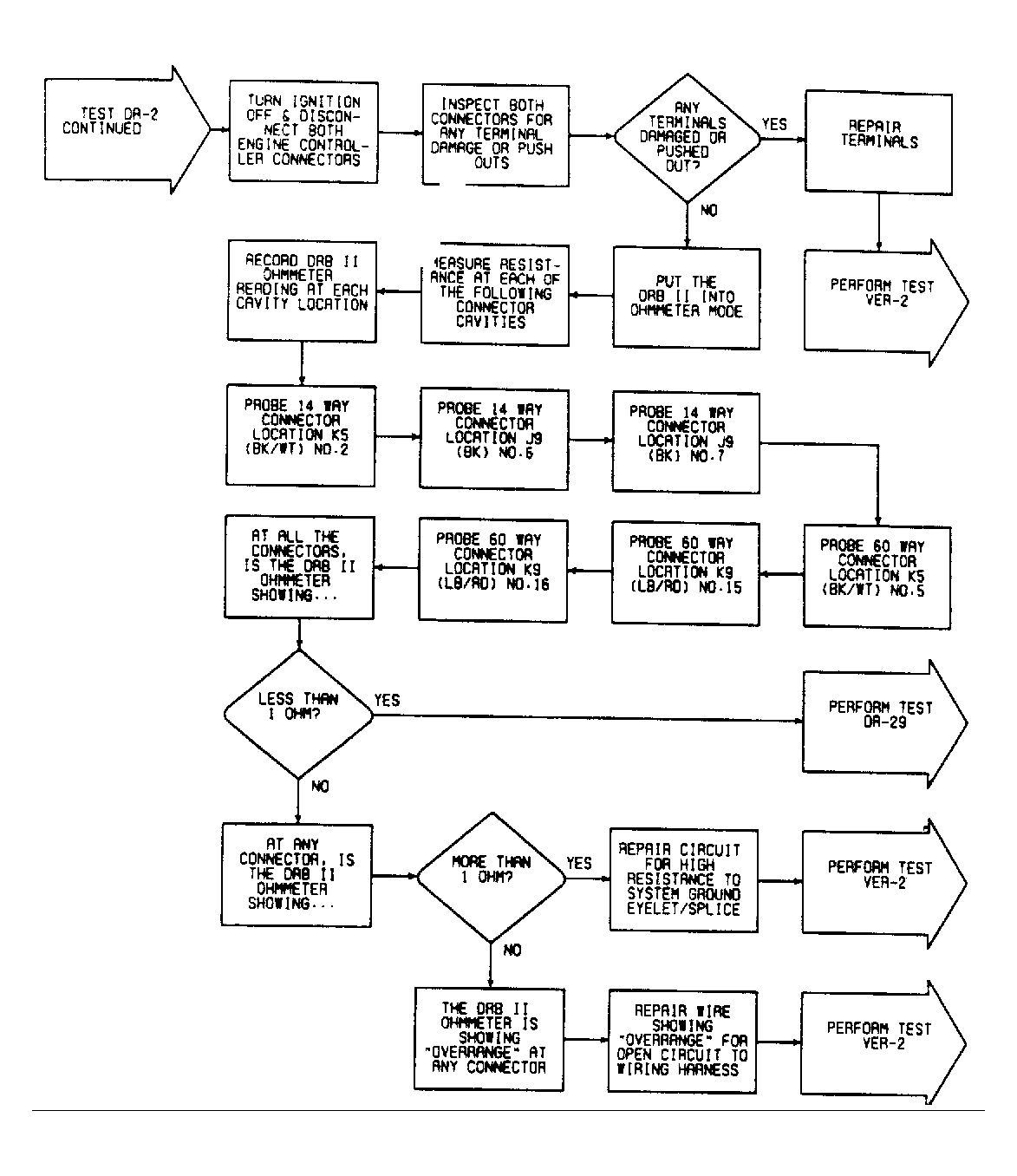

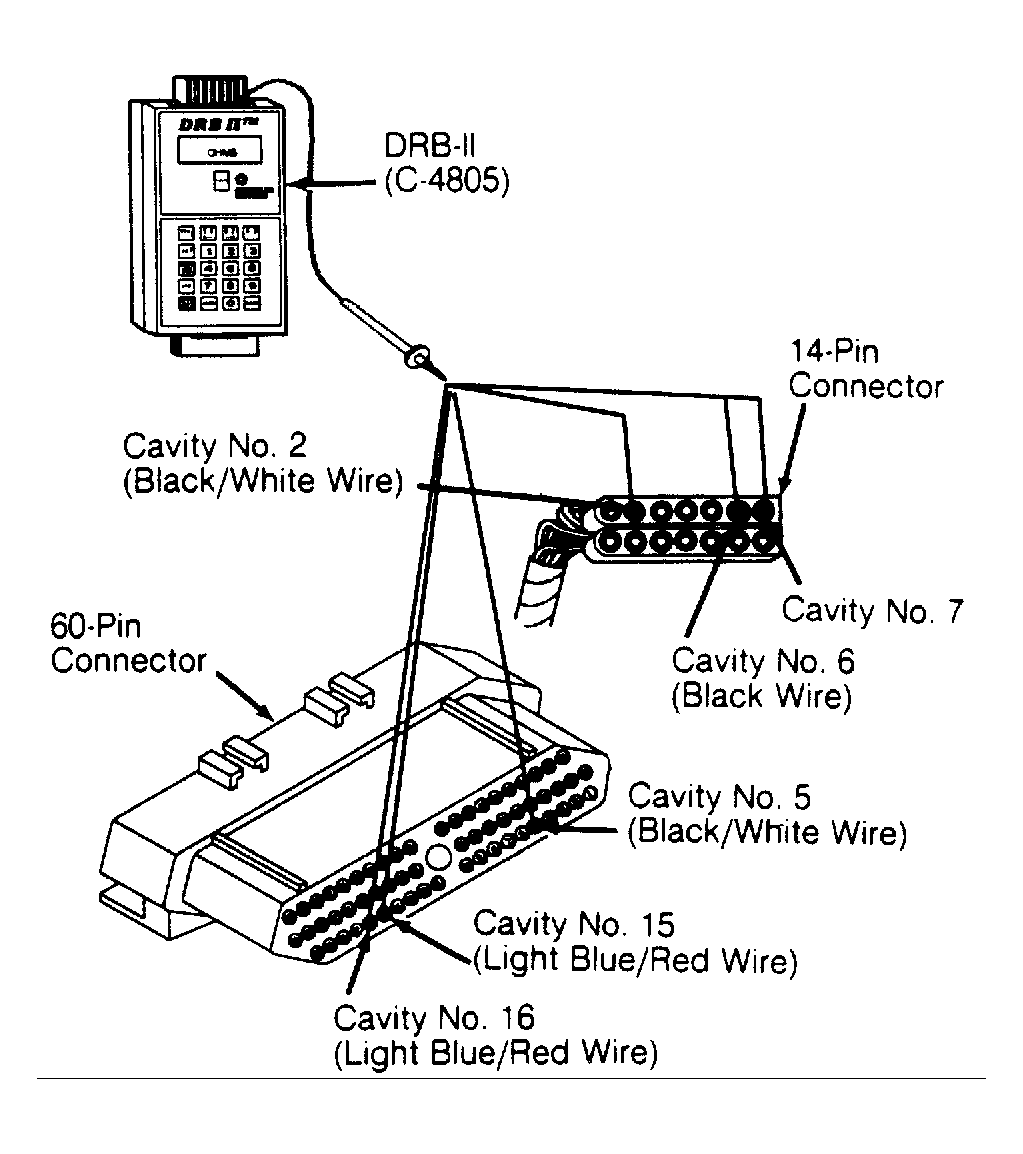

Fig 2: DR-2, Checking Output Circuits of SMEC (2 of 14)

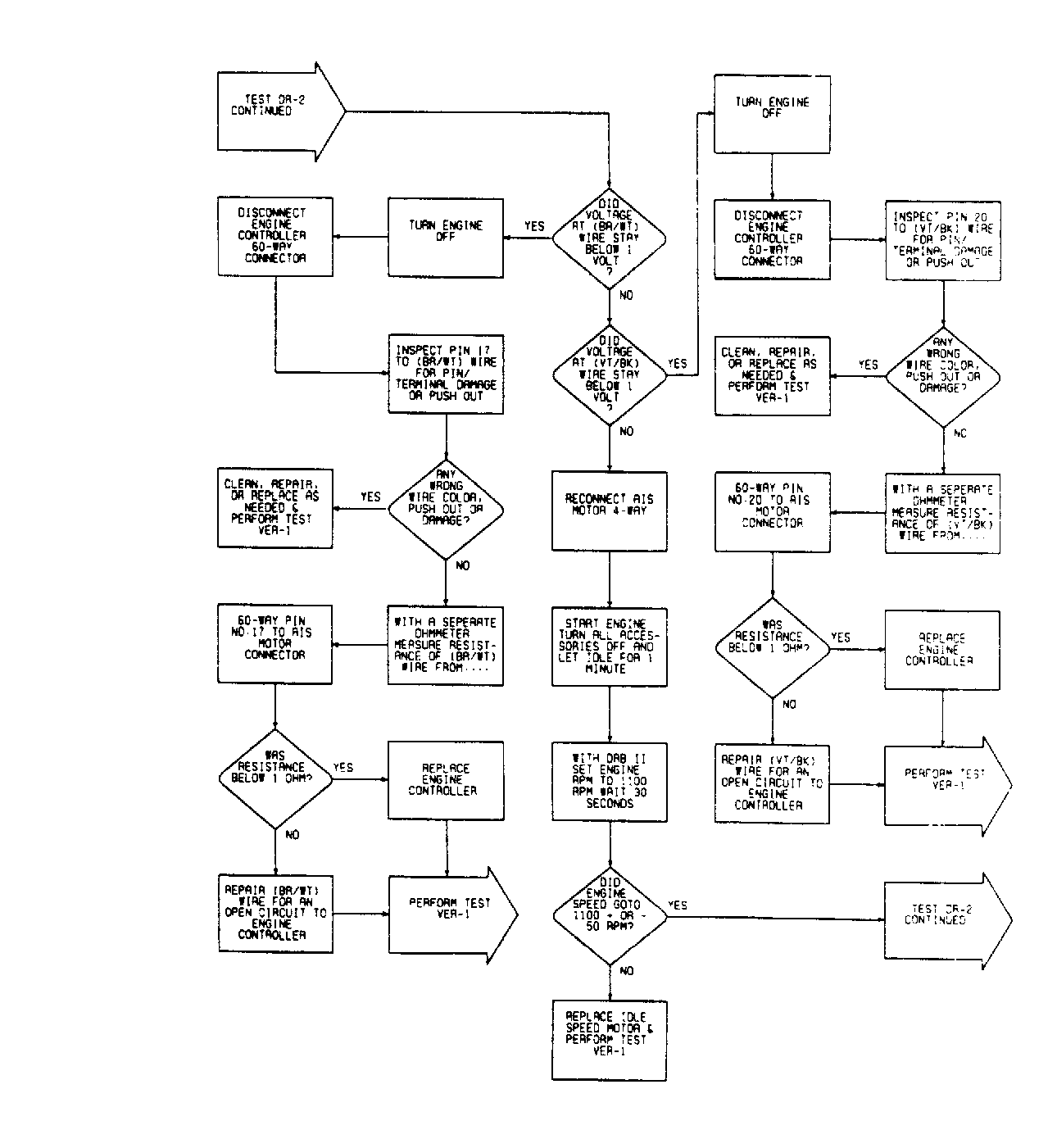

Fig 3: DR-2, Checking Output Circuits of SMEC (3 of 14)

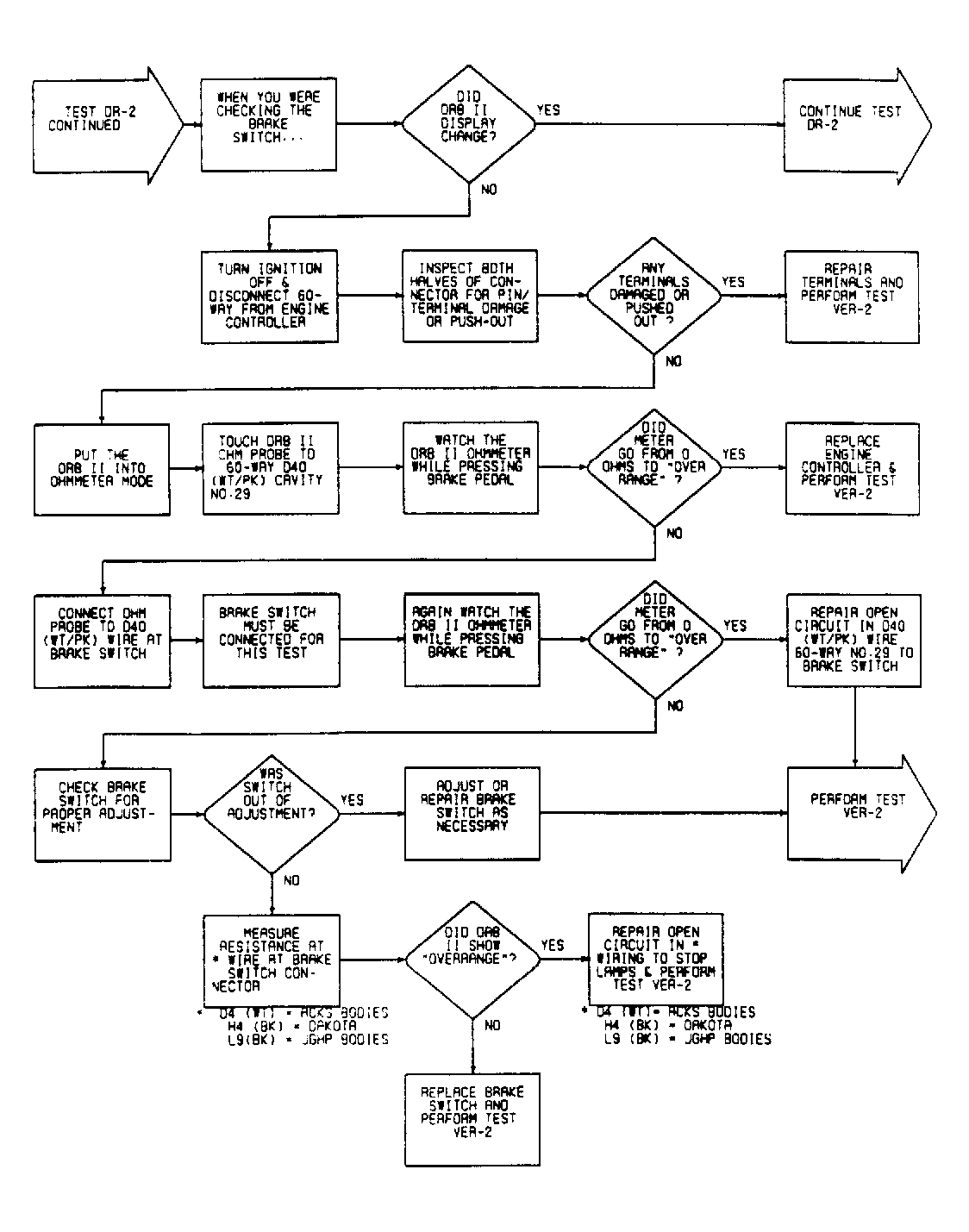

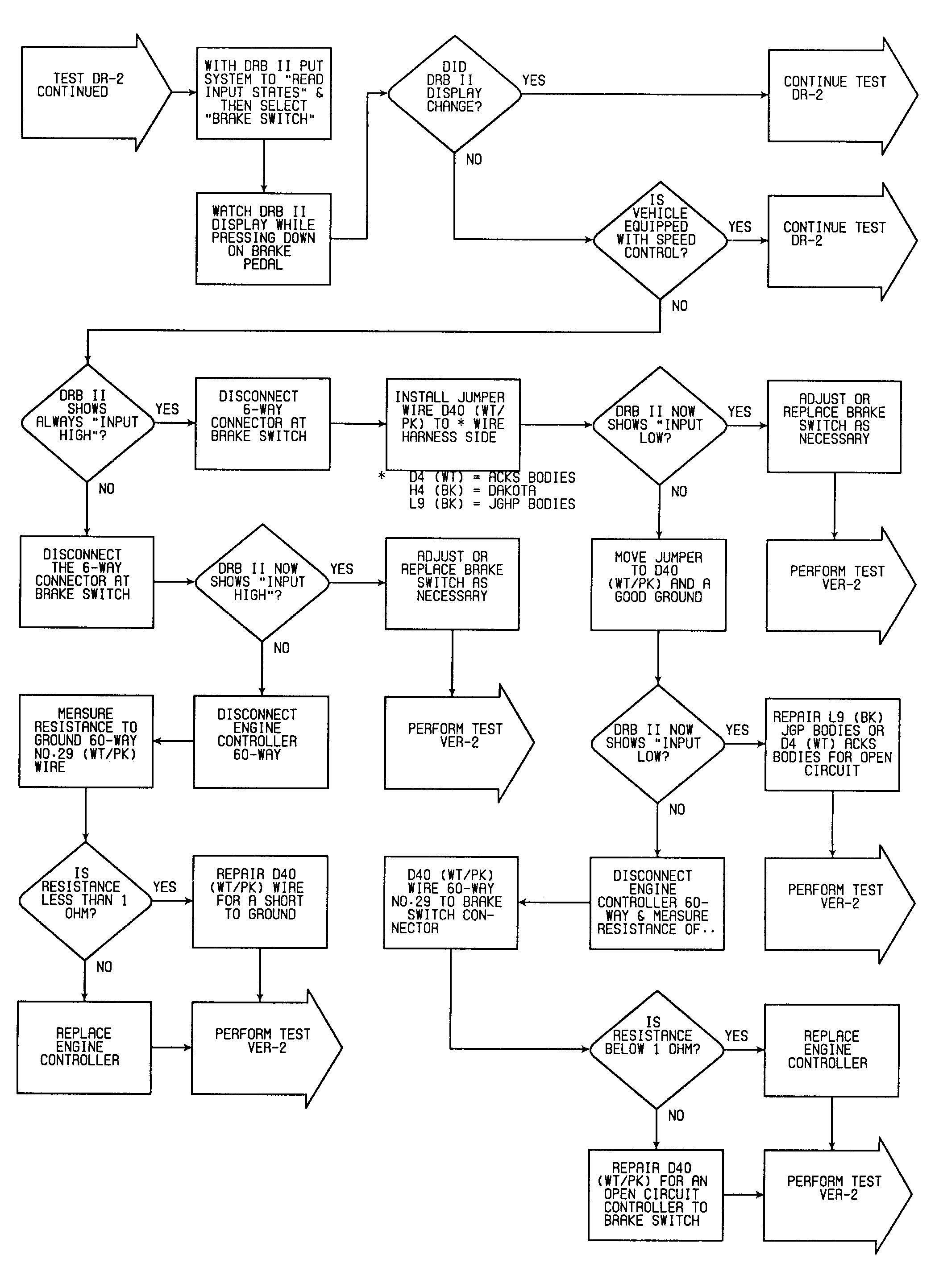

Fig 4: DR-2, Checking Output Circuits of SMEC (4 of 14)

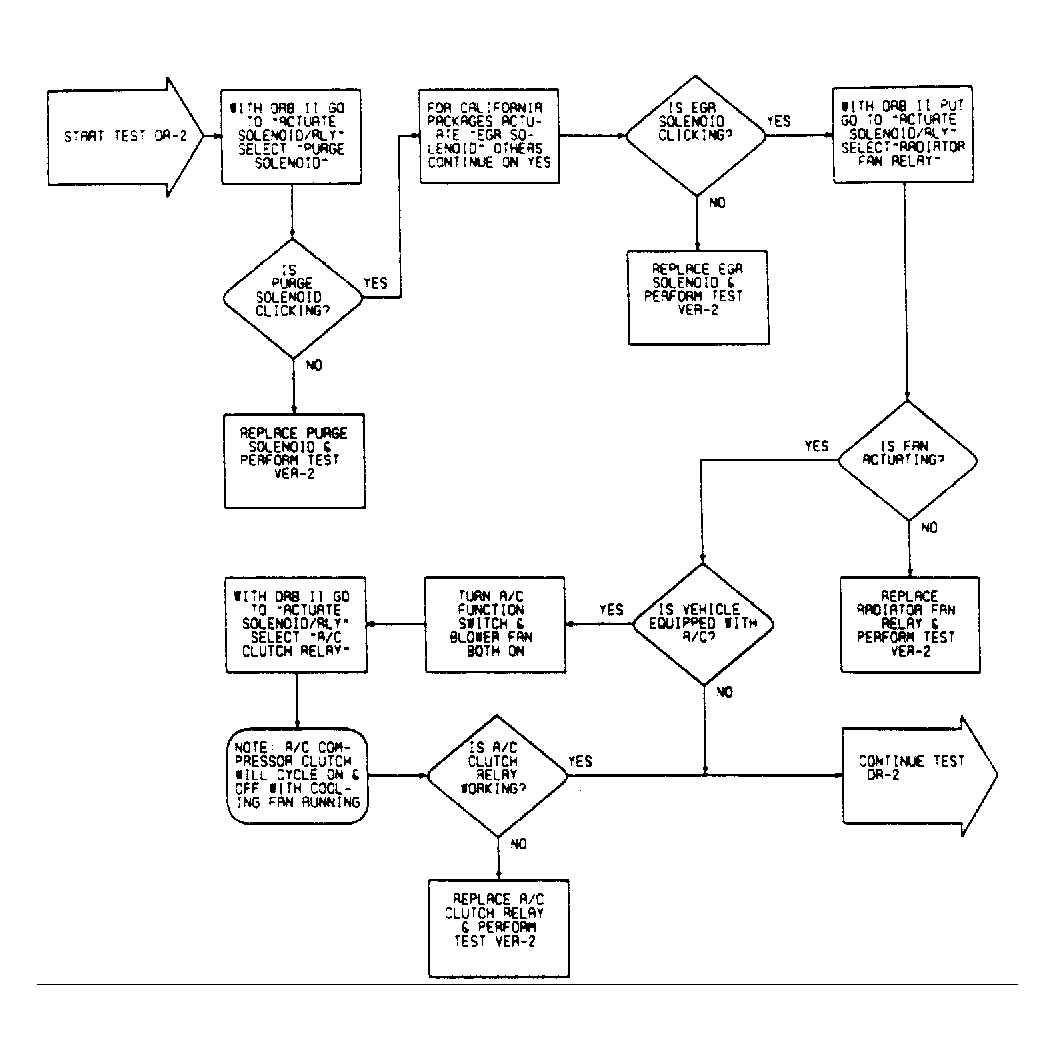

Fig 5: DR-2, Checking Output Circuits of SMEC (5 of 14)

Fig 6: DR-2, Checking Output Circuits of SMEC (6 of 14)

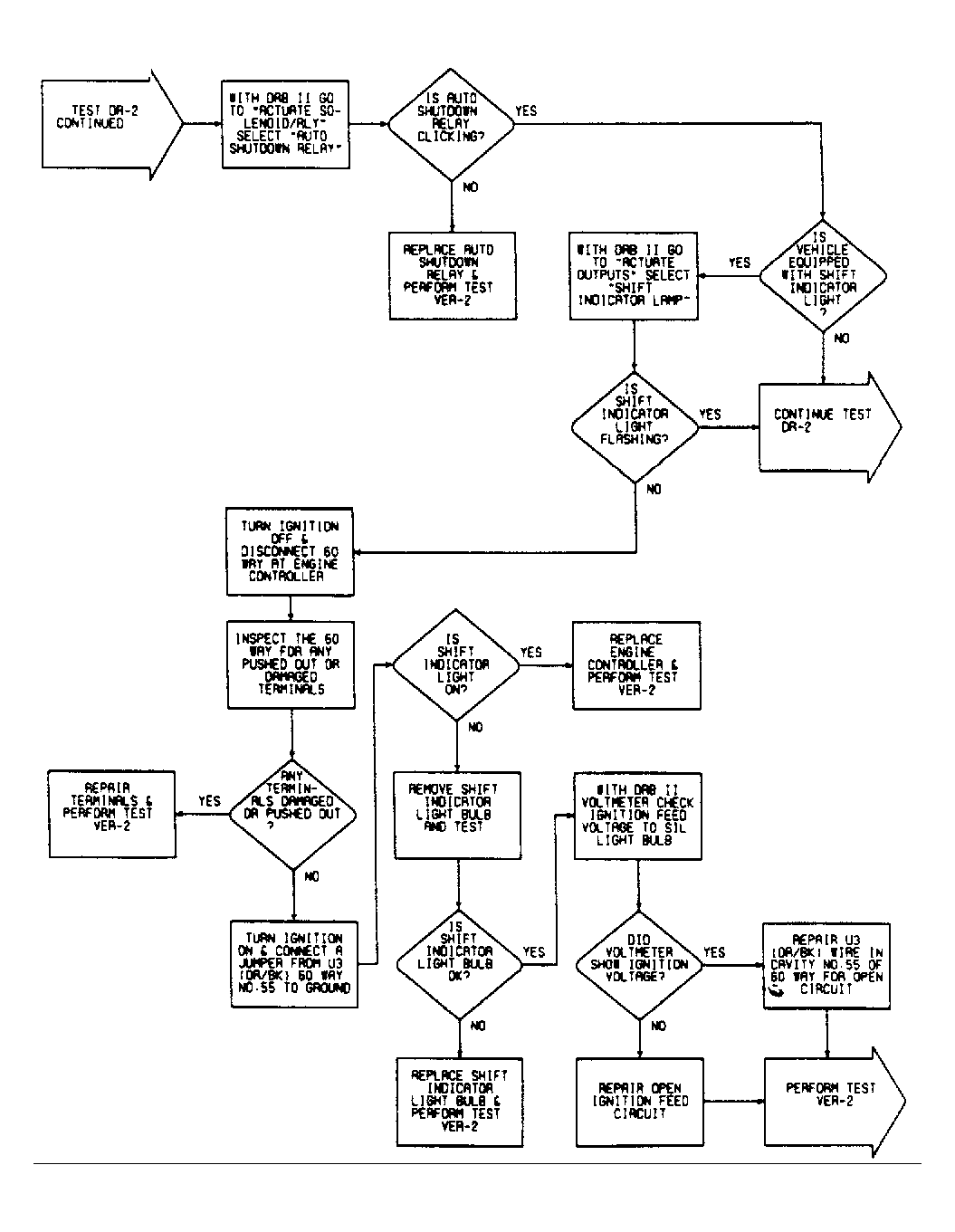

Fig 7: DR-2, Checking Output Circuits of SMEC (7 of 14)

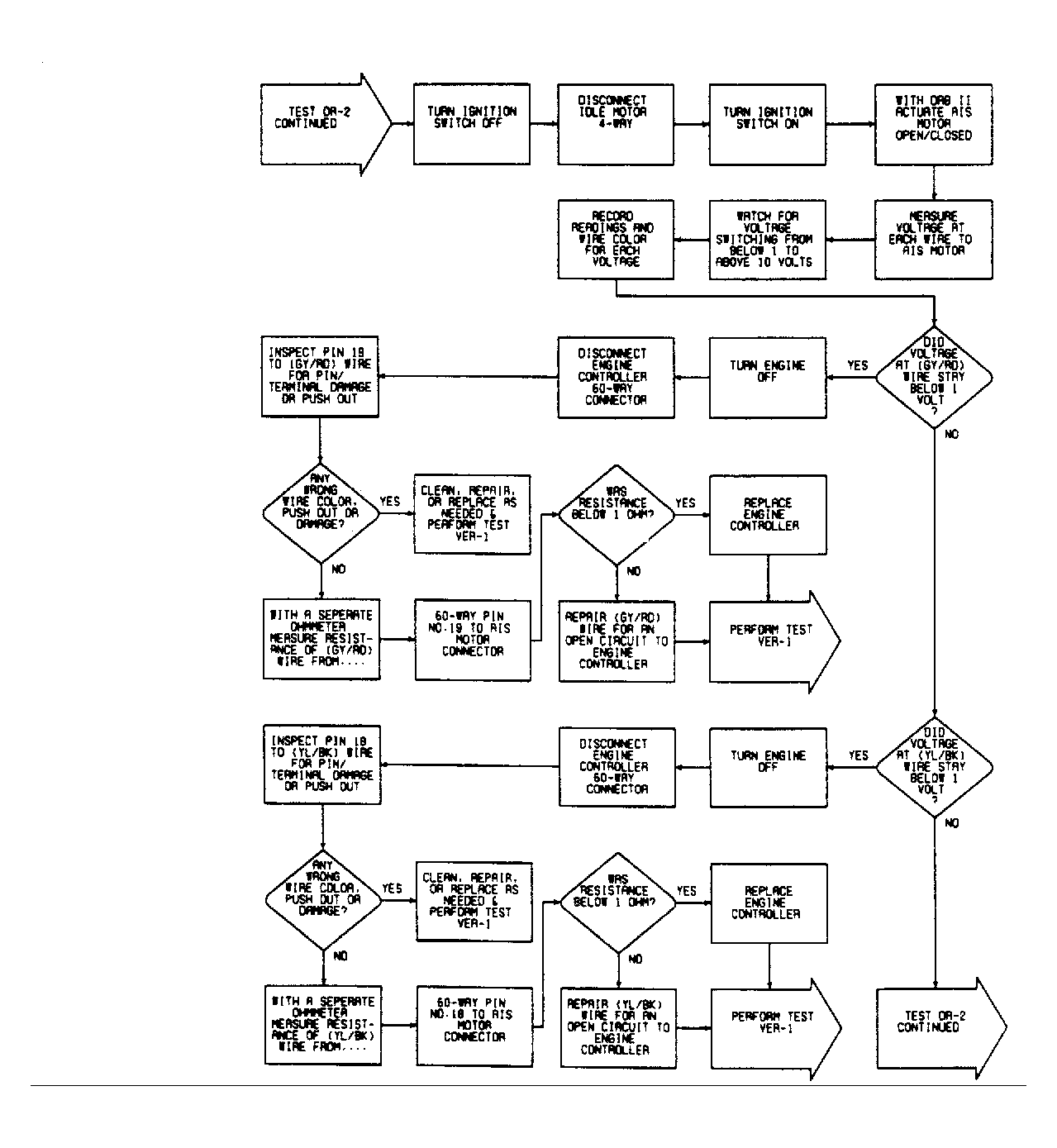

Fig 8: DR-2, Checking Output Circuits of SMEC (8 of 14)

Fig 9: DR-2, Checking Output Circuits of SMEC (9 of 14)

Fig 10: DR-2, Checking Output Circuits of SMEC (10 of 14)

Fig 11: DR-2, Checking Output Circuits of SMEC (11 of 14)

Fig 12: DR-2, Checking Output Circuits of SMEC (12 of 14)

Fig 13: DR-2, Checking Output Circuits of SMEC (13 of 14)

Fig 14: DR-2, Checking Output Circuits of SMEC (14 of 14)
