Home >> Chrysler >> 1989 >> New Yorker Base >> Repair and Diagnosis >> Engine Performance >> System >> 2.2L/2.5L SPFI Tests/Code >> Charging System Tests >> Ch-6, Checking Charging System With No Codes

Ch-6, Checking Charging System With No Codes

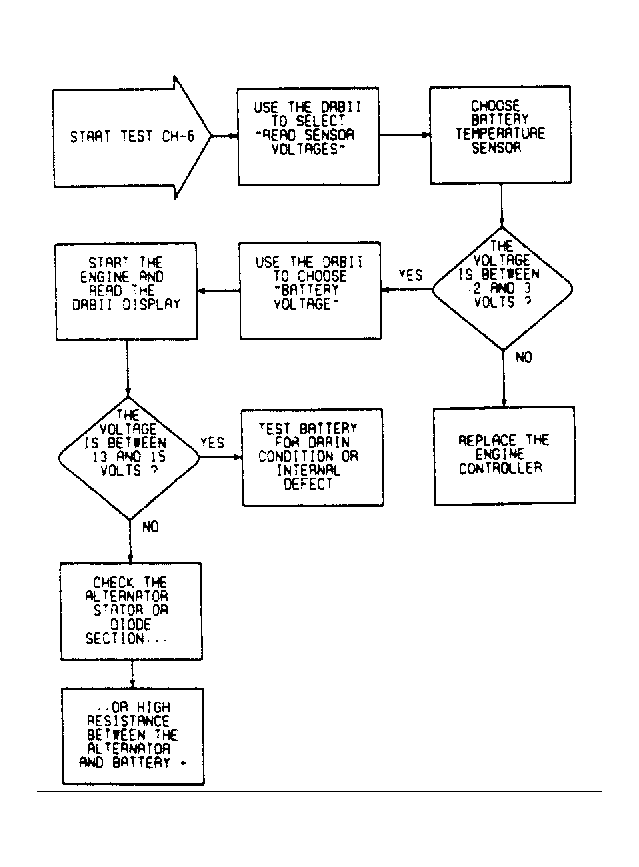

Fig 1: CH-6, Checking Charging System With NO Codes

G107317
