VER-2 - DRIVEABILITY Verification
VER-2 - DRIVEABILITY Verification

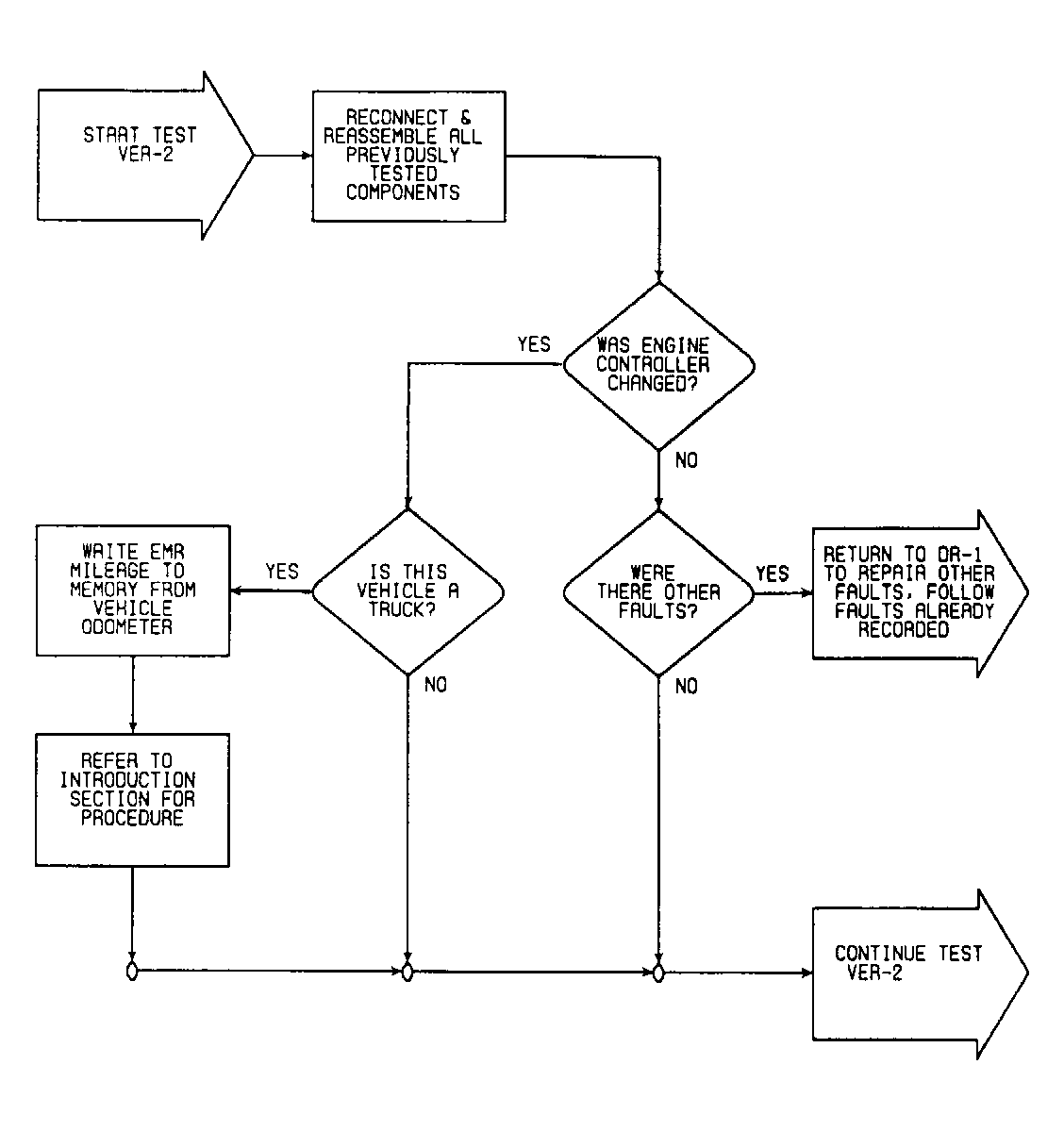

Fig 1: VER-2 Flow Chart (1 of 2), Driveability Verification (Cont.)

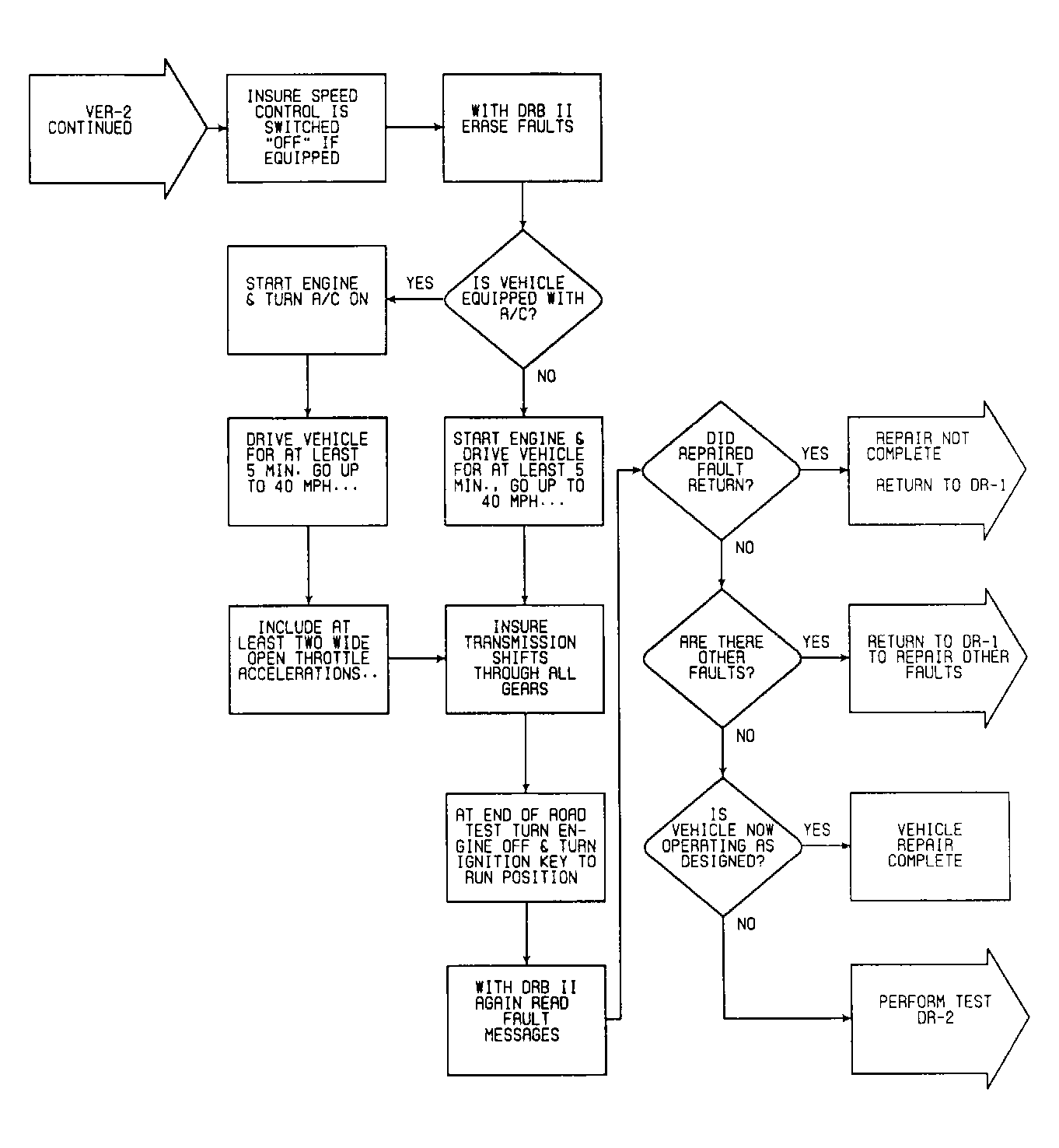

Fig 2: VER-2 Flow Chart (2 of 2), Driveability Verification (Cont.)
