NS-9 - Checking For System Faults

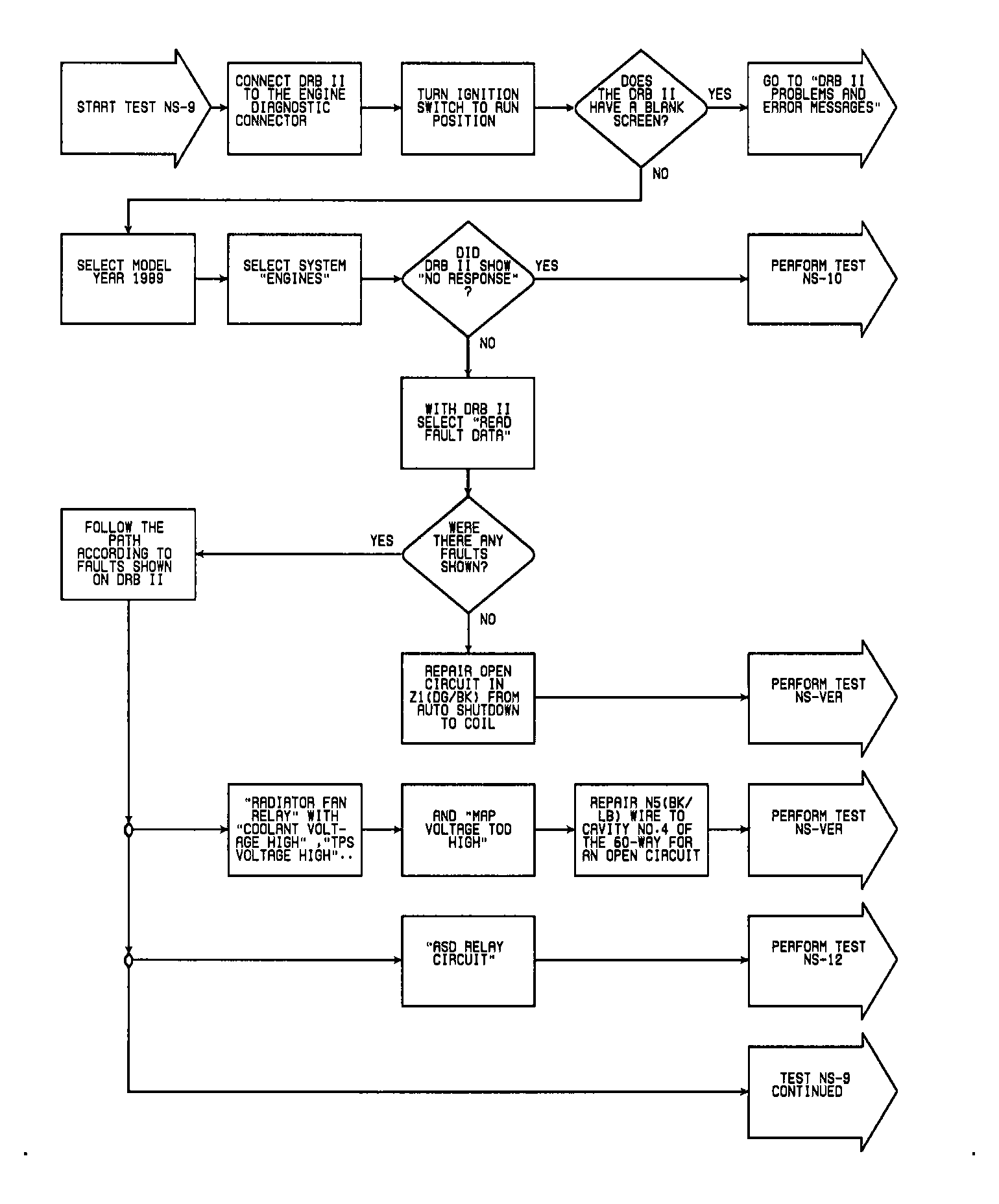

Fig 1: NS-9 Flow Chart (1 of 2), Checking System For Faults

G107344

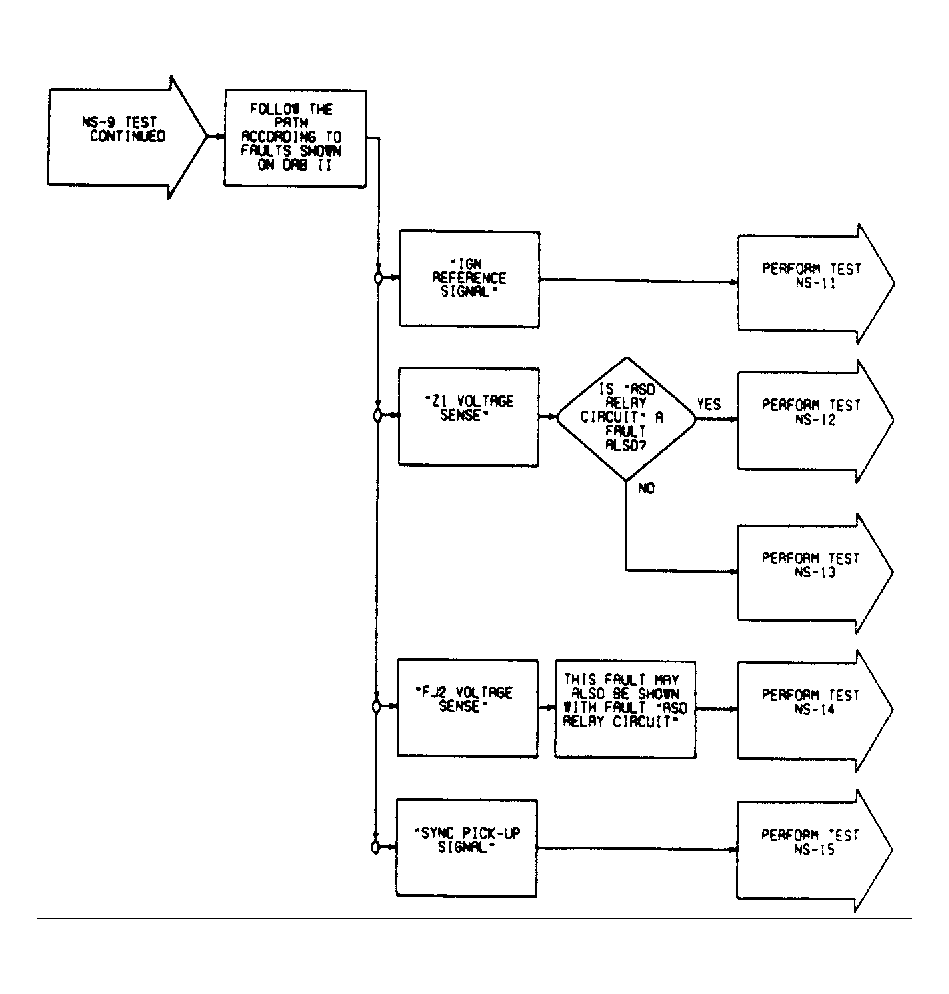

Fig 2: NS-9 Flow Chart (2 of 2), Checking System For Faults

G107345
