NS-12, Checking Distributor Pick-Up & Circuits

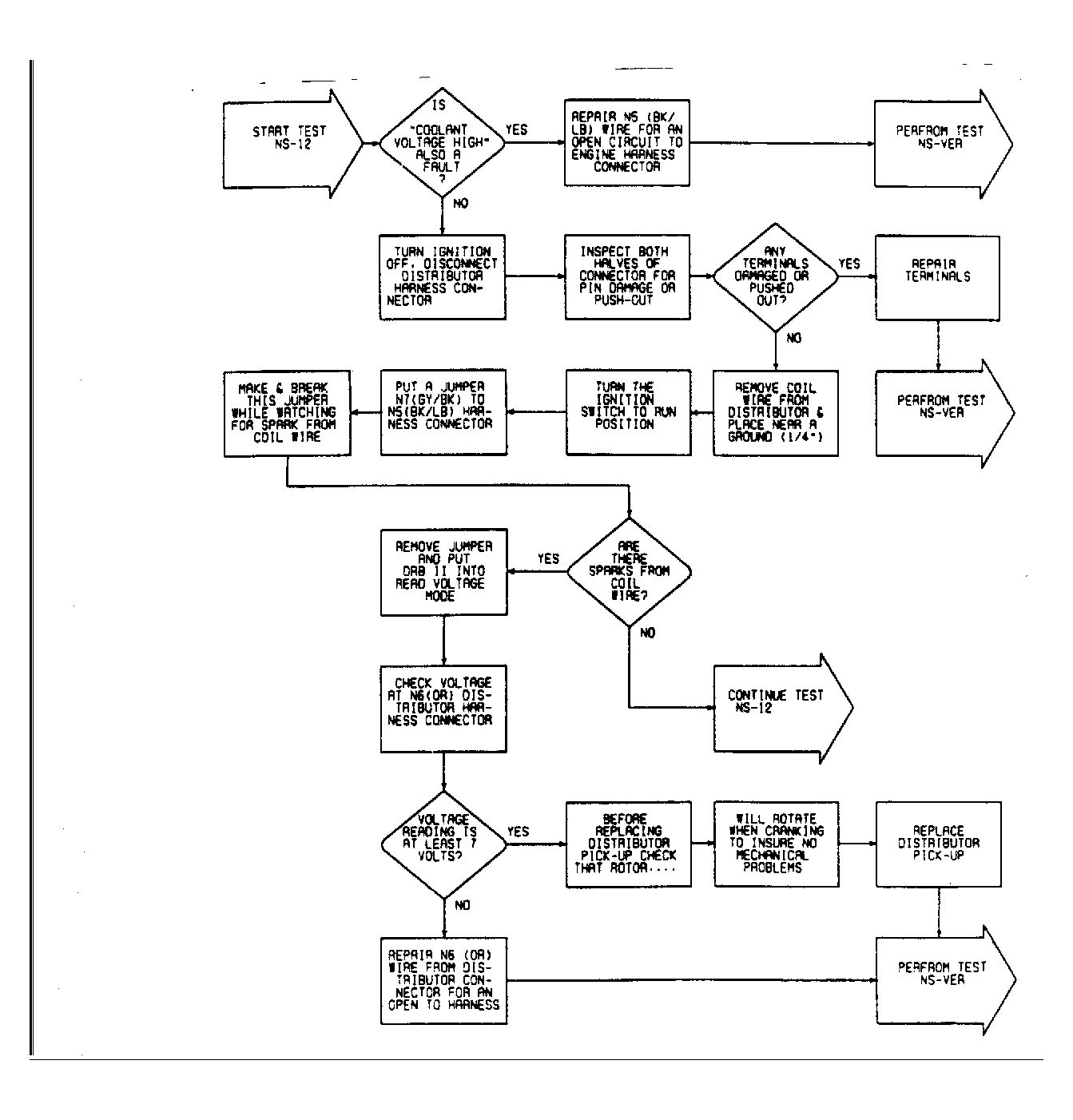

Fig 1: NS-12, Checking Distributor Pick-Up & Circuits (1 of 2)

G108037

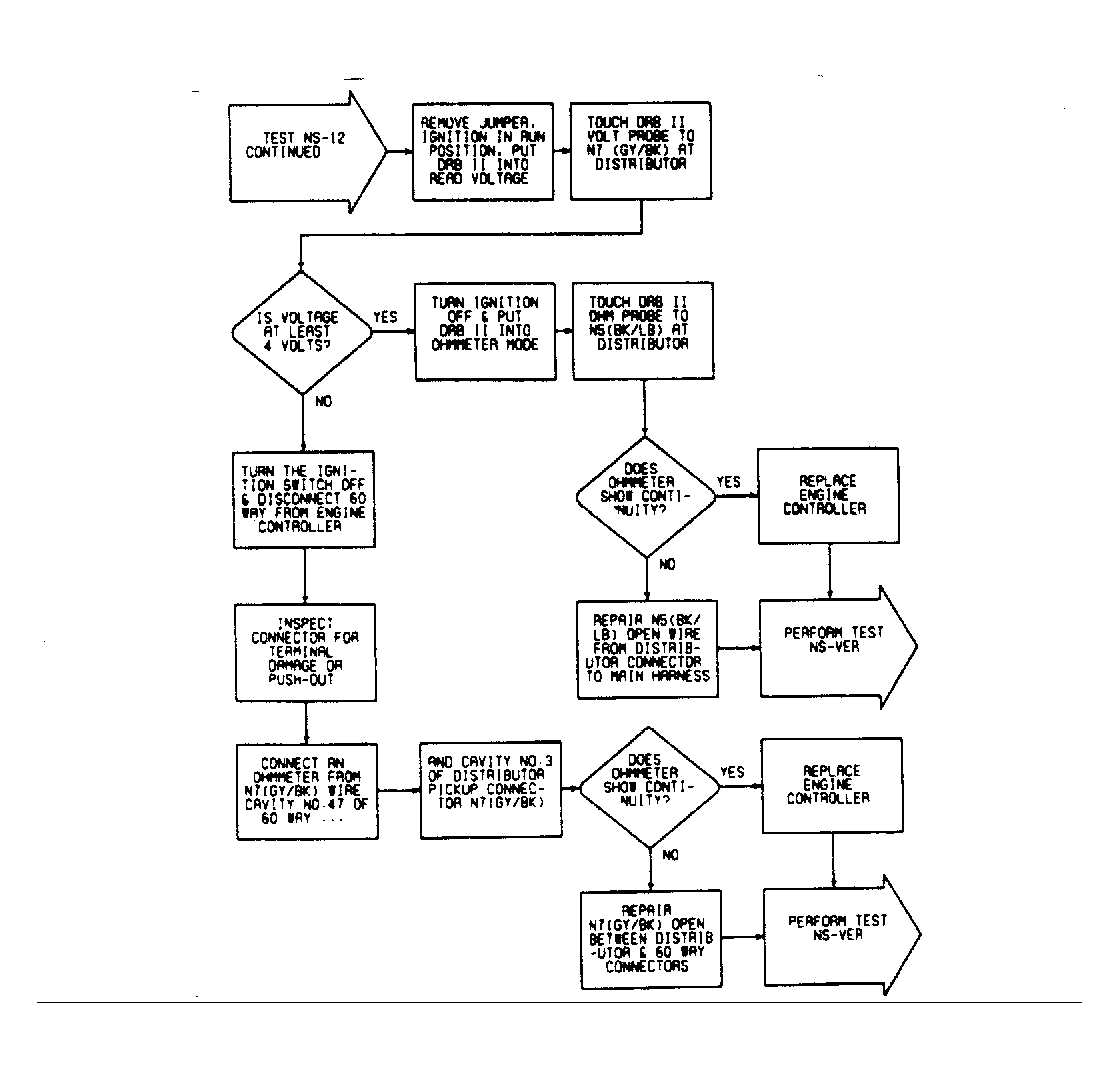

Fig 2: NS-12, Checking Distributor Pick-Up & Circuits (2 of 2)

G108038
