Dr-8, Checking For Fault Message "Map Pneumatic Change"

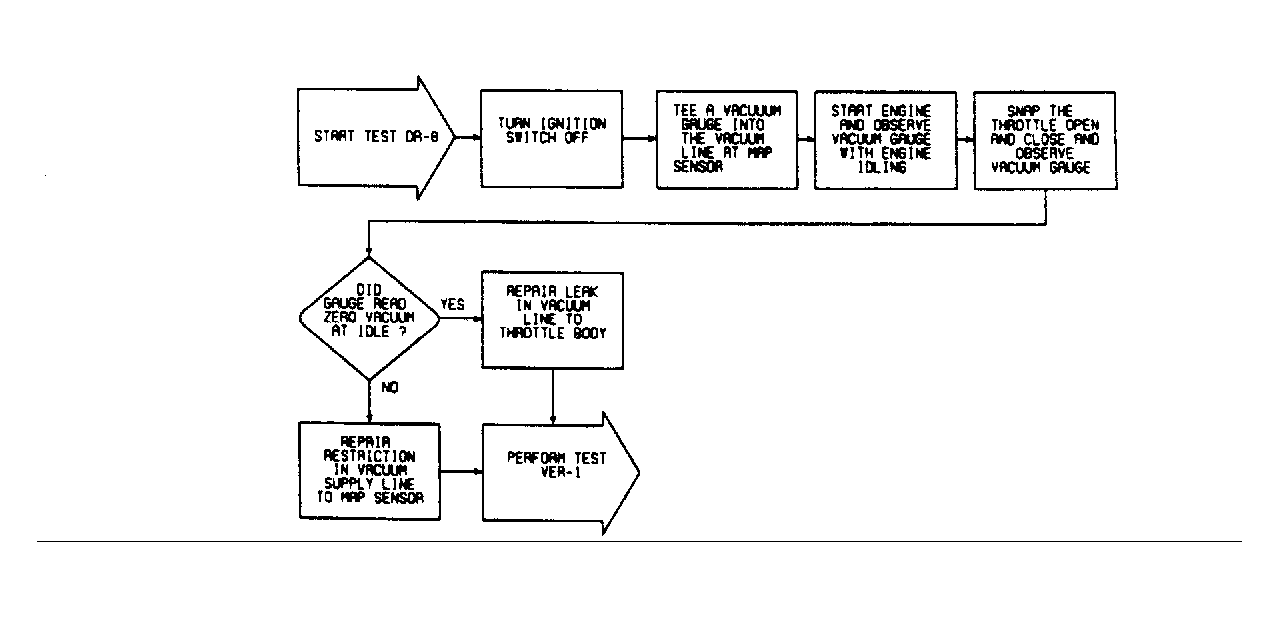

Fig 1: DR-8, Checking For Fault Message "MAP Pneumatic Change"

G108075
