Dr-11, Checking For Fault Message "Vehicle Speed Signal"

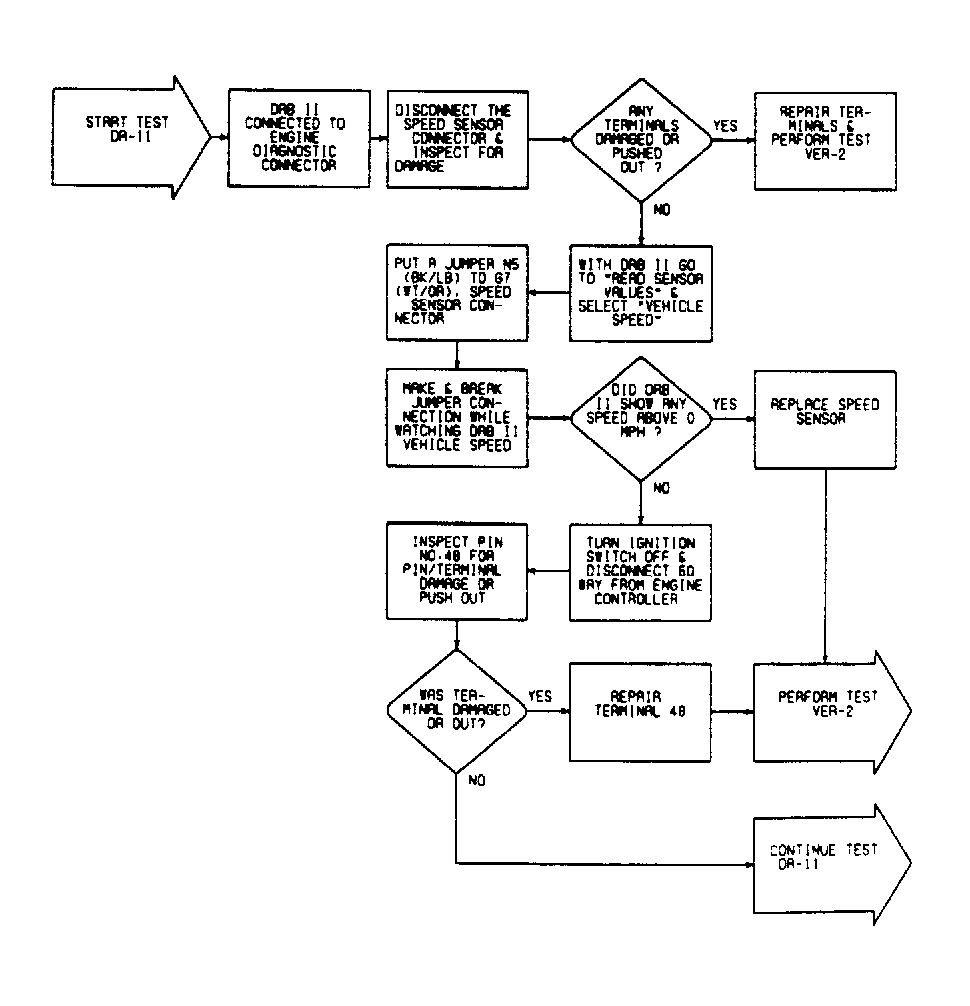

Fig 1: DR-11 (1 of 3), Fault Message "Vehicle Speed Signal" Check

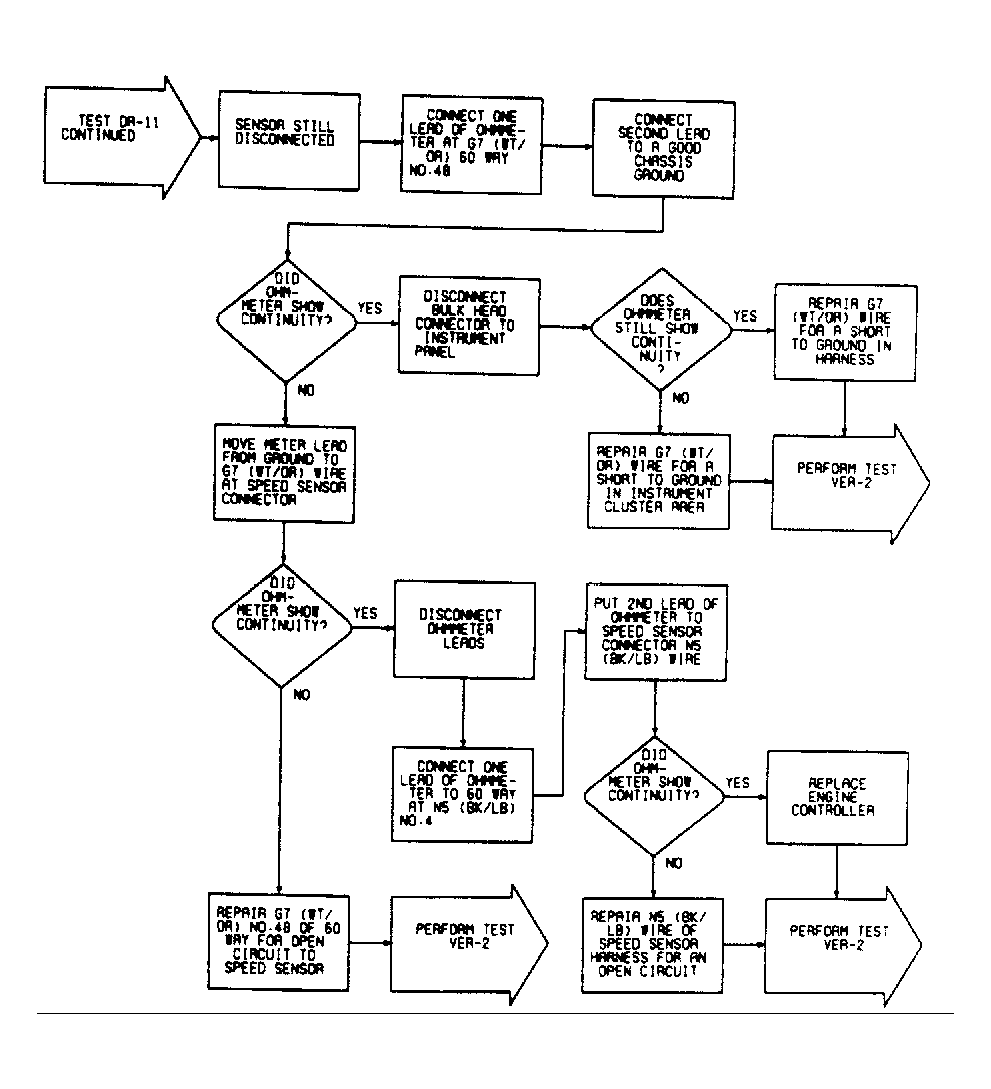

Fig 2: DR-11 (2 of 3), Fault Message "Vehicle Speed Signal" Check

Fig 3: DR-11 (3 of 3), Fault Message "Vehicle Speed Signal" Check
