WHEEL ALIGNMENT SPECIFICATIONS (RWD)

Application

Specification

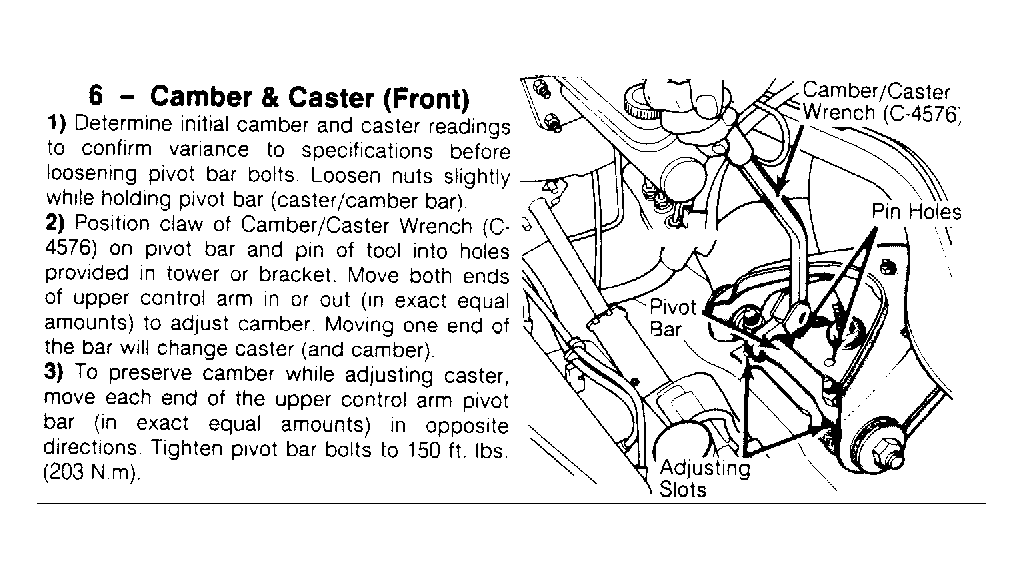

Front (See Figure )

Camber in Degrees ⁽¹⁾

Fraction

1/2 +/- 1/2

Decimal

.50 +/- .50

Caster in Degrees ⁽²⁾

Fraction

2 1/2 +/- 1

Decimal

2.50 +/- 1

Toe-In in Inches ⁽³⁾⁽⁴⁾

Fraction

1/8 +/- 1/8

Decimal

.125 +/- .125

Toe-In in Degrees ⁽³⁾⁽⁴⁾

Fraction

5/16 +/- 5/16

Decimal

.313 +/- .313

Toe-Out on Turns

Inner

20°

Outer

18°

Steering Axis Inclination

8°

⁽¹⁾	Left to right camber differential must not exceed 1° (1.0°).

⁽²⁾	Left to right caster differential must not exceed 1 1/4° (1.25°).

⁽³⁾	Preferred setting is 1/8" +/- 1/16" (.125" +/- 063") or 1/4° +/- 7/64° (.250° +/- .10°).

⁽⁴⁾	Total sum of left wheel plus right wheel.
