Secondary Air Cleaner: Turbocharged

  1. Disconnect air hose from reed valve. Disconnect Yellow-striped vacuum hose from secondary air control solenoid valve. Connect a vacuum pump to hose end.
  2. Apply 19.8 in. Hg of vacuum. Vacuum should hold. With no vacuum applied, blow in air from end of extension hose. Air should not blow through. Apply 6.0 in. Hg of vacuum and blow in air. Air should blow through.

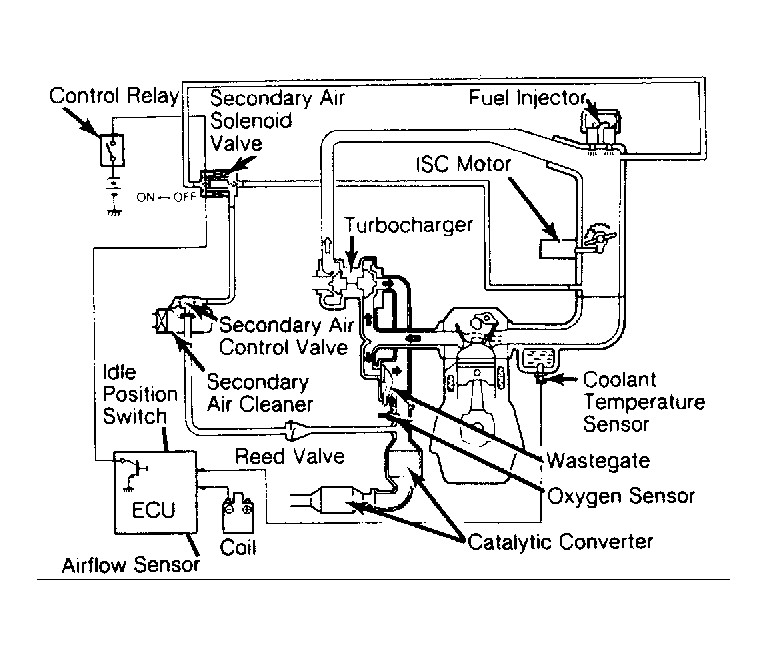

Fig 1: Secondary Air Supply (Conquest)
G65447Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

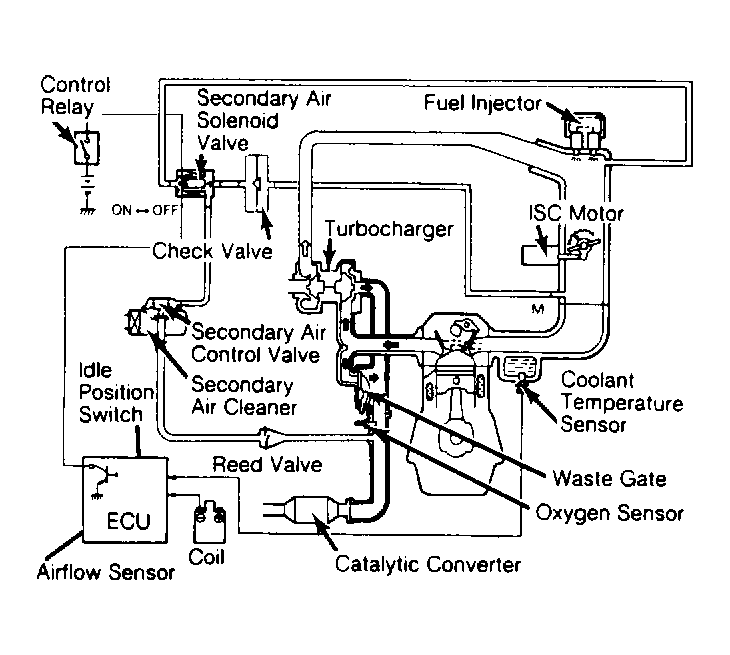

Fig 2: Secondary Air Supply (Colt)
G65448Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Secondary Air Supply (All Other Models)
G65449Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
