Testing Specifications: Notes

TESTING SPECIFICATIONS

Application Ft. Lbs. (N.m)
Colt Vista 5.1 (7)
Conquest (1) 28 (39)
(1) Includes 3 ft. lbs (4 N.m) for disc brake drag.
Fig 1: Exploded View of Limited Slip Differential (Conquest)
G60884Courtesy of CHRYSLER MOTORS.

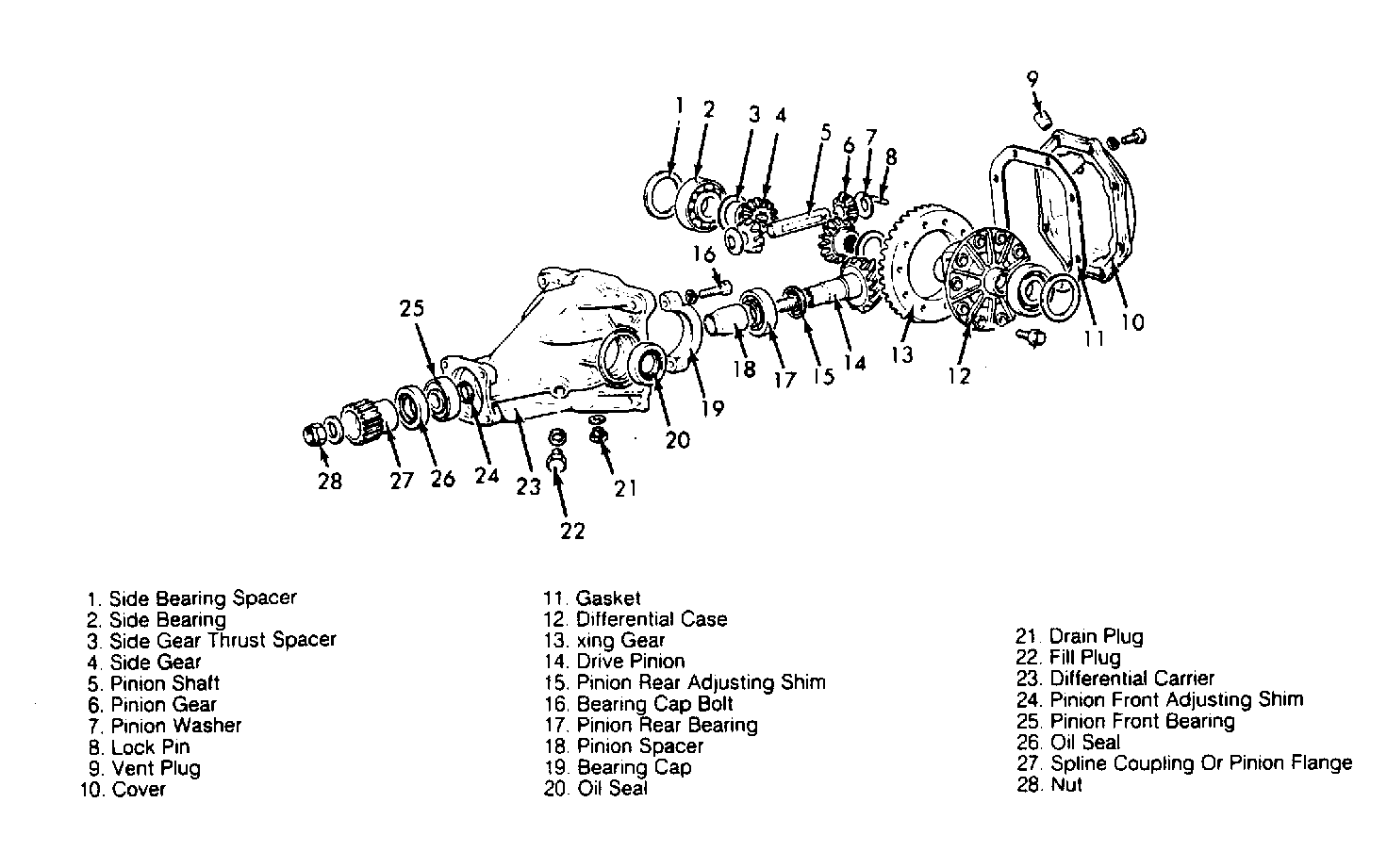

Fig 2: Exploded View of Conventional Differential
G60885Courtesy of CHRYSLER MOTORS.
