Operational Check

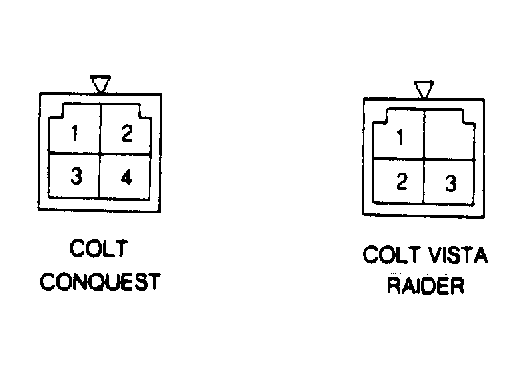

- Disconnect wiring connector from wiper motor. Connect battery positive voltage to one terminal and battery negative voltage to another terminal to ensure automatic operation. Refer to REAR WIPER MOTOR OPERATIONAL CHECK for terminal numbers and model application. See Fig 1 .
REAR WIPER MOTOR OPERATIONAL CHECK
| Model | Voltage (-) Pin No. | Voltage (+) Pin No. |
|---|---|---|
| Colt | 4 | 1 |
| Colt Vista | 3 | 1 |
| Conquest | 4 | 3 |
| Raider | 3 | 1 |
