Component Connector Identification Charts

Following charts give terminal identification of connectors by pin number, wire color and function. Use these charts and wiring diagram to assist in trouble shooting component failures.

Fig 1: 4-WAY AIS MOTOR CONNECTOR

Fig 2: 3-WAY DISTRIBUTOR CONNECTOR

Fig 3: 2-WAY PURGE SOLENOID CONNECTOR

Fig 4: POWER LOSS LIGHT INST. PANEL PRINTED CIRCUIT BOARD

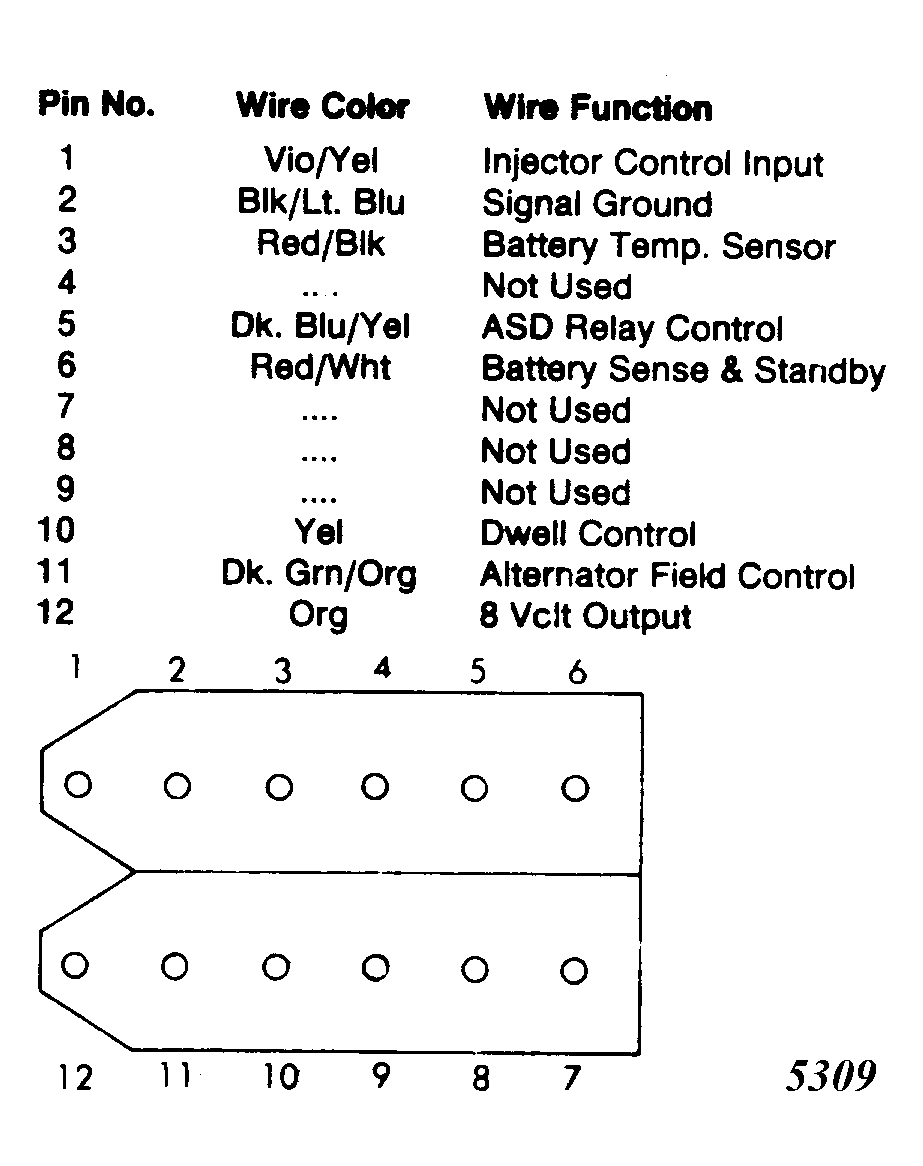

Fig 5: POWER MODULE 12-WAY CONNECTOR

Fig 6: 2-WAY COOLANT TEMPERATURE SENSOR CONNECTOR

Fig 7: 2-WAY SPEED SENSOR CONNECTOR

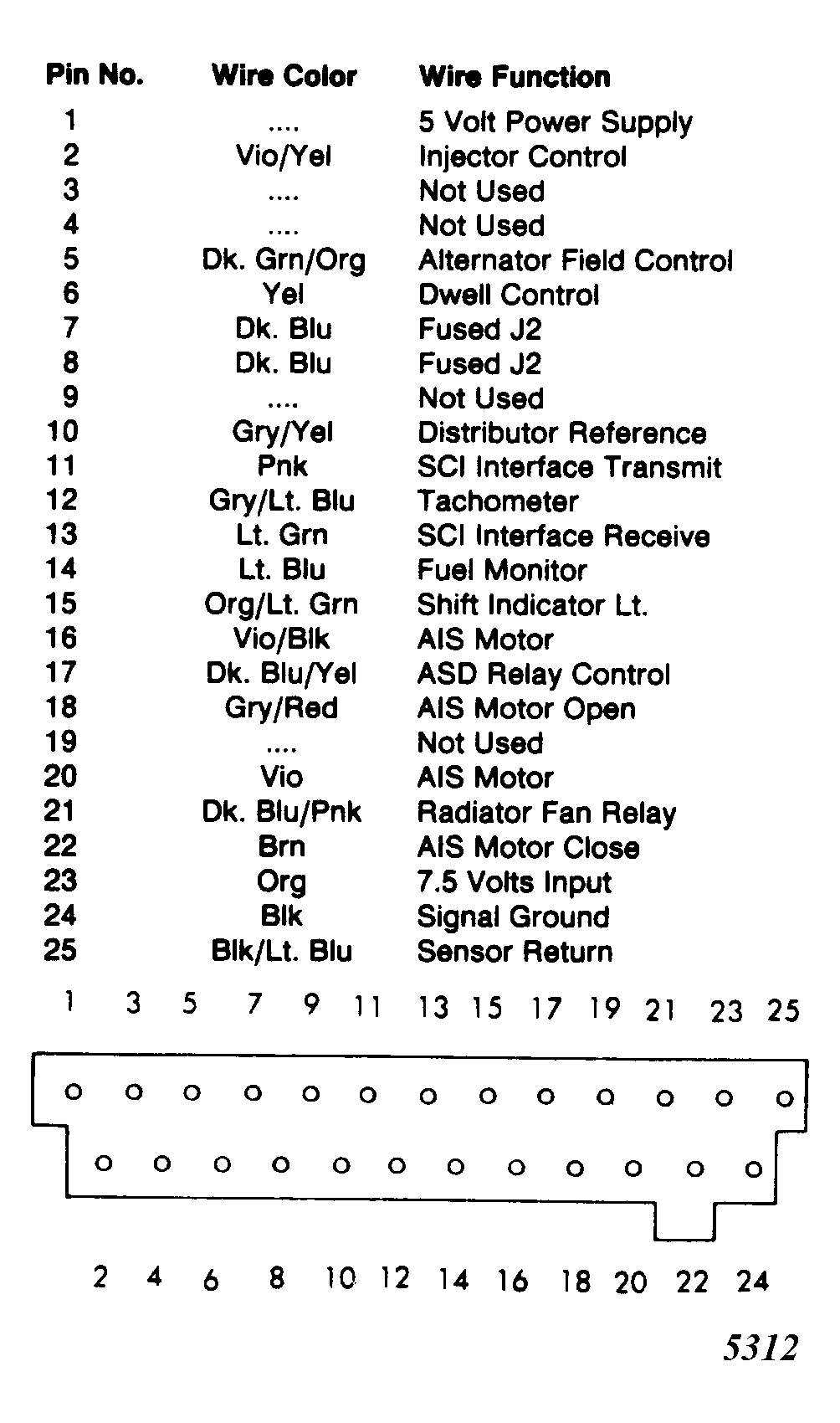

Fig 8: LOGIC MODULE NO. 1 CONNECTOR (WHITE)

Fig 9: 4-WAY A/C WOT CUT-OUT RELAY CONNECTOR

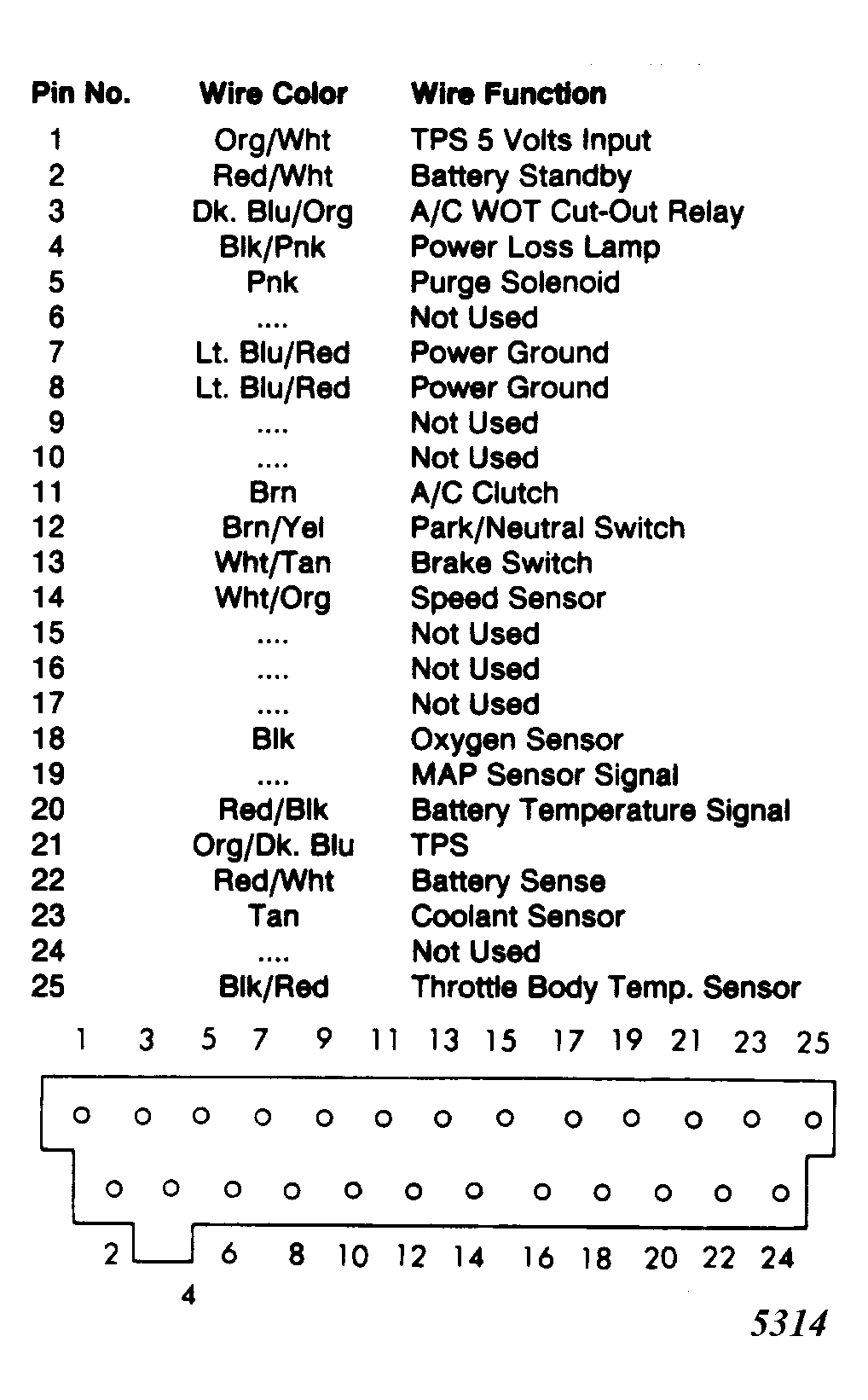

Fig 10: LOGIC MODULE NO. 2 CONNECTOR (BLACK)

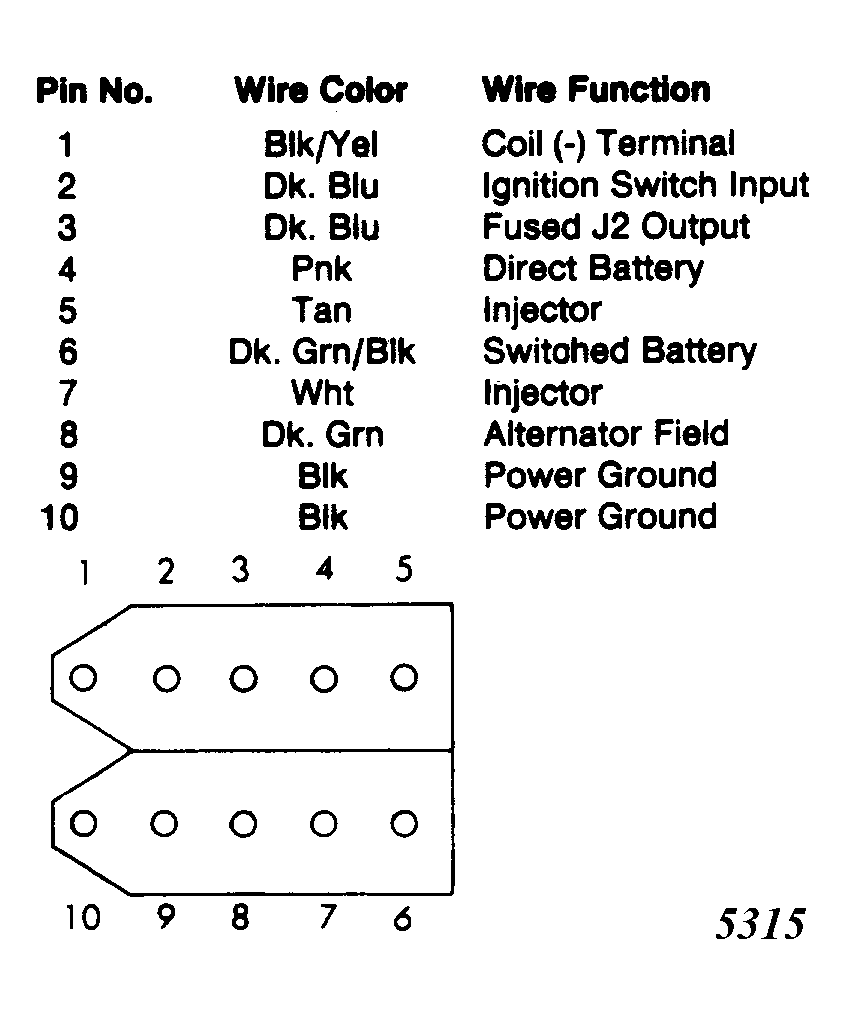

Fig 11: POWER MODULE 10-WAY CONNECTOR

Fig 12: 2-WAY THROTTLE BODY TEMPERATURE SENSOR CONNECTOR

Fig 13: 1-WAY OXYGEN SENSOR CONNECTOR

Fig 14: 3-WAY RADIATOR FAN RELAY CONNECTOR (NATURAL)

Fig 15: 3-WAY MAP SENSOR CONNECTOR

Fig 16: 3-WAY THROTTLE POSITION SENSOR CONNECTOR

Fig 17: 3-WAY RADIATOR FAN RELAY CONNECTOR (BLACK)
