Connector Identification

Fig 1: Logic Module Pins (Non-Turbo) Black Connector (Connector 2)

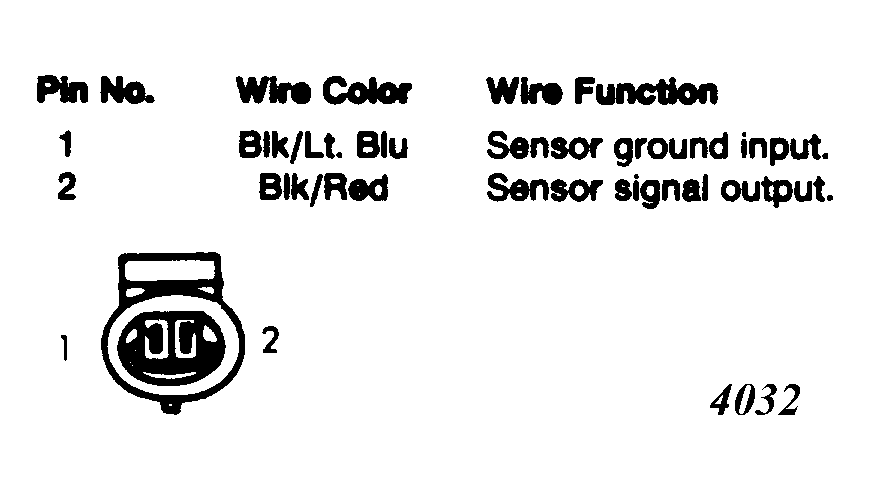

Fig 2: 2-Way Speed Sensor Connector (All Models)

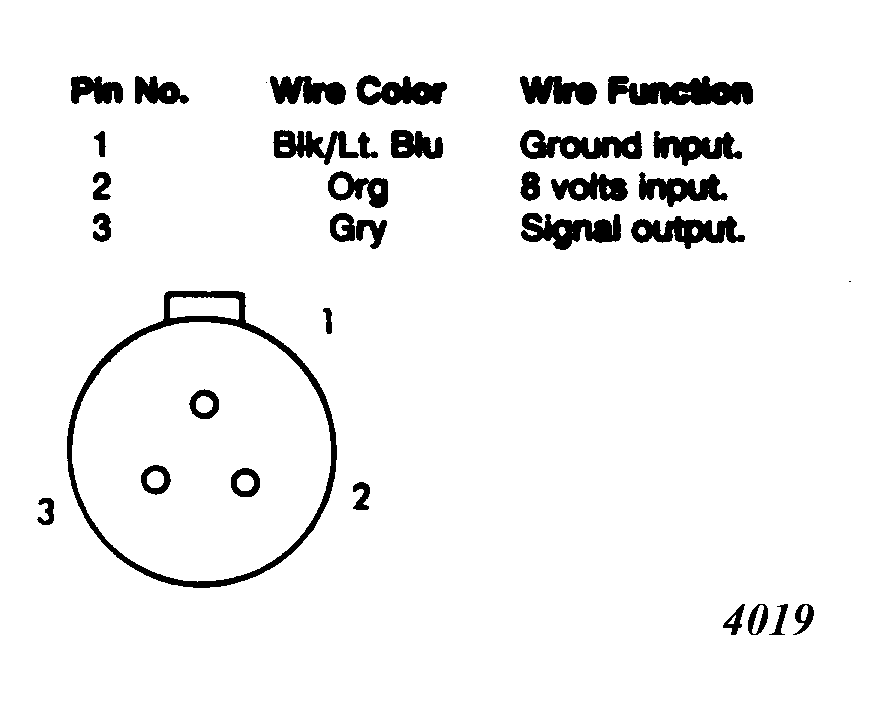

Fig 3: 3-Way Map Sensor Connector (Non-Turbo)

Fig 4: Coolant Temp. Sensor Connector (All Models) Terminal I.D.

Fig 5: Charge Temperature Sensor Connector Terminals (Turbo)

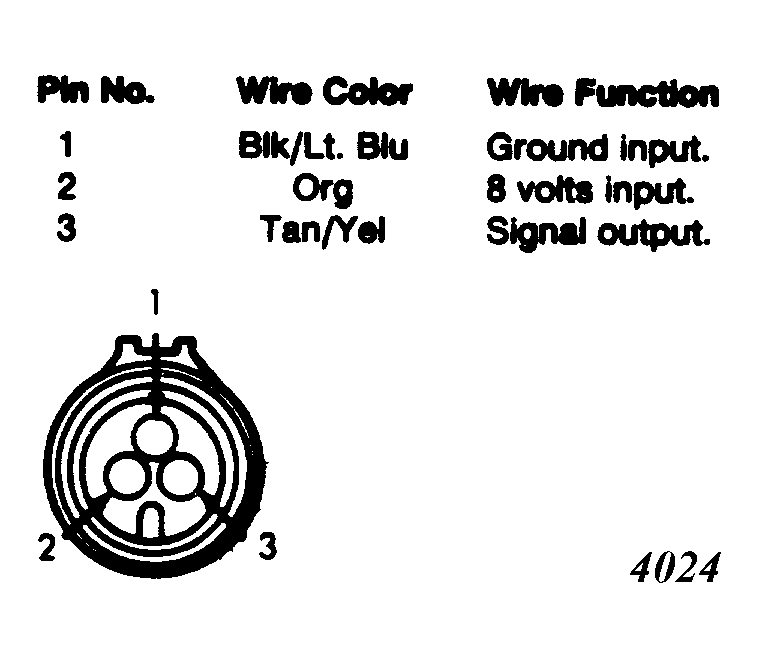

Fig 6: Map Sensor Connector Terminals (Turbo)

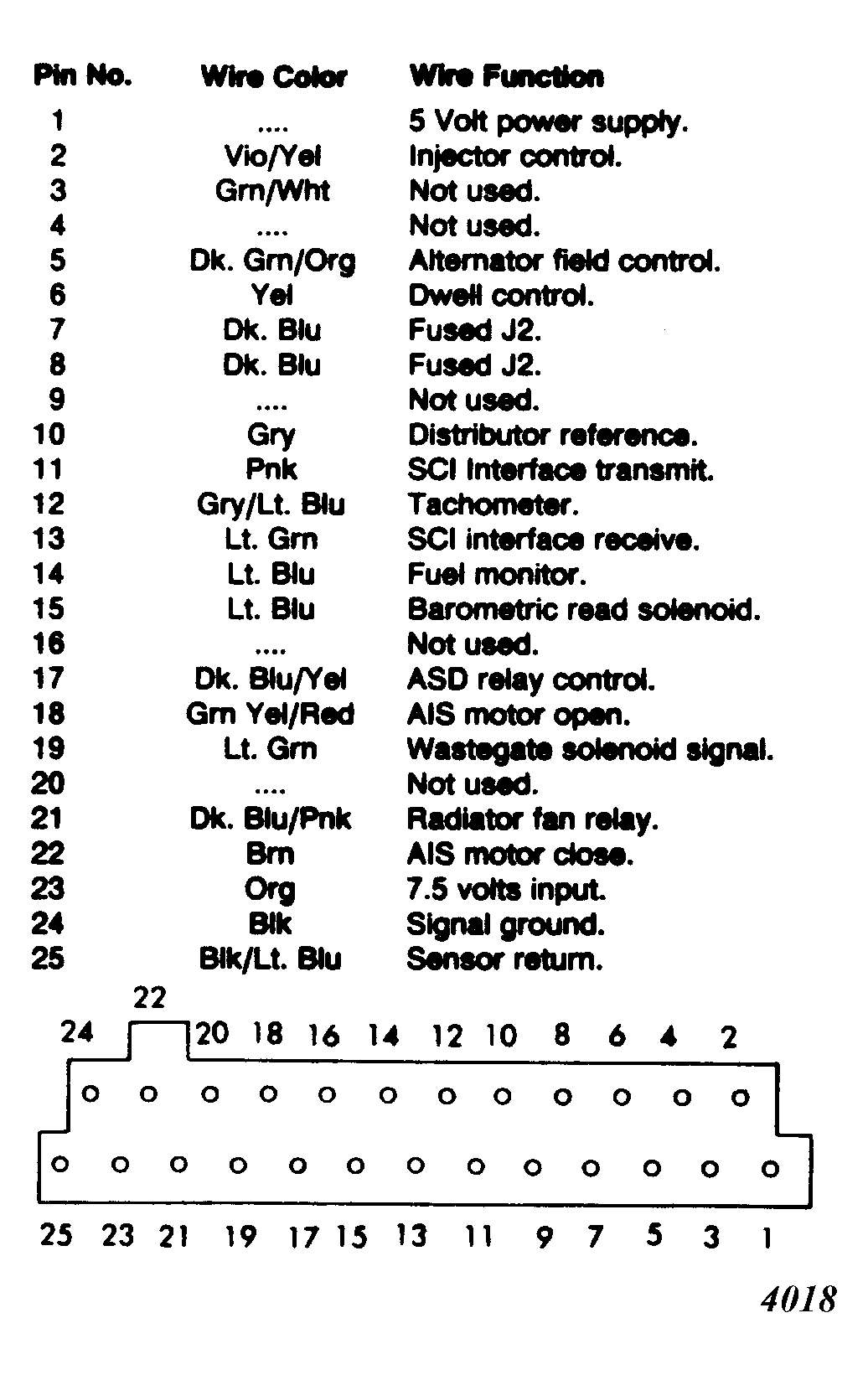

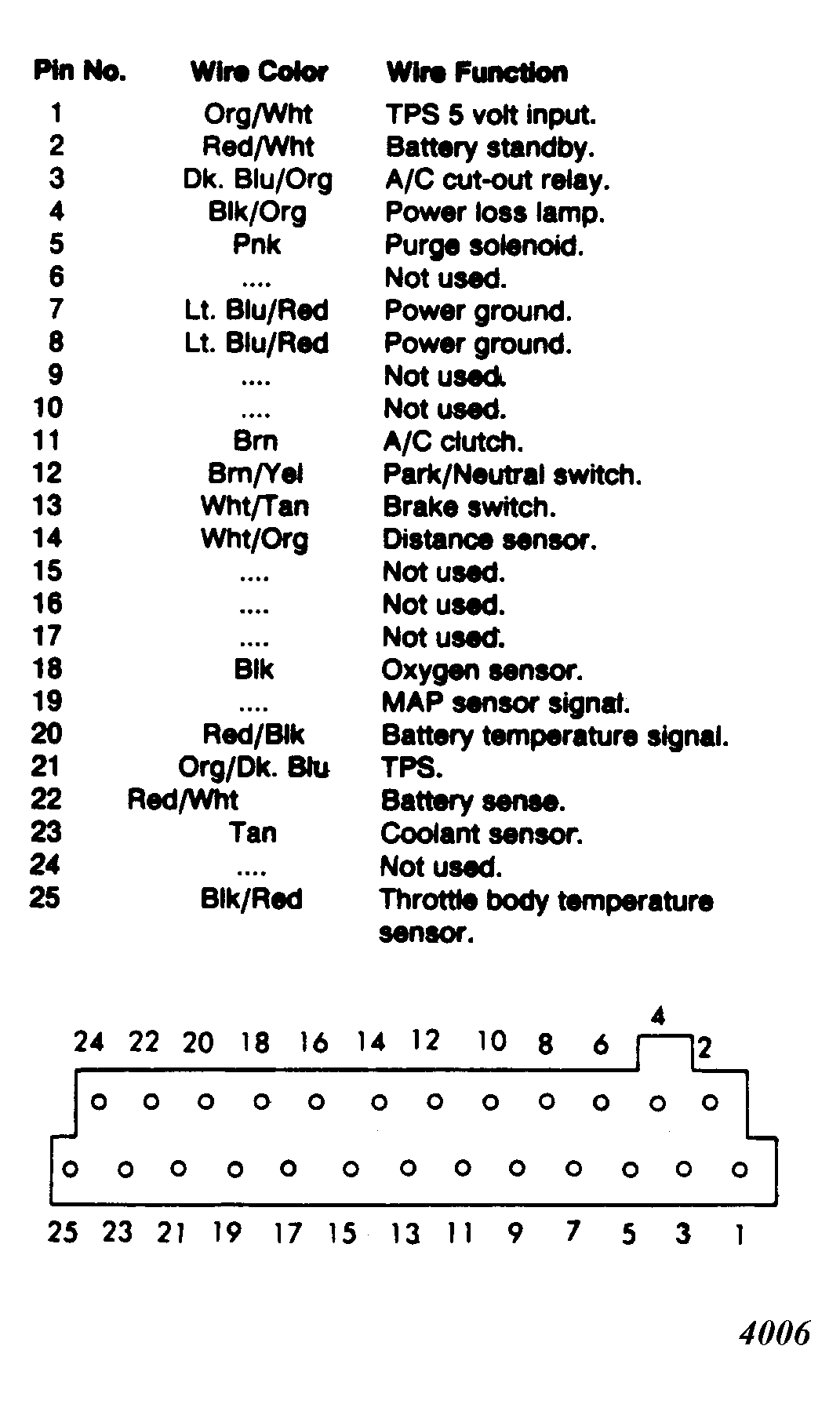

Fig 7: Logic Module Pins (Non-Turbo) White Connector No. 1

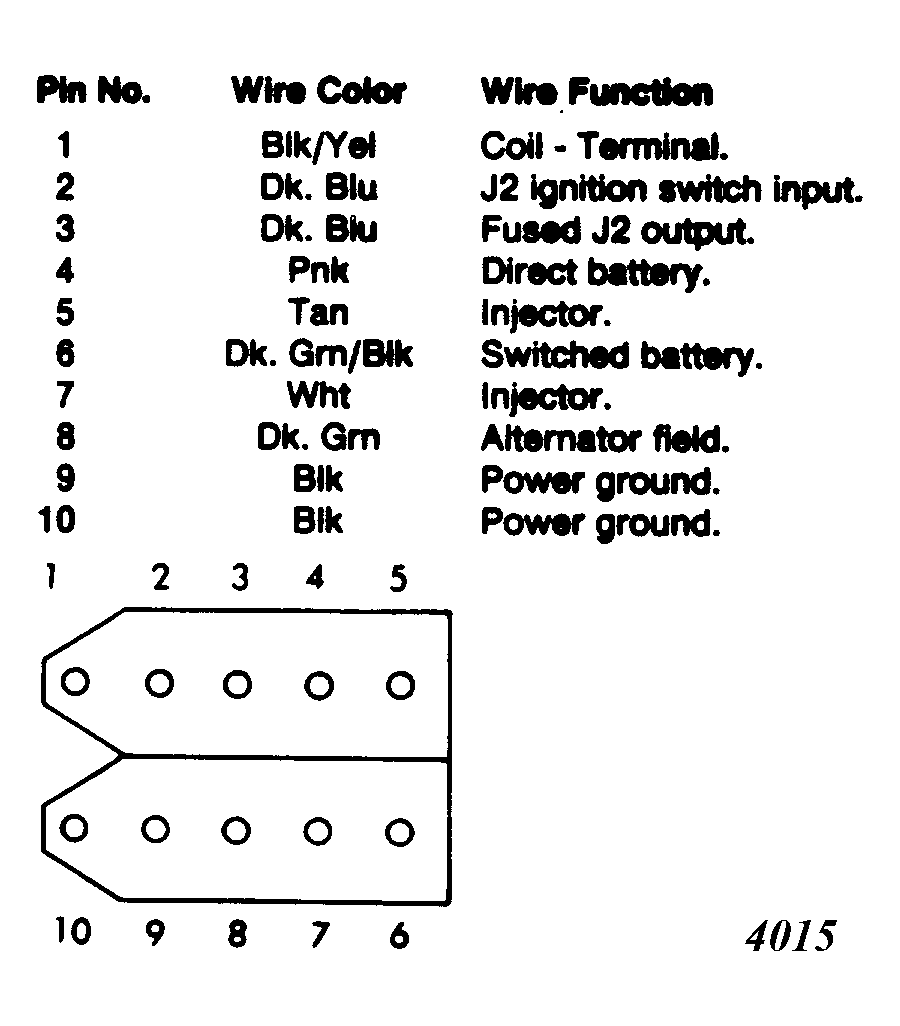

Fig 8: Power Module Pins-10-Pin Connector (Non-Turbo)

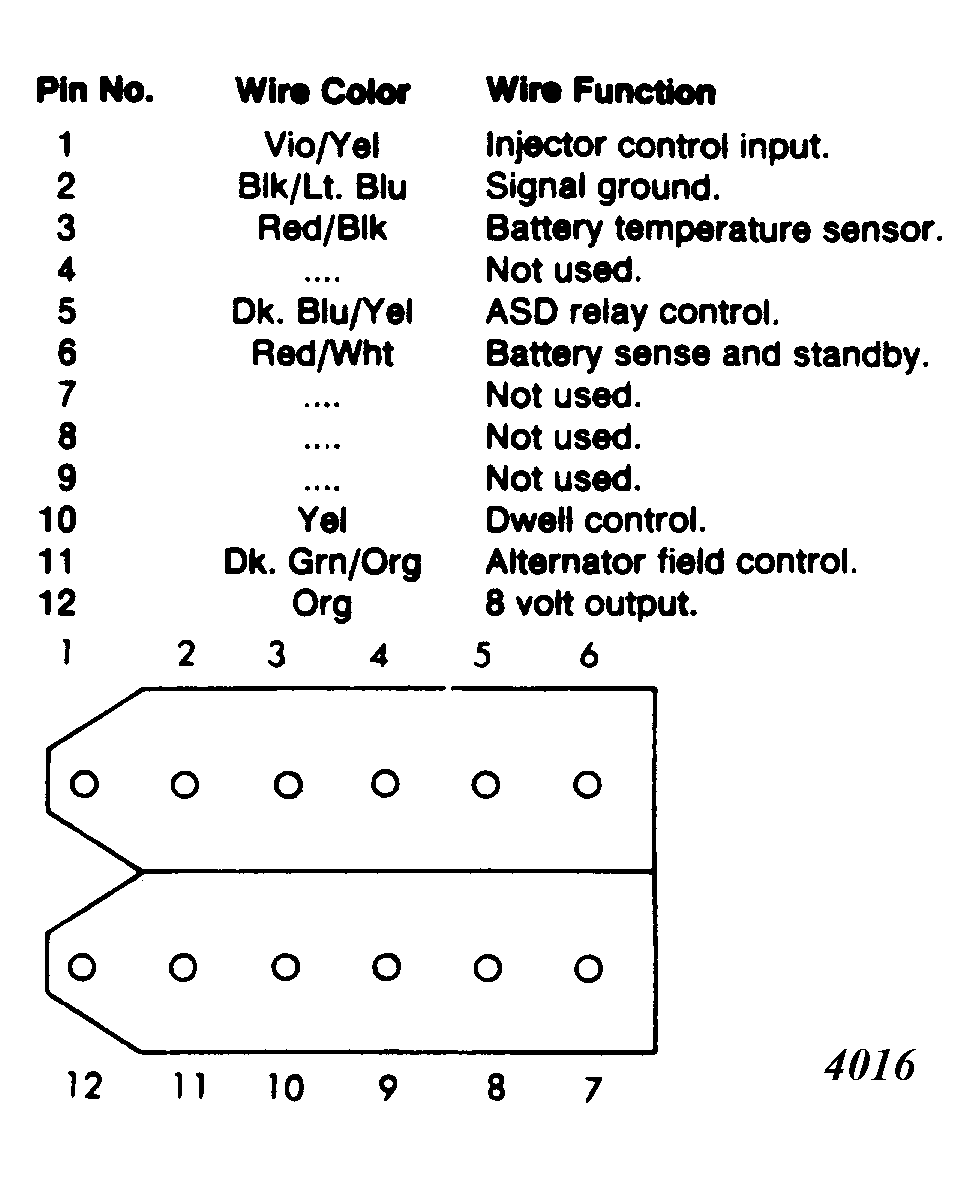

Fig 9: Power Module Pins-12-Pin Connector (Non-Turbo)

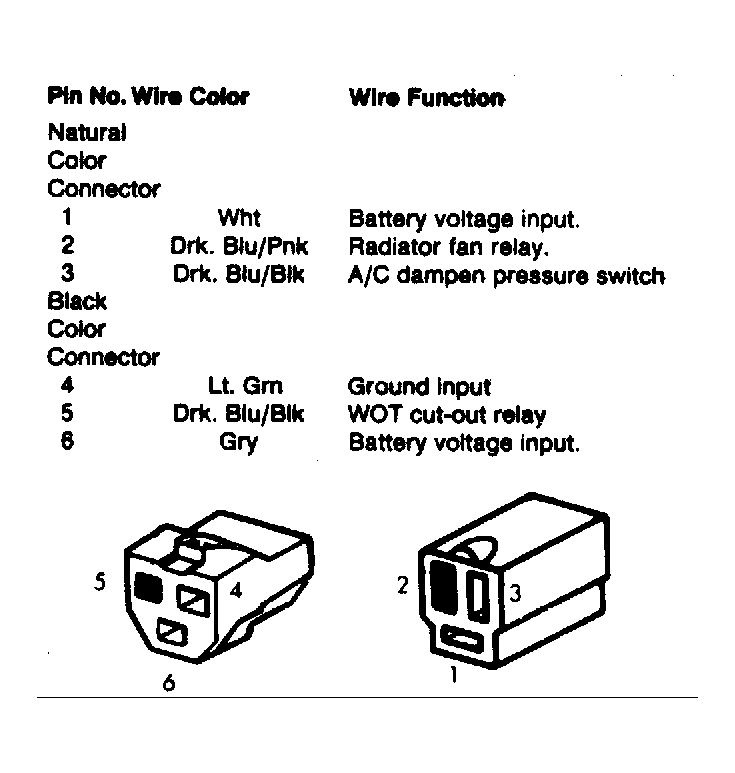

Fig 10: Radiator Fan Relay (Turbo) Two 3-Way Connectors

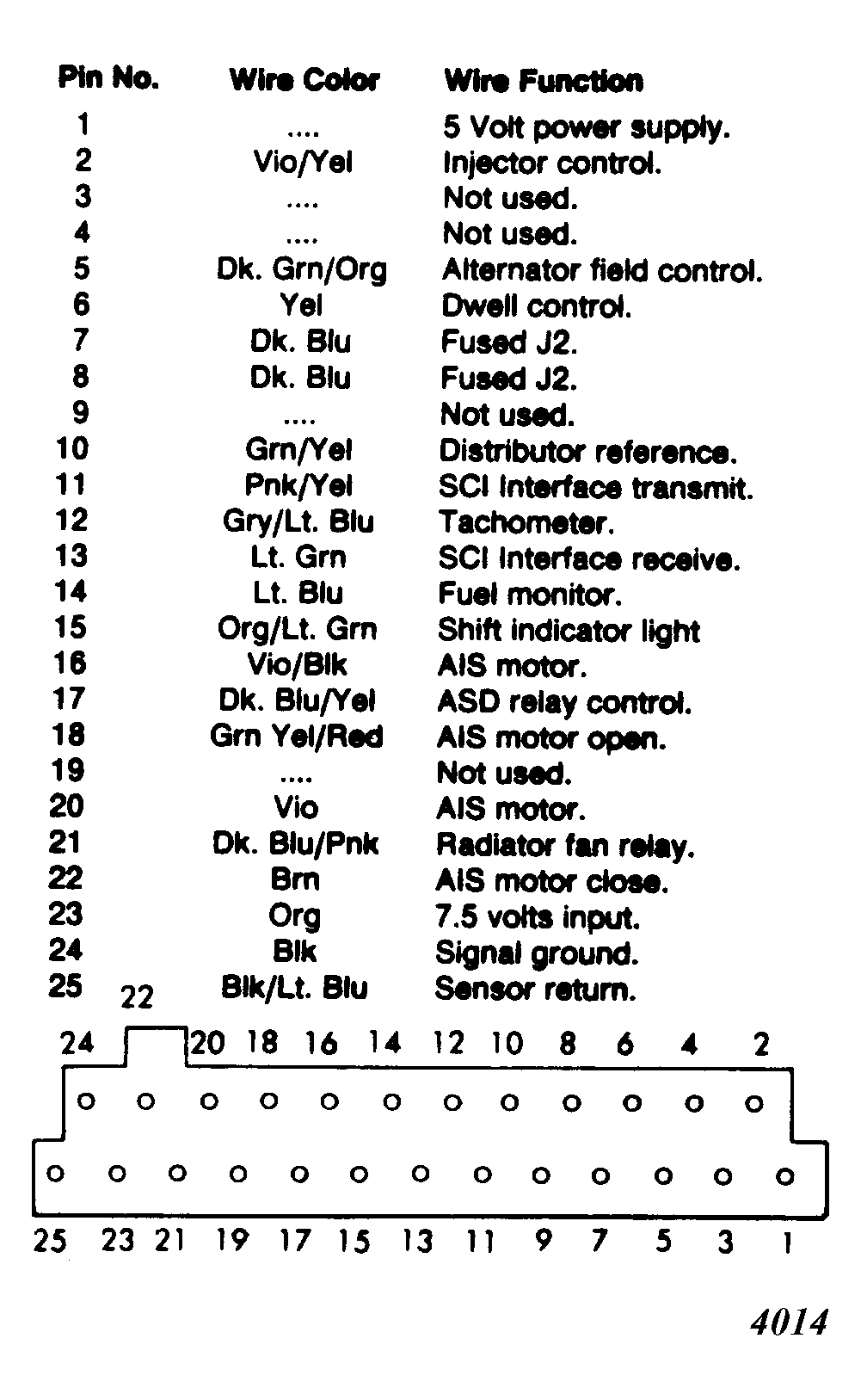

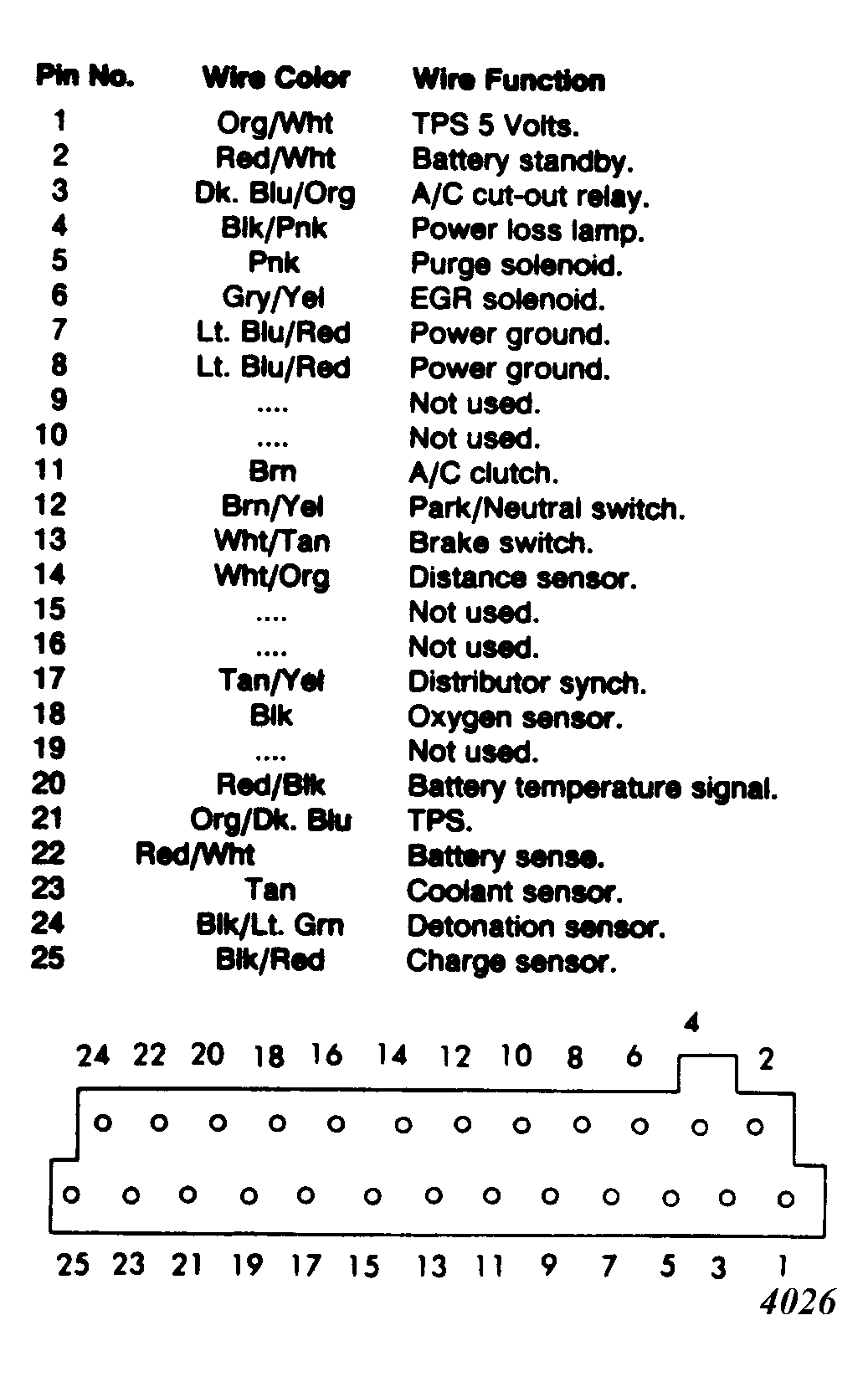

Fig 11: Logic Module Pins (Turbo) Red Connector (Connector 1)

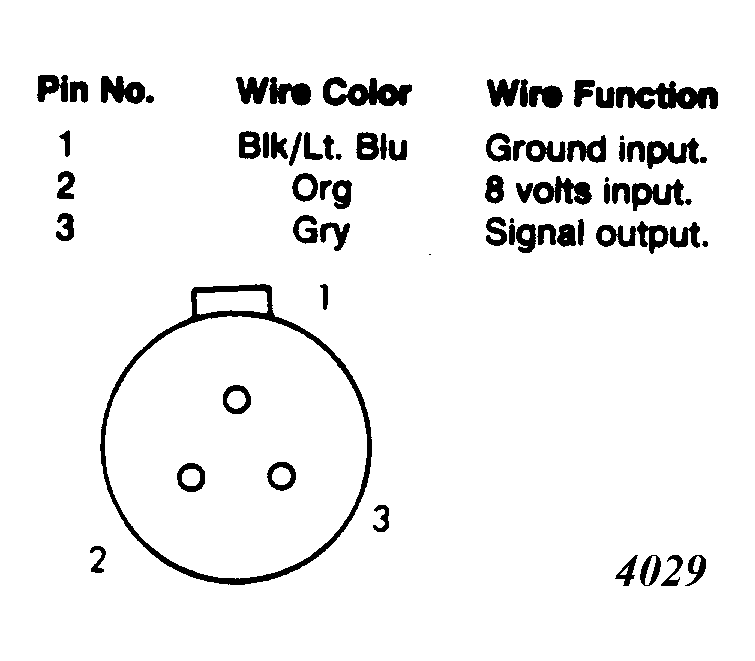

Fig 12: 3-Way Distributor Connector (Non-Turbo) Terminal I.D.

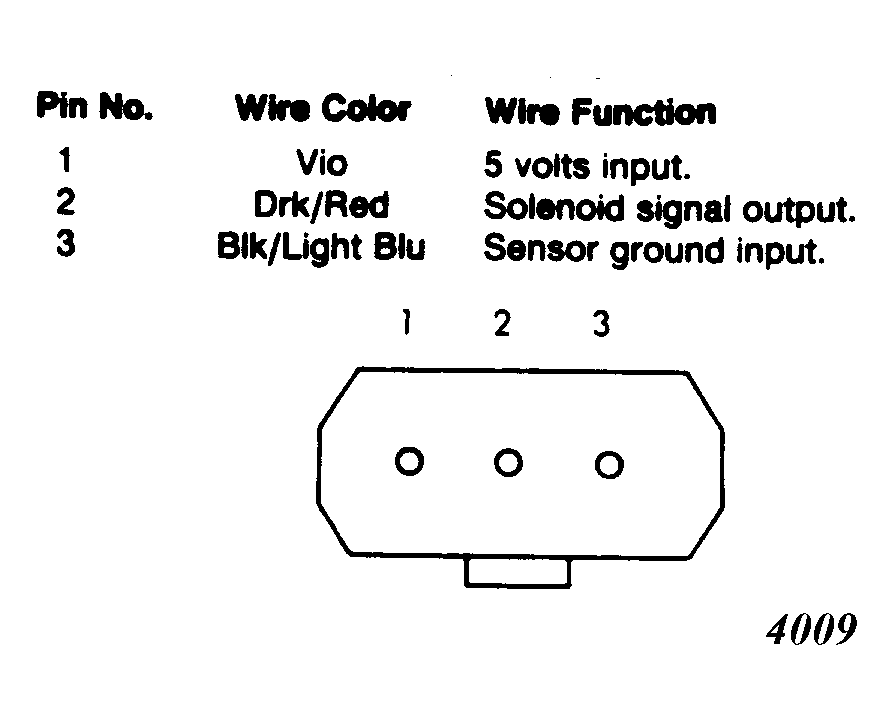

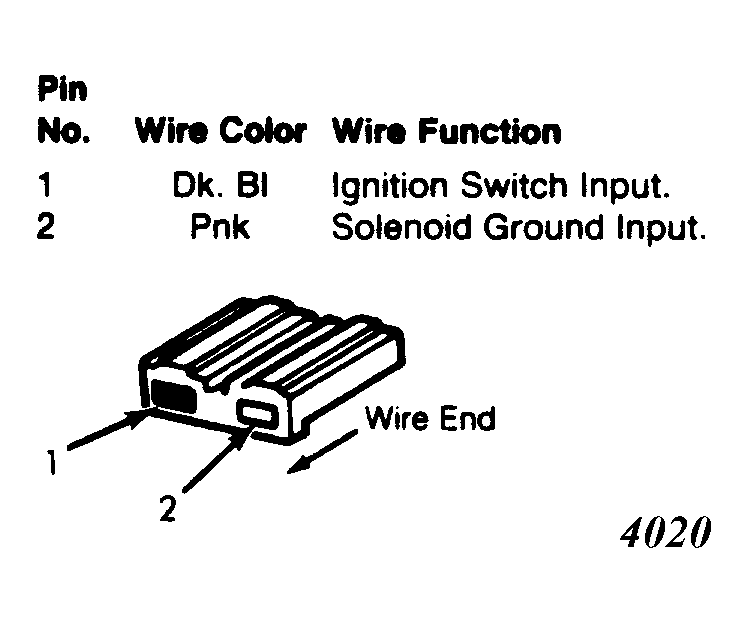

Fig 13: Purge Solenoid Connector Terminals (Non-Turbo)

Fig 14: EGR/Purge Solenoid Connector Terminals (Turbo)

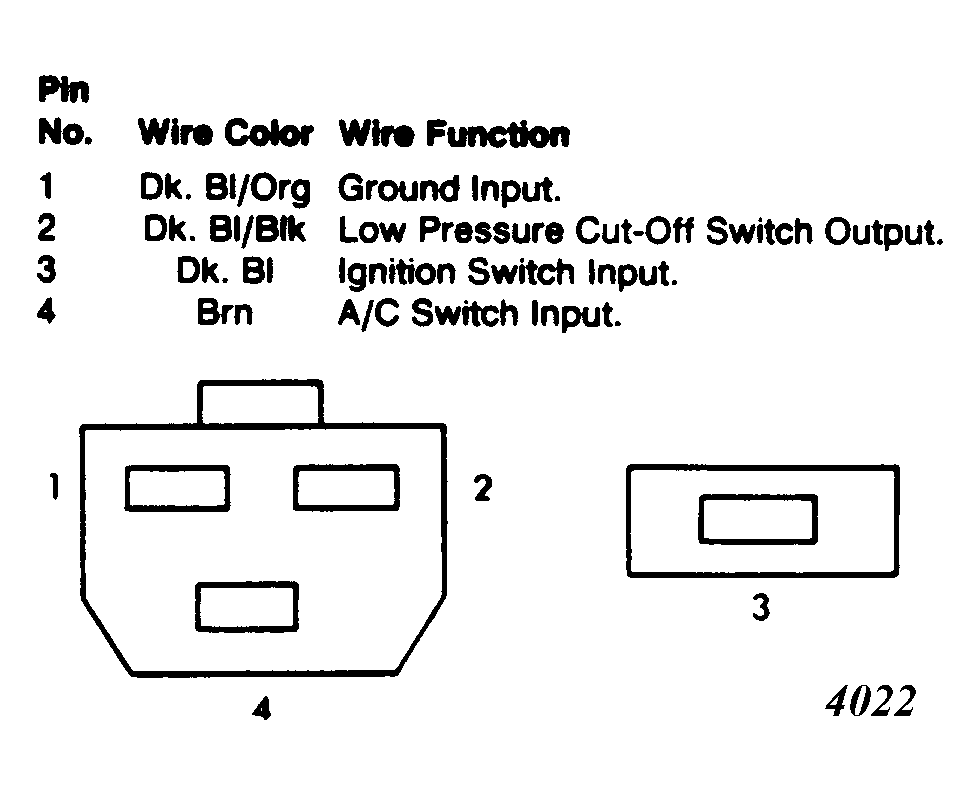

Fig 15: WOT-A/C Relay Connector Terminals (All Models)

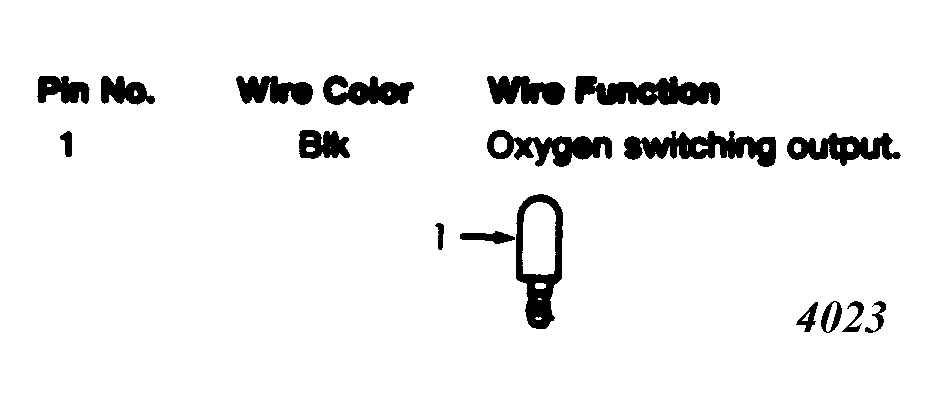

Fig 16: Oxygen (O2) Sensor Connector Terminal Identification

Fig 17: 3-Way Gray Distributor Synch Connector (Turbo)

Fig 18: Power Module Pins-10-Pin Connector (Turbo)

Fig 19: Logic Module Pins (Turbo) Blue Connector

Fig 20: Power Module Pins - 12-Pin Connector (Turbo)

Fig 21: ASD Relay Connector Terminal Identification

Fig 22: 3-Way Black Distributor Reference Connector (Turbo)

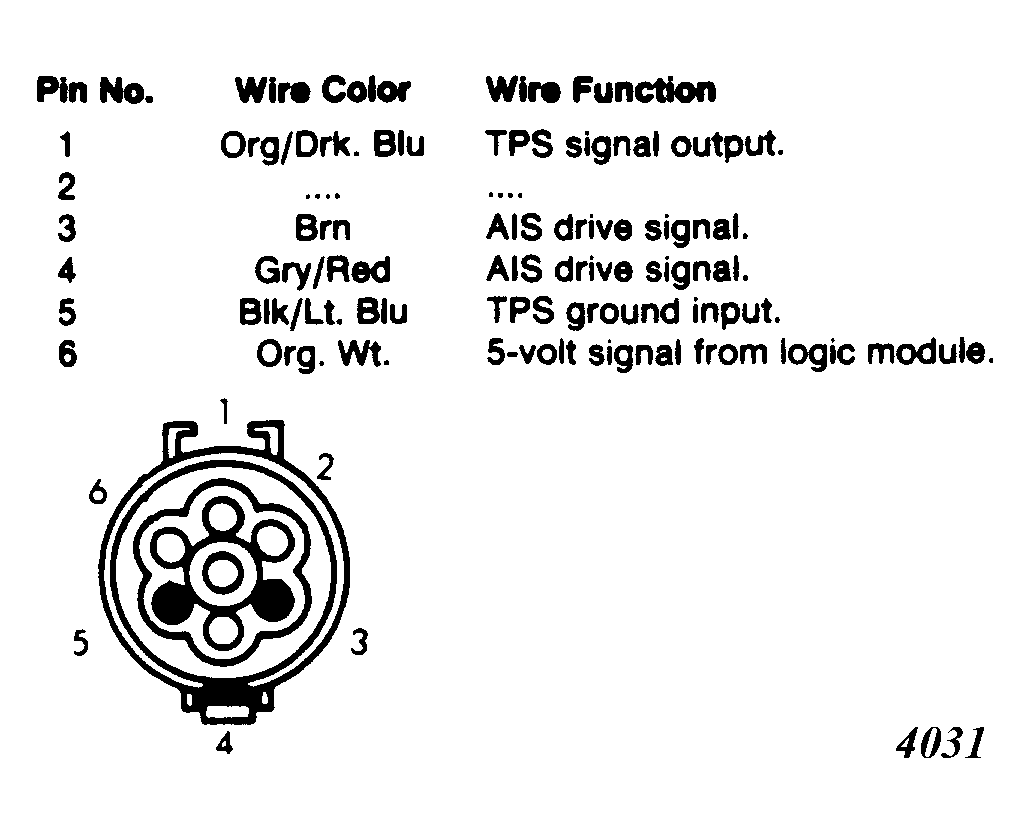

Fig 23: Throttle Position/AIS Motor Connector Terminal I.D.

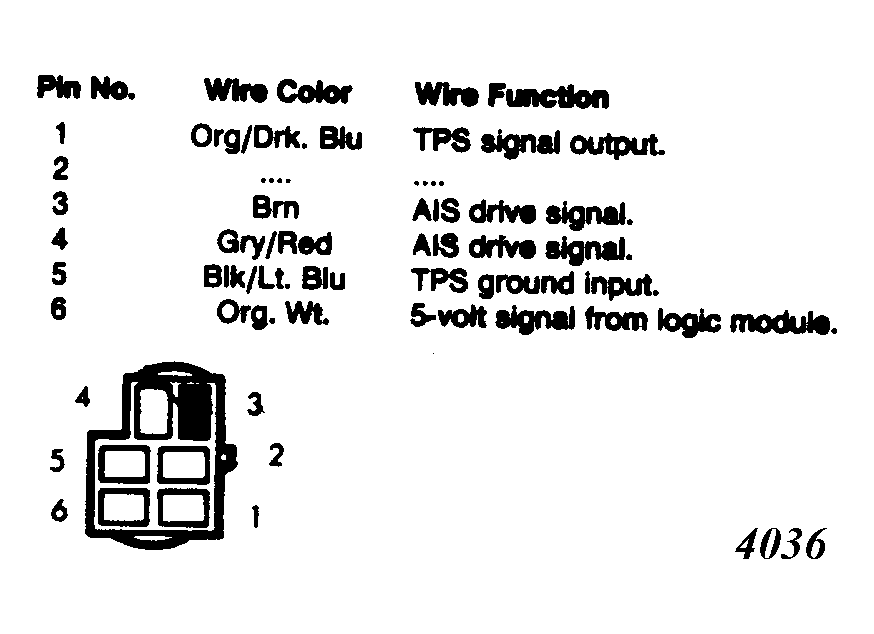

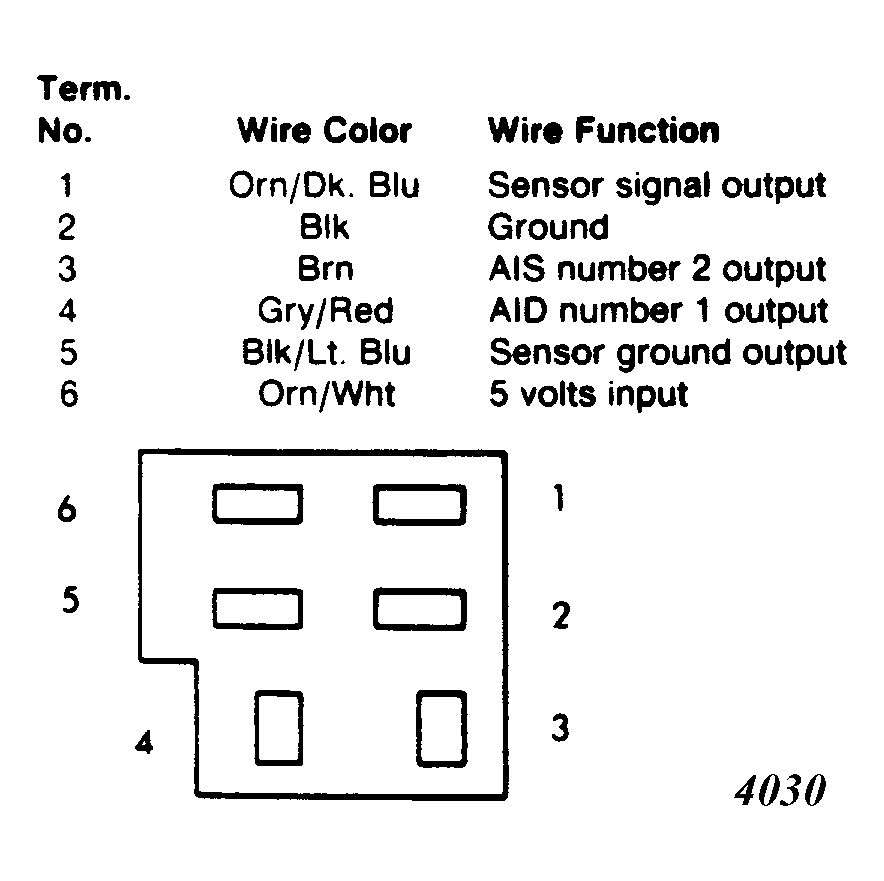

Fig 24: Throttle Body 6-Way Connector (Non-Turbo)

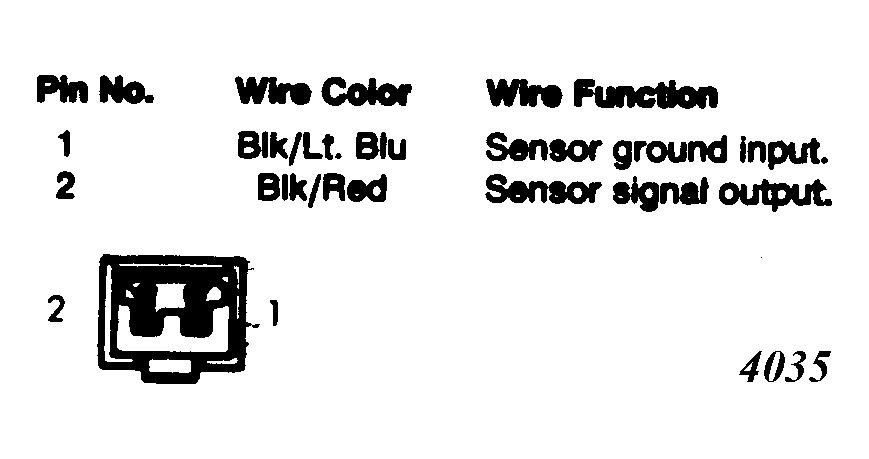

Fig 25: 2-Way Charge Temperature Sensor Connector (Turbo)

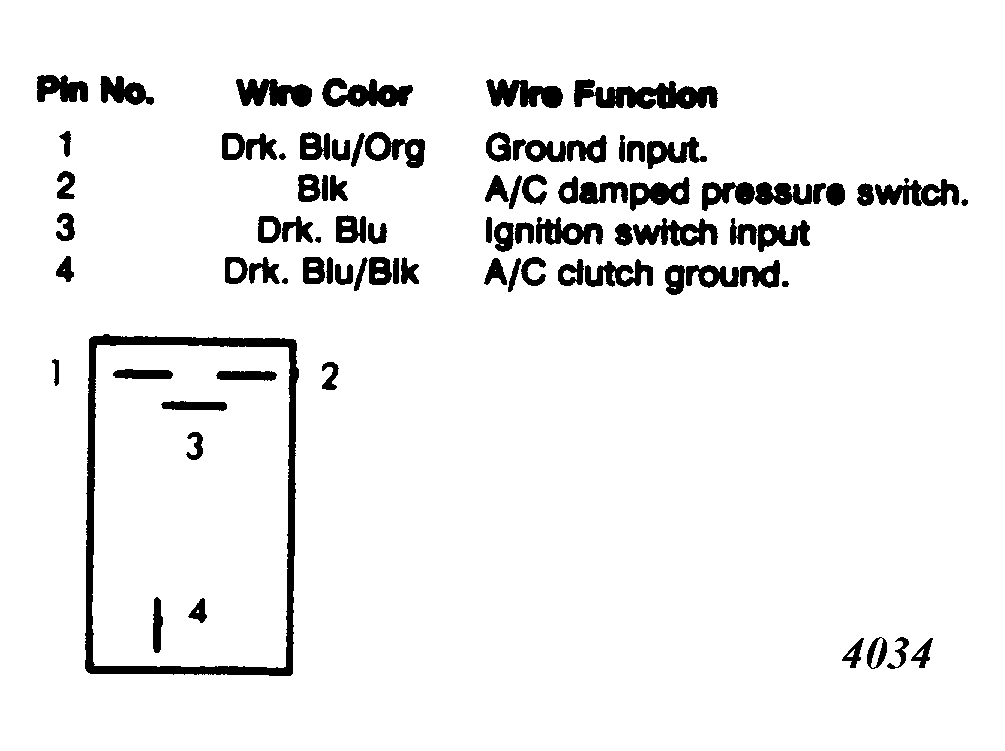

Fig 26: 4-Way Wide Open Throttle A/C Relay (Turbo)

Fig 27: Throttle Body 6-Way Connector (Turbo)

Fig 28: 2-Way Throttle Body Temperature Sensor (Non-Turbo)

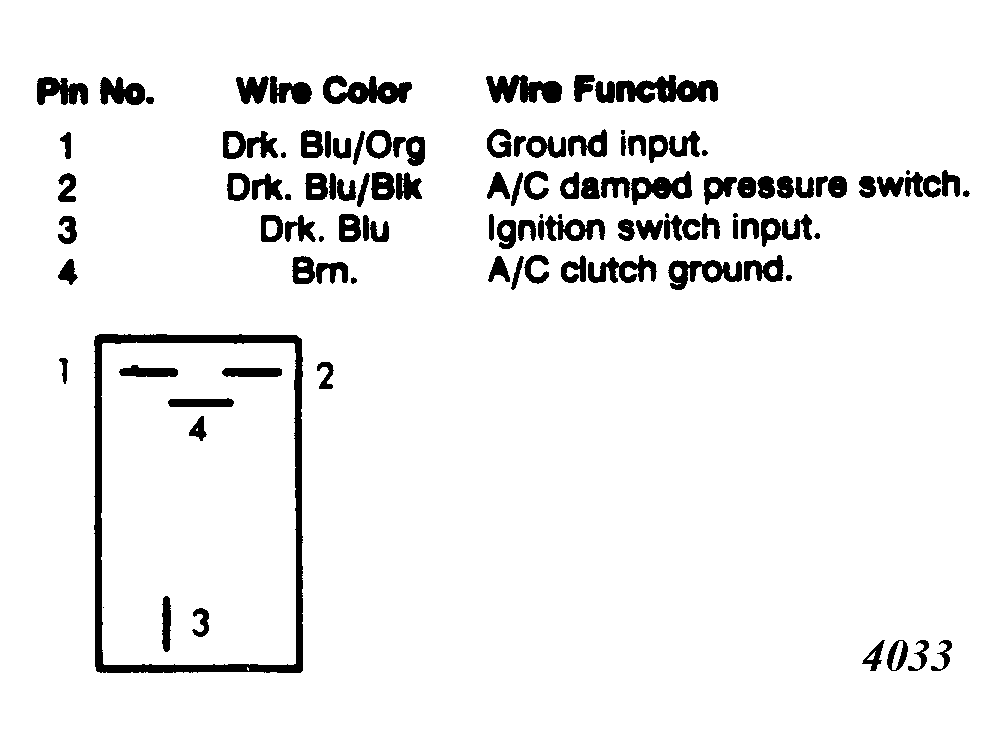

Fig 29: 4-Way Wide Open Throttle A/C Relay (Non-Turbo)

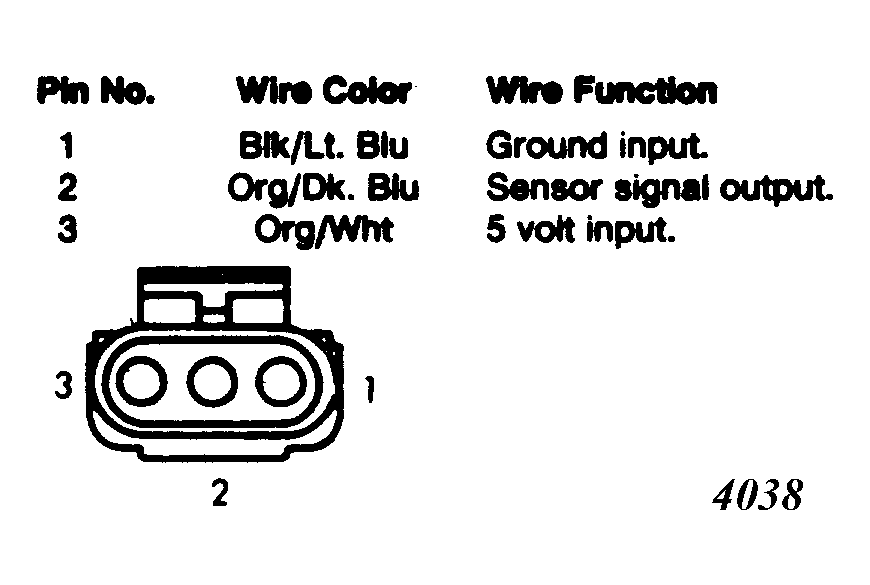

Fig 30: 3-Way Throttle Position Sensor Terminal I.D.

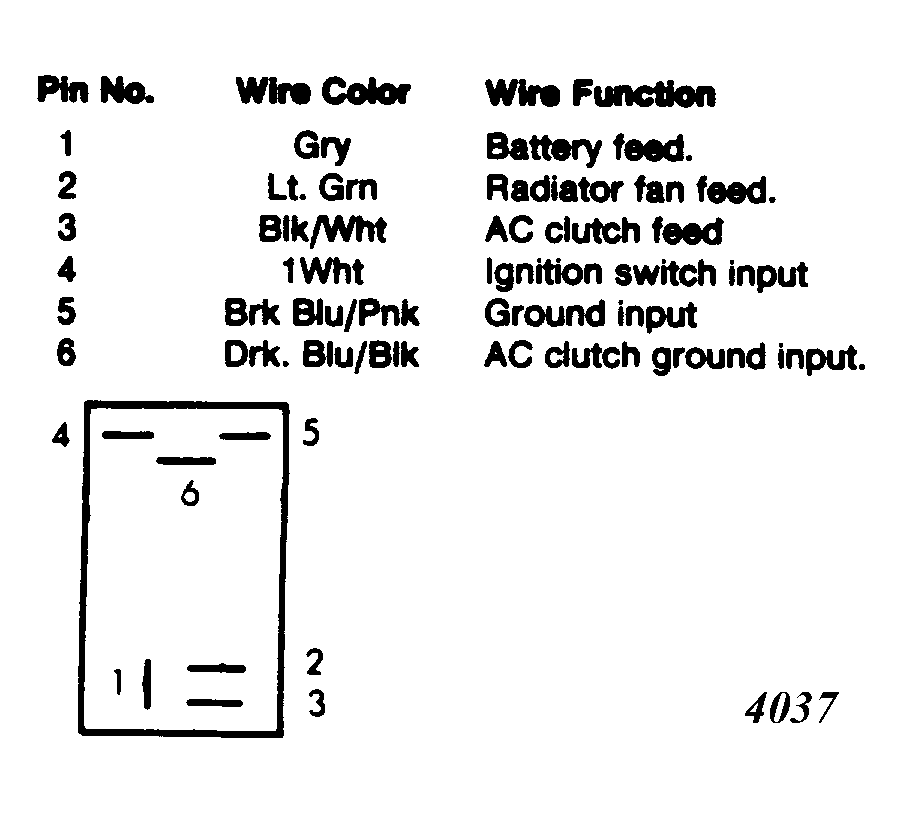

Fig 31: Radiator Fan Relay (Non-Turbo)

4-WAY AIS MOTOR CONNECTOR TERMINAL ID

POWER LOSS LAMP INSTRUMENT PANEL PRINTED CKT BOARD TERMINAL ID (NON-TURBO)

Pin No.	Wire Color	Wire Function
1	Dark Blue	Ignition Switch Input
2	Black/Pink	Ground Input

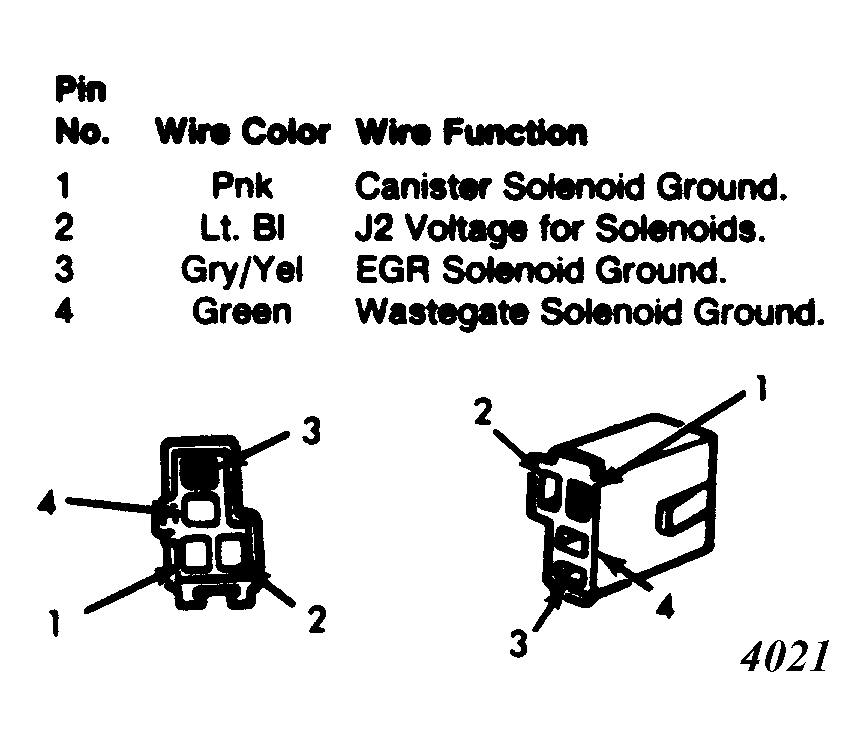

SOLENOID BANK CONNECTOR (TURBO) 4-WAY & 1-WAY
