FWD Models Only

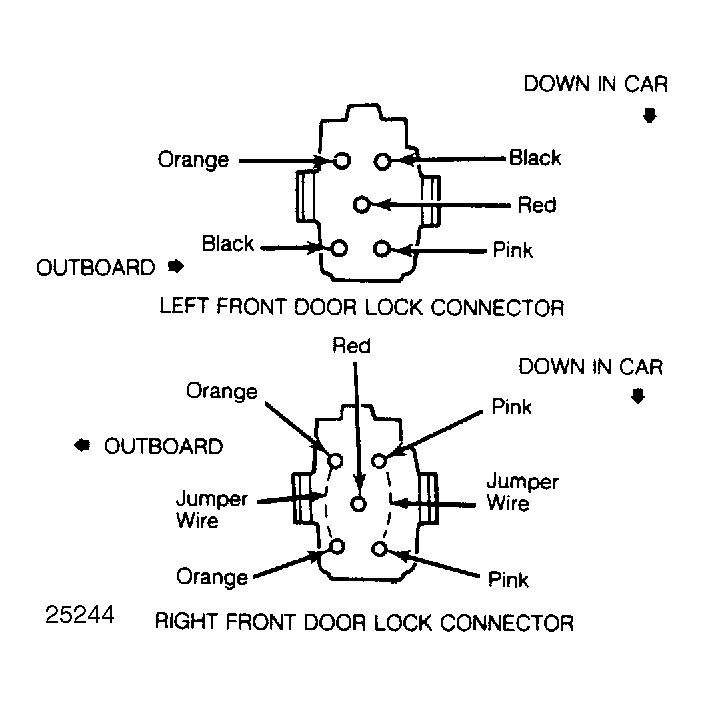

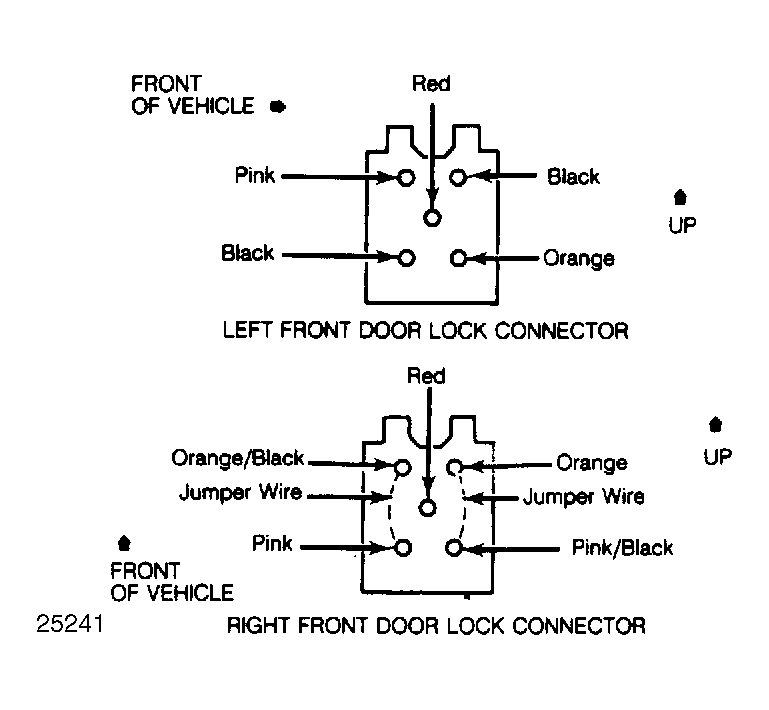

Connect jumper wires at right side switch connector. See Figure through Figure . Operate locks using left connector and jumper wire. Jumping Orange to Red and Pink to Black or Gray should lock doors. Jumping Pink to Red and Orange to Black or Gray should unlock doors. If locks operate using jumper wires, replace switch.
