Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | ||
|---|---|---|---|
| A/C-Heater Blower Motor Resistor | On heater box. | ||

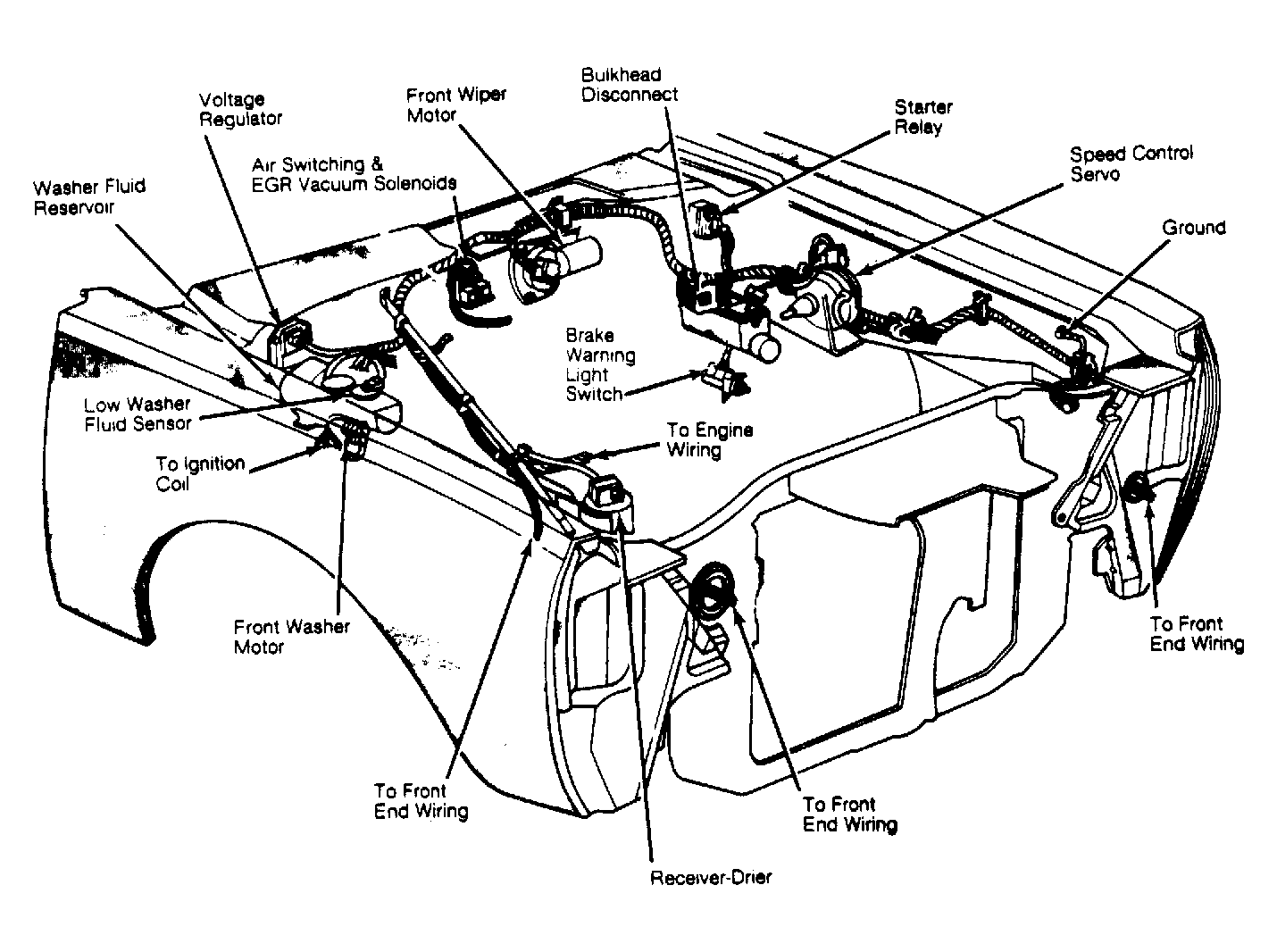

| Bulkhead Disconnect | At left rear of engine bay. See Figure. | ||

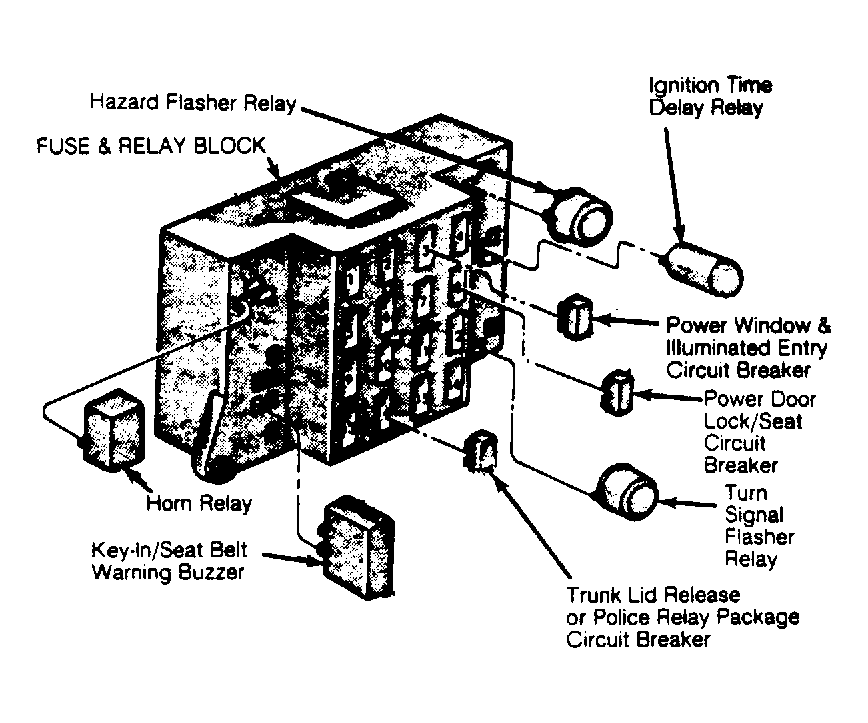

| Fuse & Relay Block | Under lower left side of instrument panel. See Figure. | ||
| Fusible Links | |||
| A/C-Heater (Orange/20 ga.) | Behind battery. | ||
| Accessories (Gray/18 ga.) | At rear of left front wheelwell. | ||
| Charging System | |||
| Standard (Dark Blue/16 ga.) | At rear of left front wheelwell. | ||
| 65-Amp (Red/14 ga.) | At rear of left front wheelwell. | ||
| 100-Amp (Black/12 ga.) | At rear of left front wheelwell. | ||
| Hazard Flasher (Orange/20 ga.) | Behind battery. | ||
| Ignition Switch (Gray (18 ga.) & Orange (20 ga.)) | At rear of left front wheelwell. | ||
| Rear Window Defrost (Gray/18 ga.) | At rear of left front wheelwell. | ||
| Ignition Ballast Resistor | On center of right inner fender panel. | ||
| Circuit Breakers | |||
| Power Door Lock/Seat | In fuse and relay block cavity No. 8. See Figure | ||
| Power Window & Illuminated Entry | In fuse and relay block cavity No. 3. See Figure. | ||
| Speed Control Servo | On left inner fender panel. See Figure. | ||
| Trunk Lid Release or Police Relay Package | In fuse and relay block cavity No. 14. See Figure. | ||

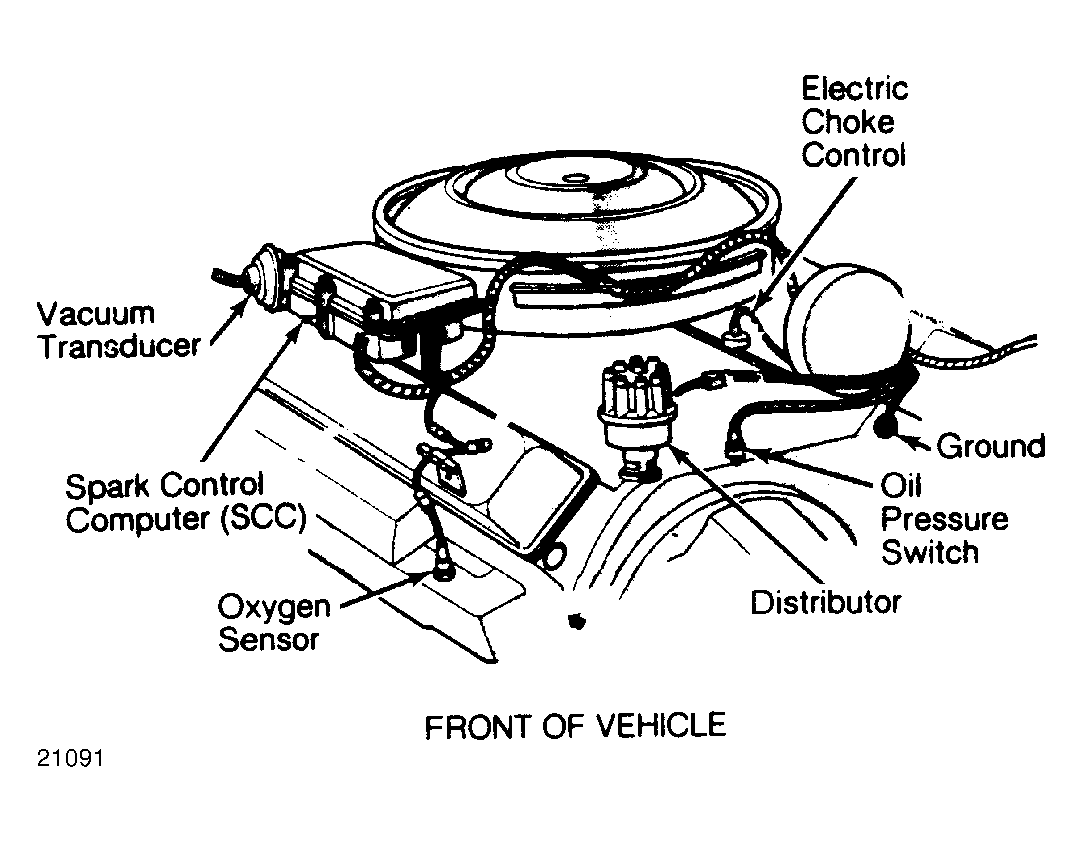

| Vacuum Transducer | On spark control computer. See Figure. | ||
