All Others

  1. Unplug left side switch connector. Connecting the Orange wire to battery voltage and the Pink wire to ground should lock the door locks. Connecting the Pink wire to battery voltage and the Orange wire to ground should unlock the door locks. See Fig 1 .
  2. Unplug the right side switch connector. Connecting the Orange/Black wire to battery voltage and the Pink/Black wire to ground should lock the door locks. Connecting the Pink/Black wire to battery voltage and the Orange/Black wire to ground should unlock the door locks. If the jumper wires operate the locks, the switch is at fault.

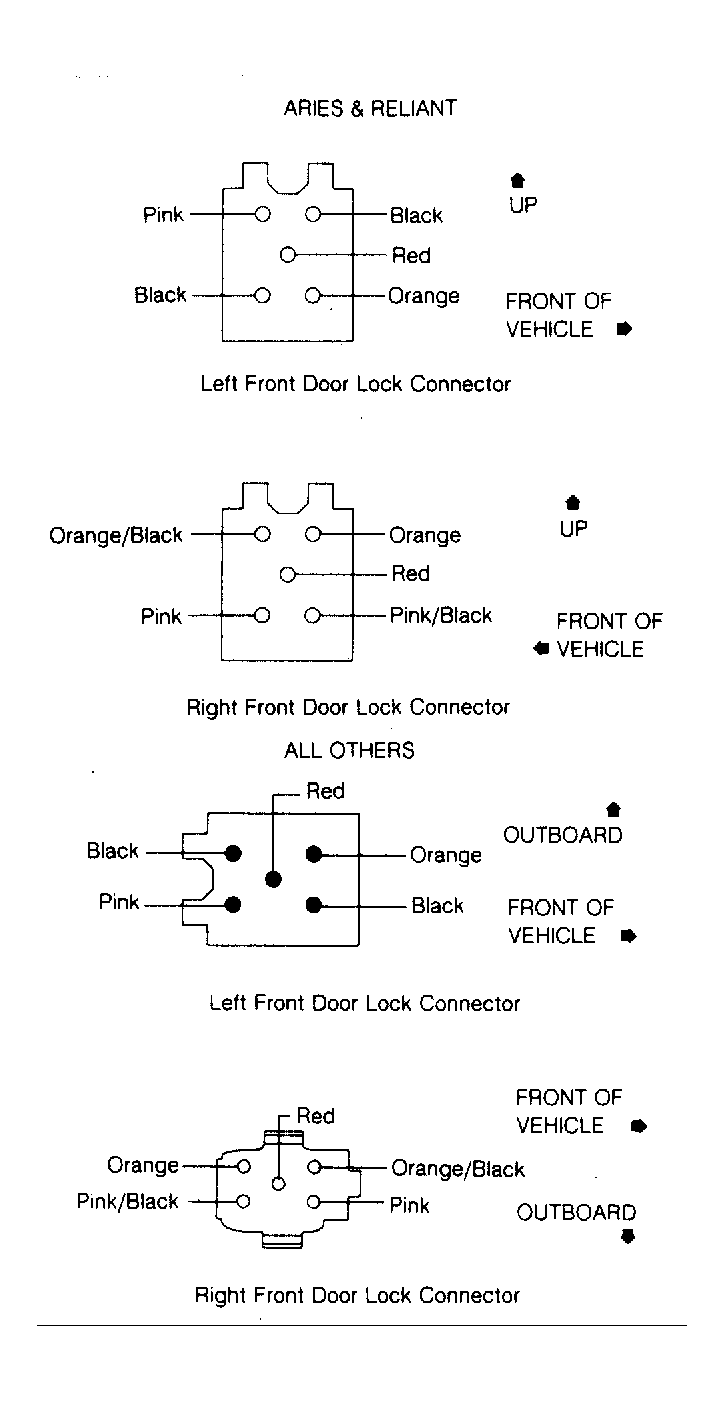

Fig 1: Door Lock Switch Connectors Test applies to front wheel drive models only.
G3628
