Wiring Diagrams

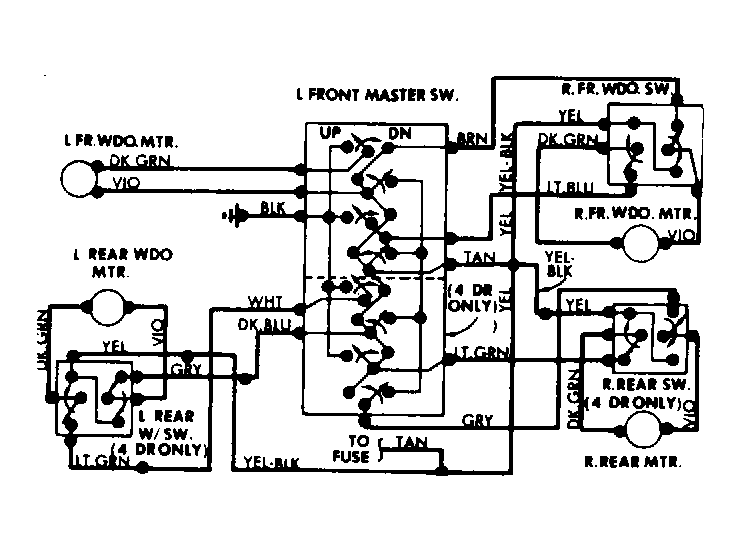

Fig 1: Rear Wheel Drive Models Power Window Wiring Diagram

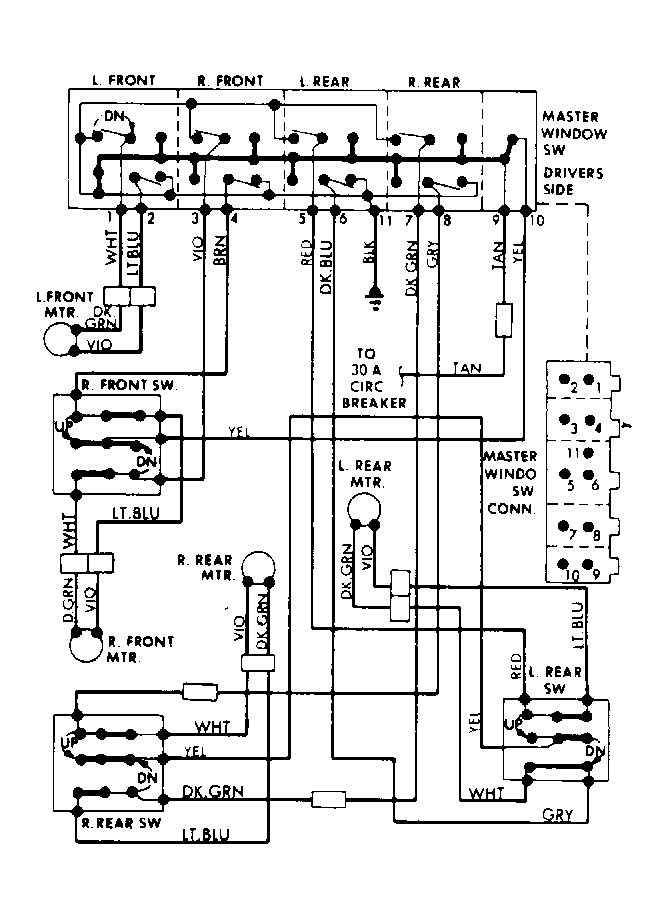

Fig 2: Aries and Reliant Power Window Wiring Diagram

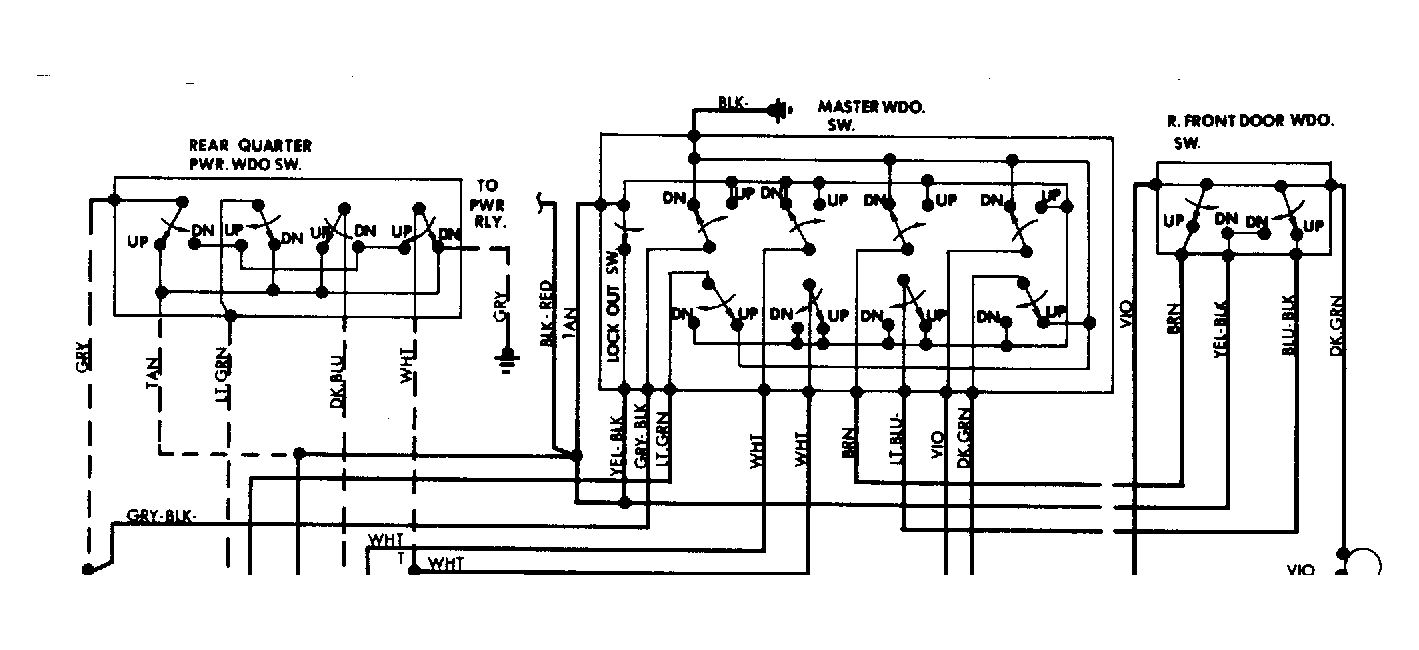

Fig 3: Daytona and Laser Power Window Wiring Diagram

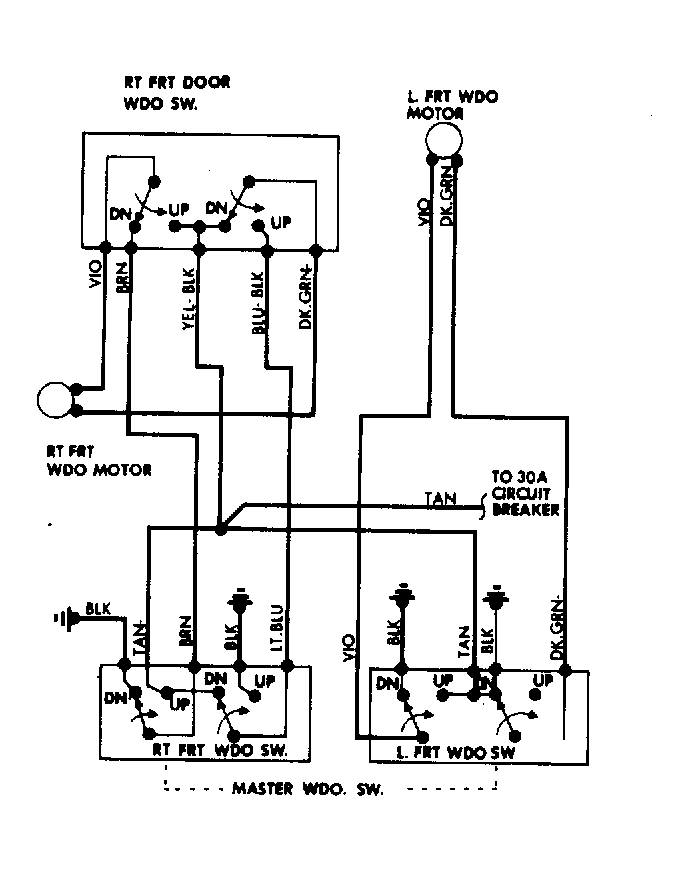

Fig 4: LeBaron and 600 Convertible Power Window Wiring Diagram

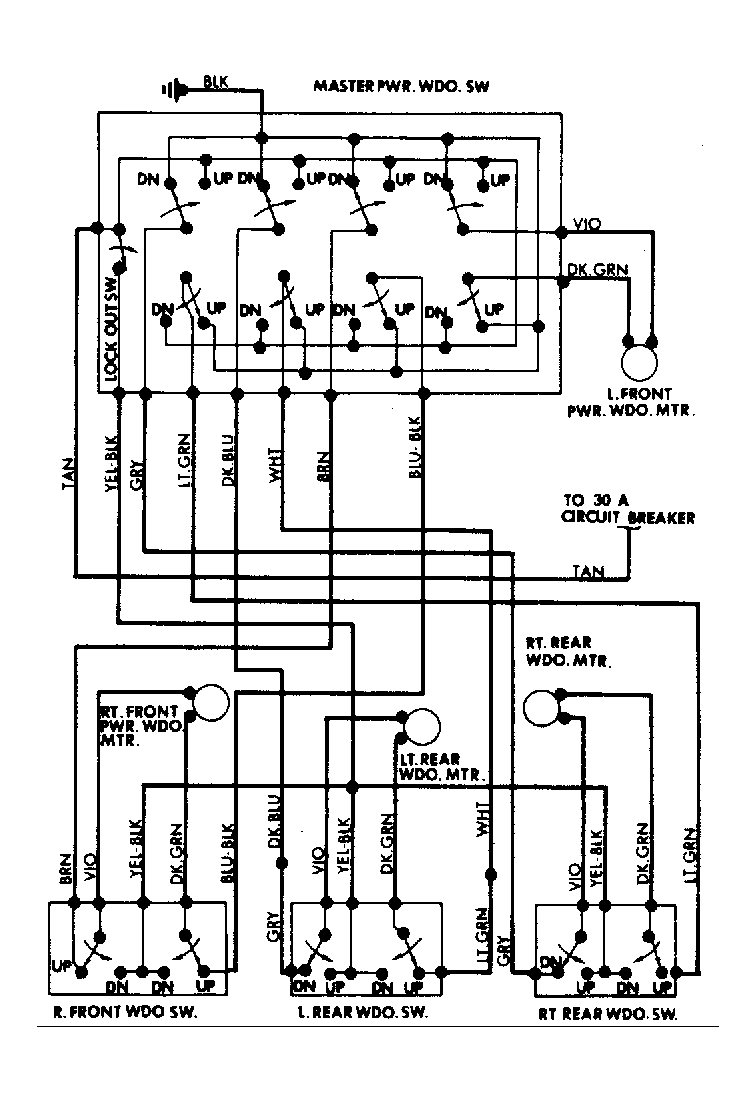

Fig 5: E Class, LeBaron & 600 Sedan/Wagon Power Window Wiring Diagram

Fig 6: LeBaron and 600 Special Hardtop Power Window Wiring Diagram
