Throttle Body: Installation

Using a new gasket, with tabs facing forward, install throttle body on intake manifold. Reverse removal procedure to complete installation.

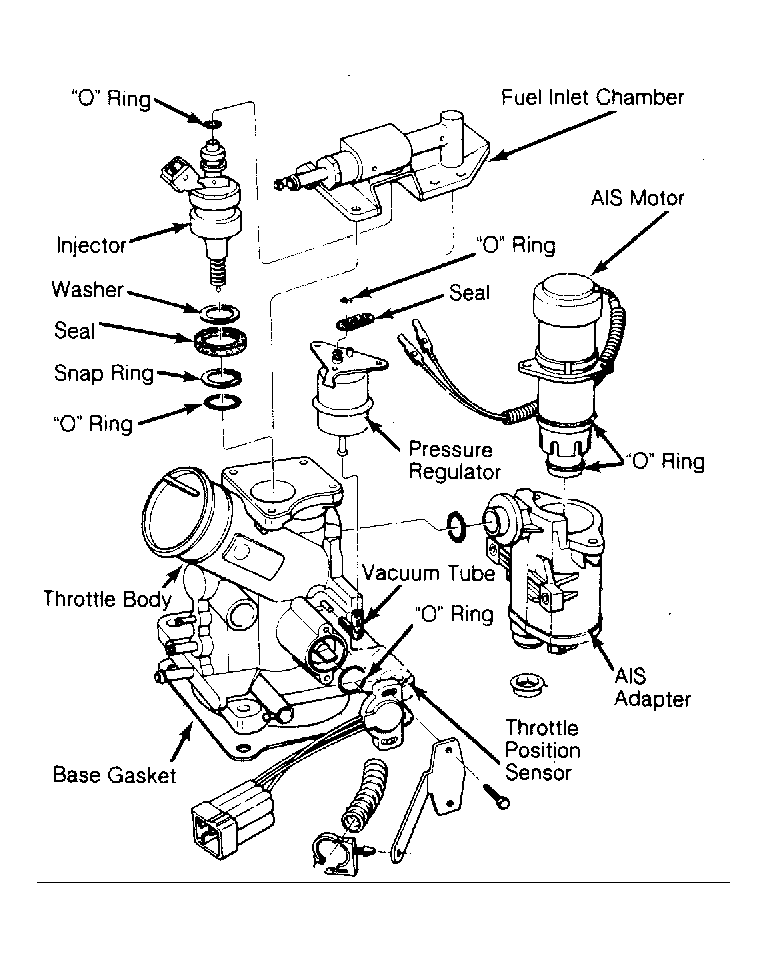

Fig 1: Exploded View of Throttle Body
G1632
