KICKDOWN Band (Front)

  1. Loosen adjusting screw lock nut, and back off 5 turns. After making sure adjusting screw turns freely in case, tighten screw to 72 INCH Lbs. (8 N.m).
  2. Back off screw the specified number of turns given in KICKDOWN BAND ADJUSTMENT  . Hold adjusting screw in this position and tighten lock nut. See Fig 1 .
    NOTE: Kickdown band adjusting screw is located on left side (top front) of transaxle case.

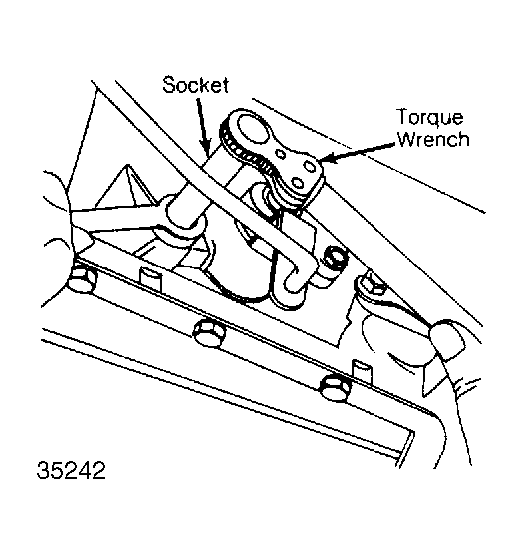

    Fig 1: Kickdown Band Adjustment (Front)
    G35242
    KICKDOWN BAND ADJUSTMENT

    Application Back Off Screw
    A-415 3 Turns
    A-413 & A-470 2 1/2 Turns
