Cold Dr12A - Carburetor Air Control Valves

  1. Tee in a vacuum gauge in hose at air switching valve control solenoid and start engine. Vacuum gauge should read zero.

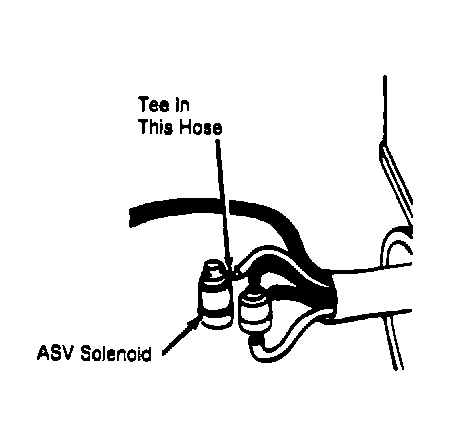

    Fig 1: ASV Solenoid Location, COLD DR12A - Carb. Air Control Valves
    G95725Courtesy of CHRYSLER MOTORS.
  2. If vacuum was greater than zero or engine starts and stalls, go to next step. If vacuum was zero, go to COLD DR12F
