Travel Computer Switch Module

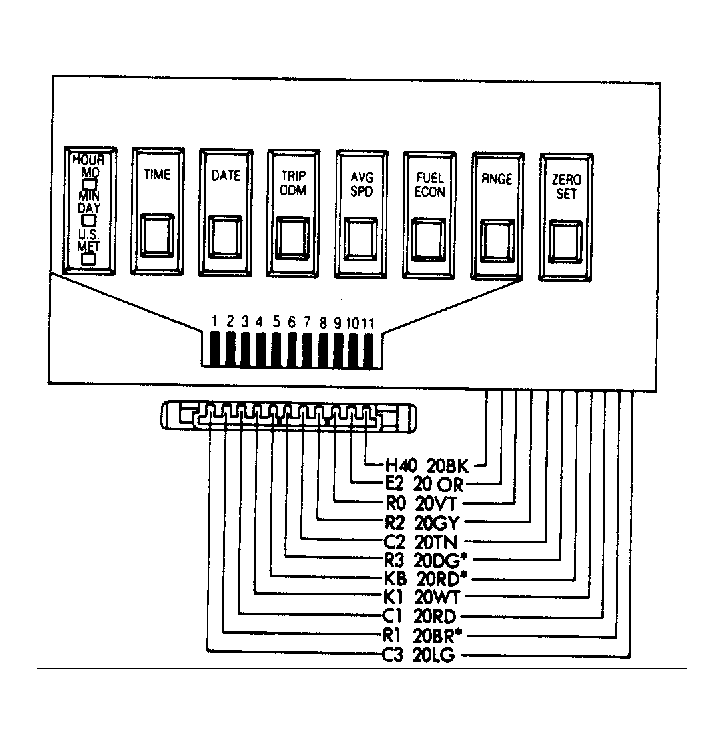

Test is accomplished using an ohmmeter. DO NOT use a test lamp as it will damage unit. Disconnect switch connector (Green) located at rear of cluster on right side of steering column. While depressing a particular button, check for continuity at specific connector terminals as shown in the chart.
TRAVEL COMPUTER SWITCH CONTINUITY
| Button Depressed | Terminal Continuity |
|---|---|
| TIME | 4 and 5 |
| TIME | 3 and 6 |
| DATE | 3 and 8 |
| TRIP ODOMETER | 3 and 2 |
| AVG SPEED | 2 and 7 |
| FUEL ECONOMY | 3 and 9 |
| RANGE | 1 and 9 |
| ZERO SET | 1 and 2 |
| HOUR/MONTH | 7 and 8 |
| MINUTE/DAY | 6 and 7 |
| U.S./METRIC | 7 and 9 |
