Float Drop

  1. With air horn and gasket removed, turn right side up. Using a "T" scale, measure specified float drop from air horn gasket surface to bottom of float. See Fig 1 .
  2. To adjust, bend float tang on float arm that contacts fuel inlet needle seat boss.

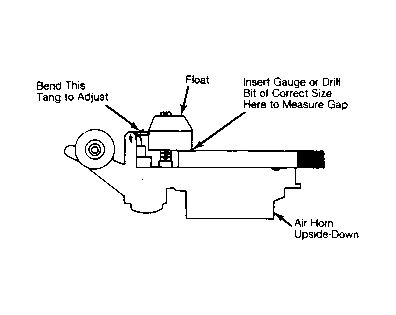

Fig 1: Float Drop Adjustment Bend tang to adjust.
G457
