Miscellaneous Components

MISCELLANEOUS COMPONENTS LOCATION

Component Location
Ballast Resistor On center right inner fender panel.

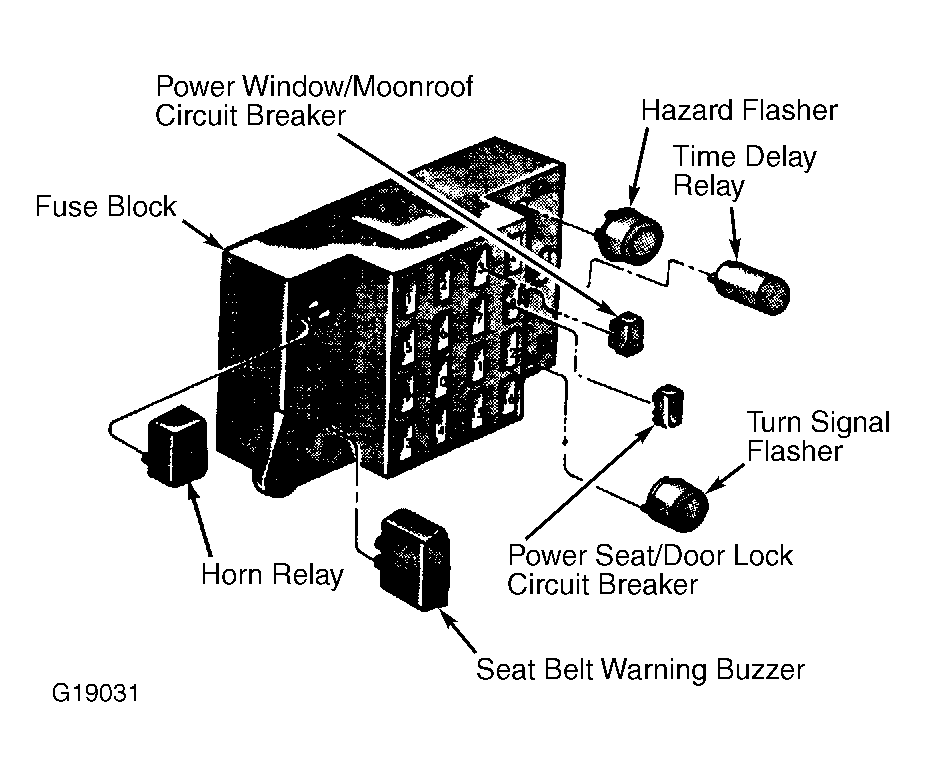

Door Lock Circuit Breaker In fuse block on left side of pedal support bracket. See Figure.
Moonroof Circuit Breaker In fuse block on left side of pedal support bracket. See Figure.
Power Seat Circuit Breaker In fuse block on left side of pedal support bracket. See Figure.
Power Window Circuit Breaker In fuse block on left side of pedal support bracket. See Figure.
