Base Ignition Timing Specifications

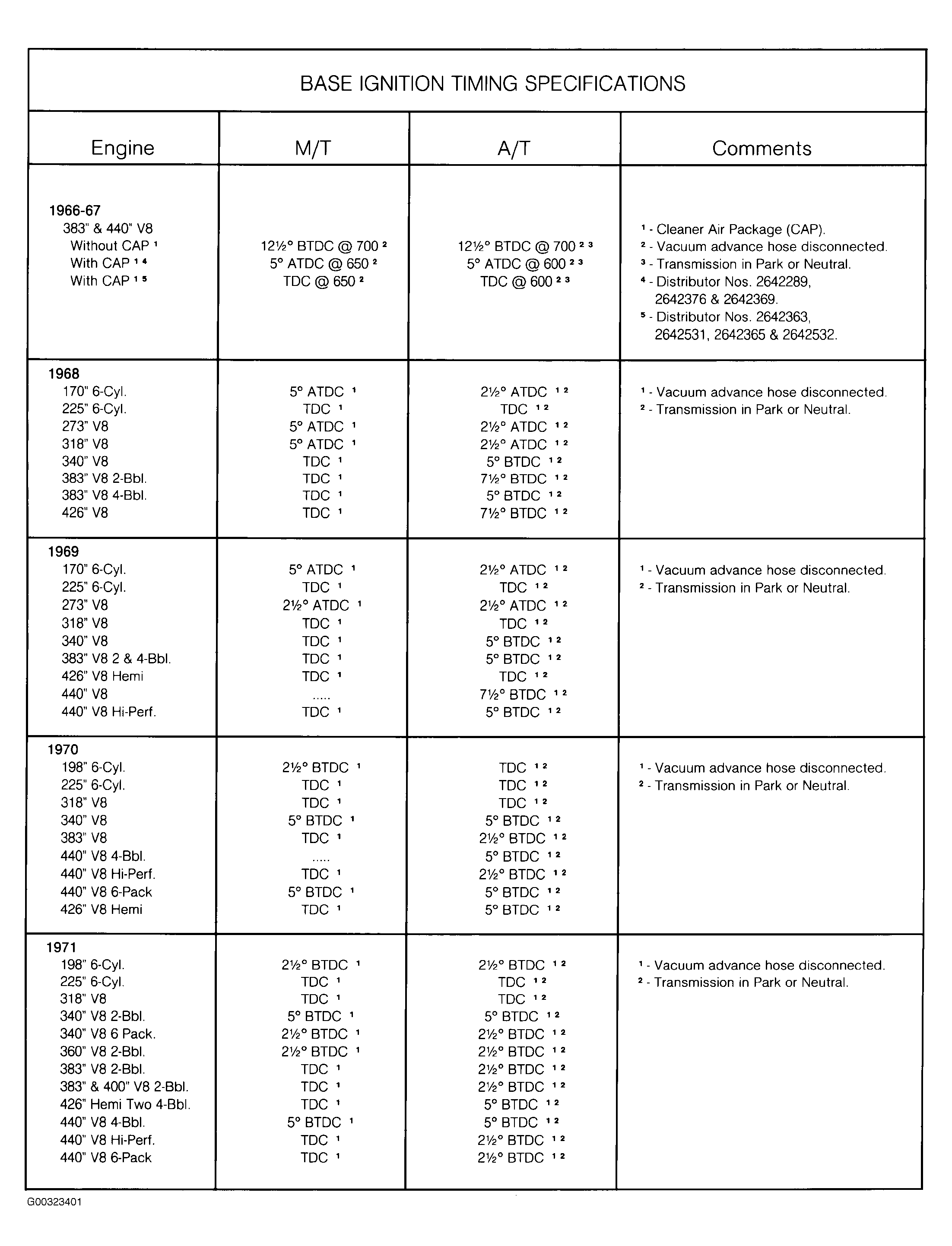

Fig 1:

G00323401

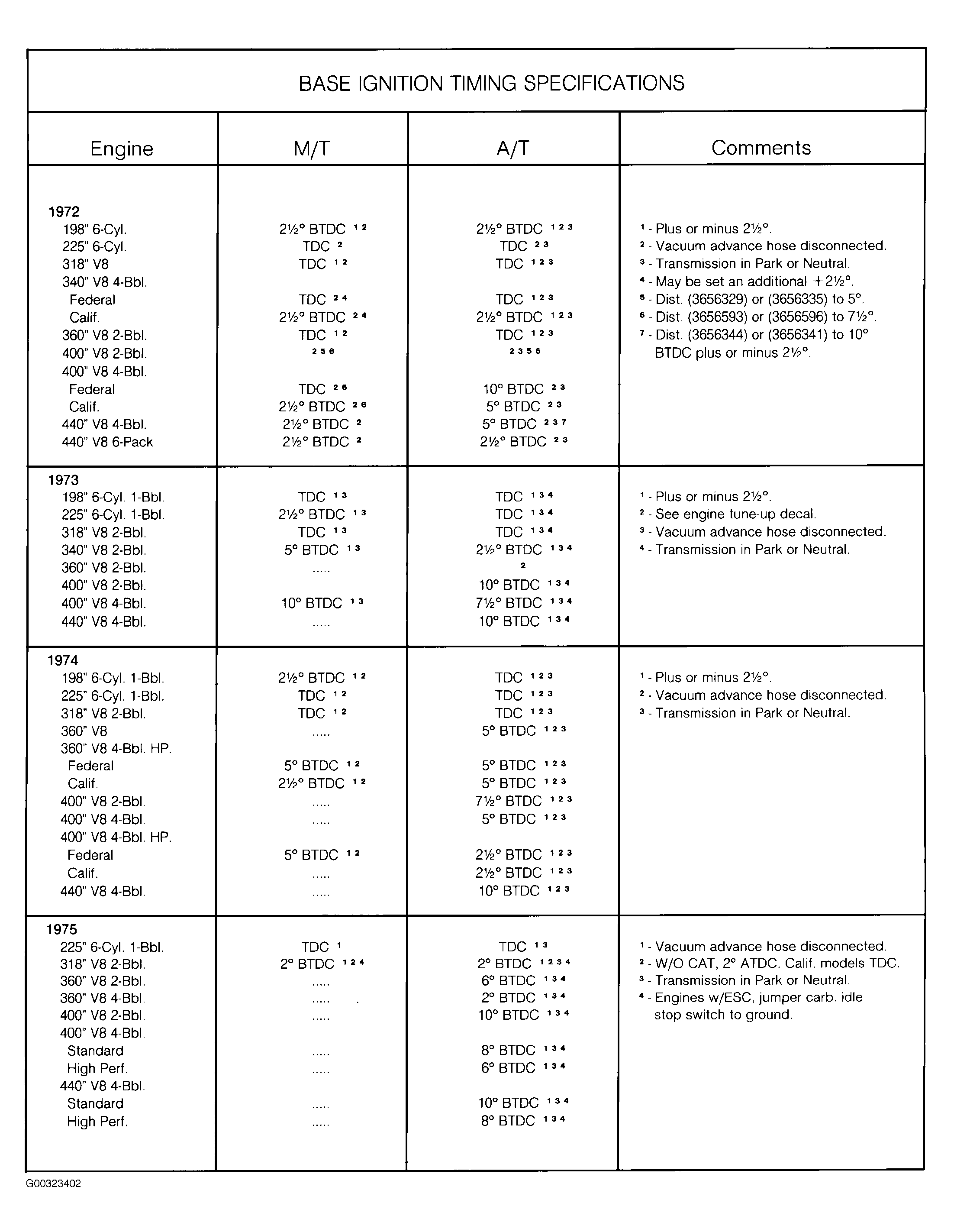

Fig 2:

G00323402

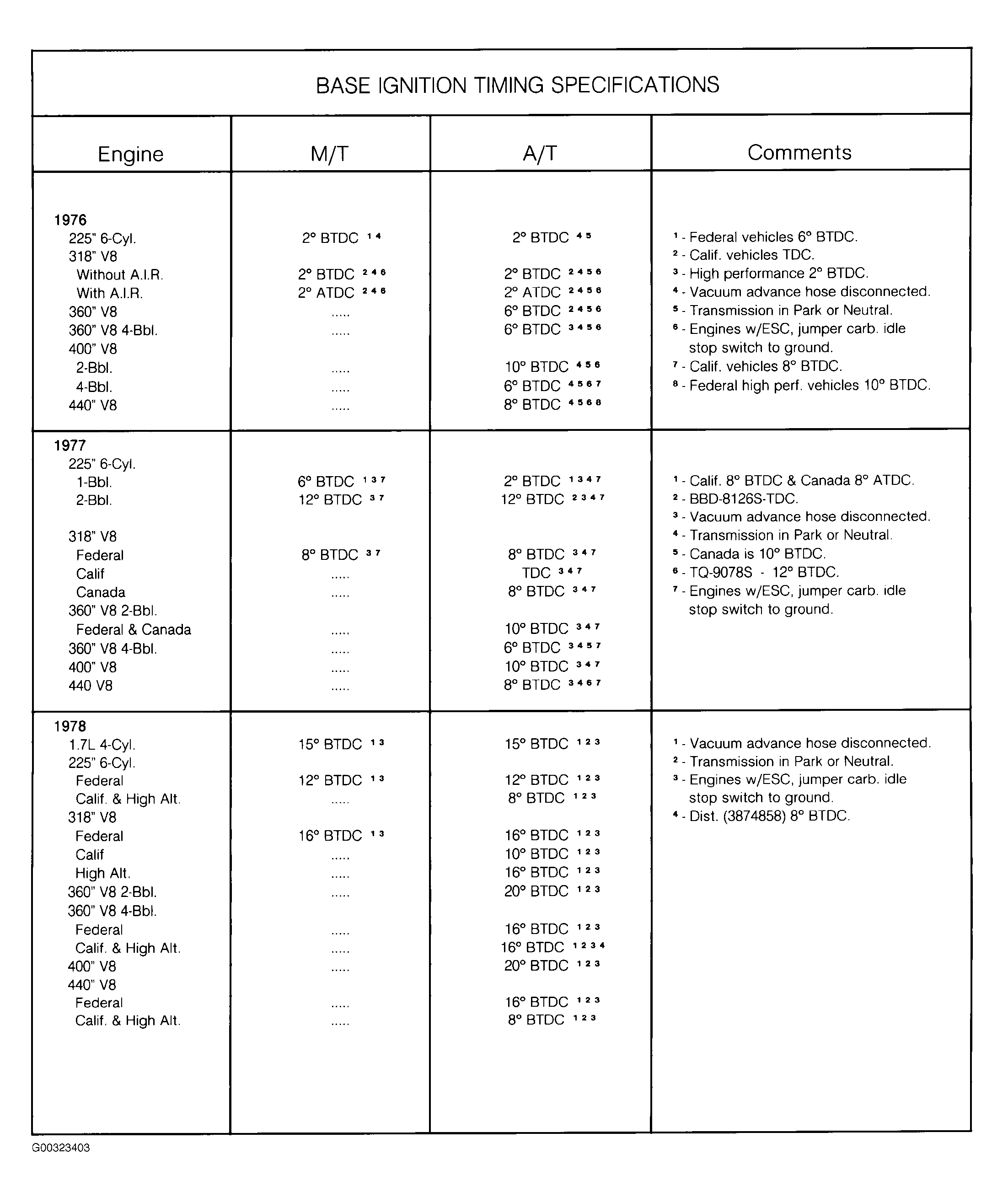

Fig 3:

G00323403

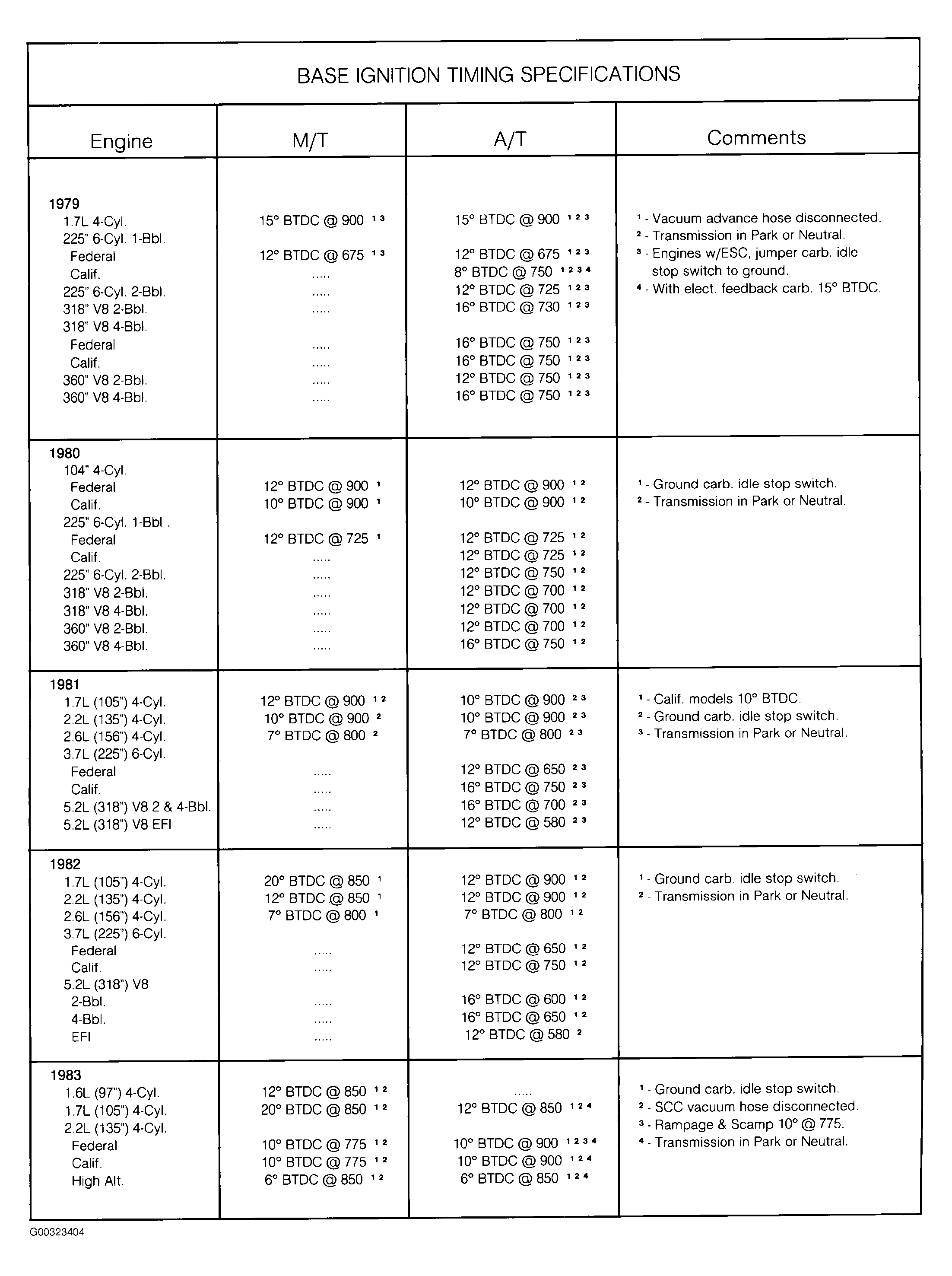

Fig 4:

G00323404

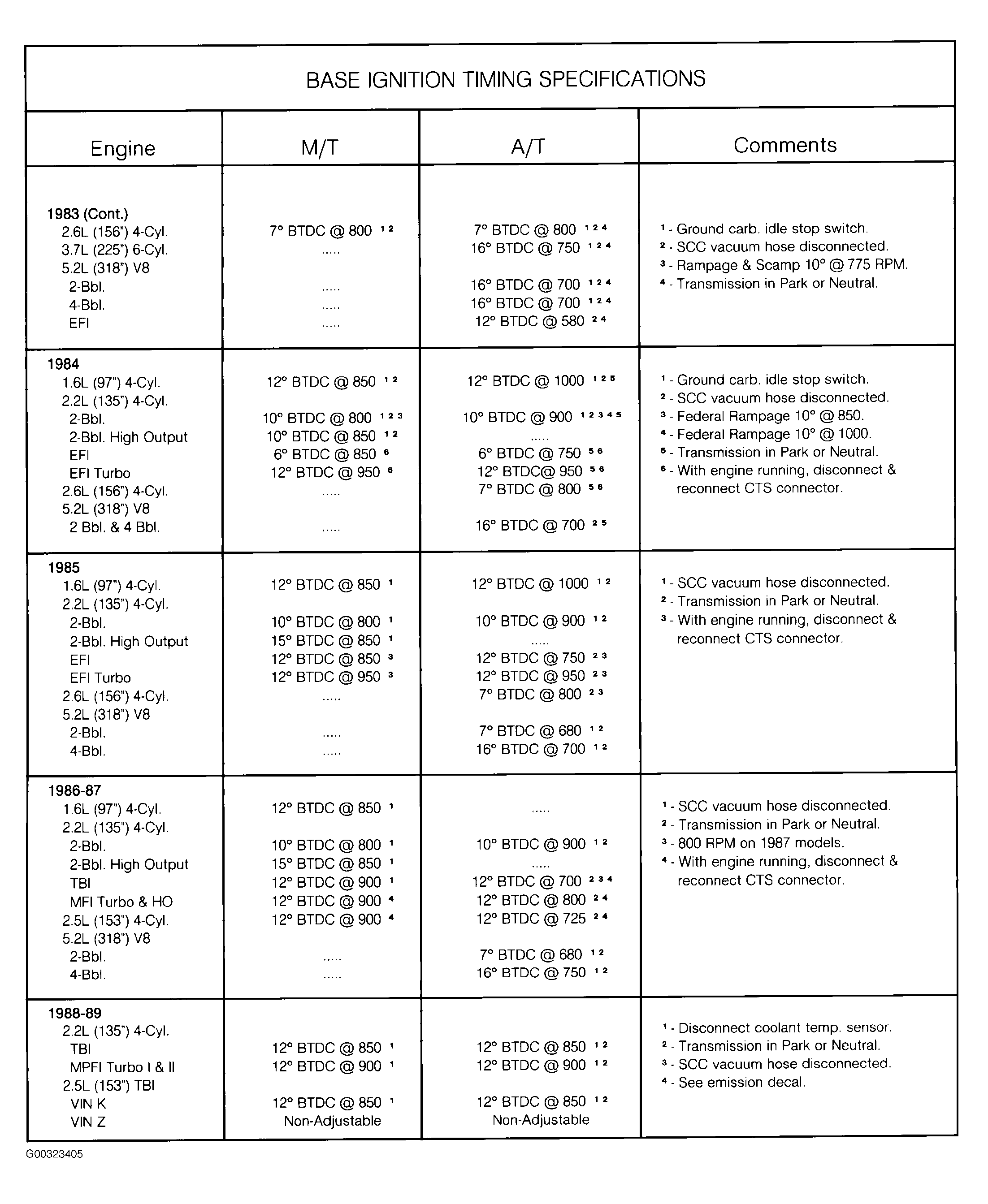

Fig 5:

G00323405

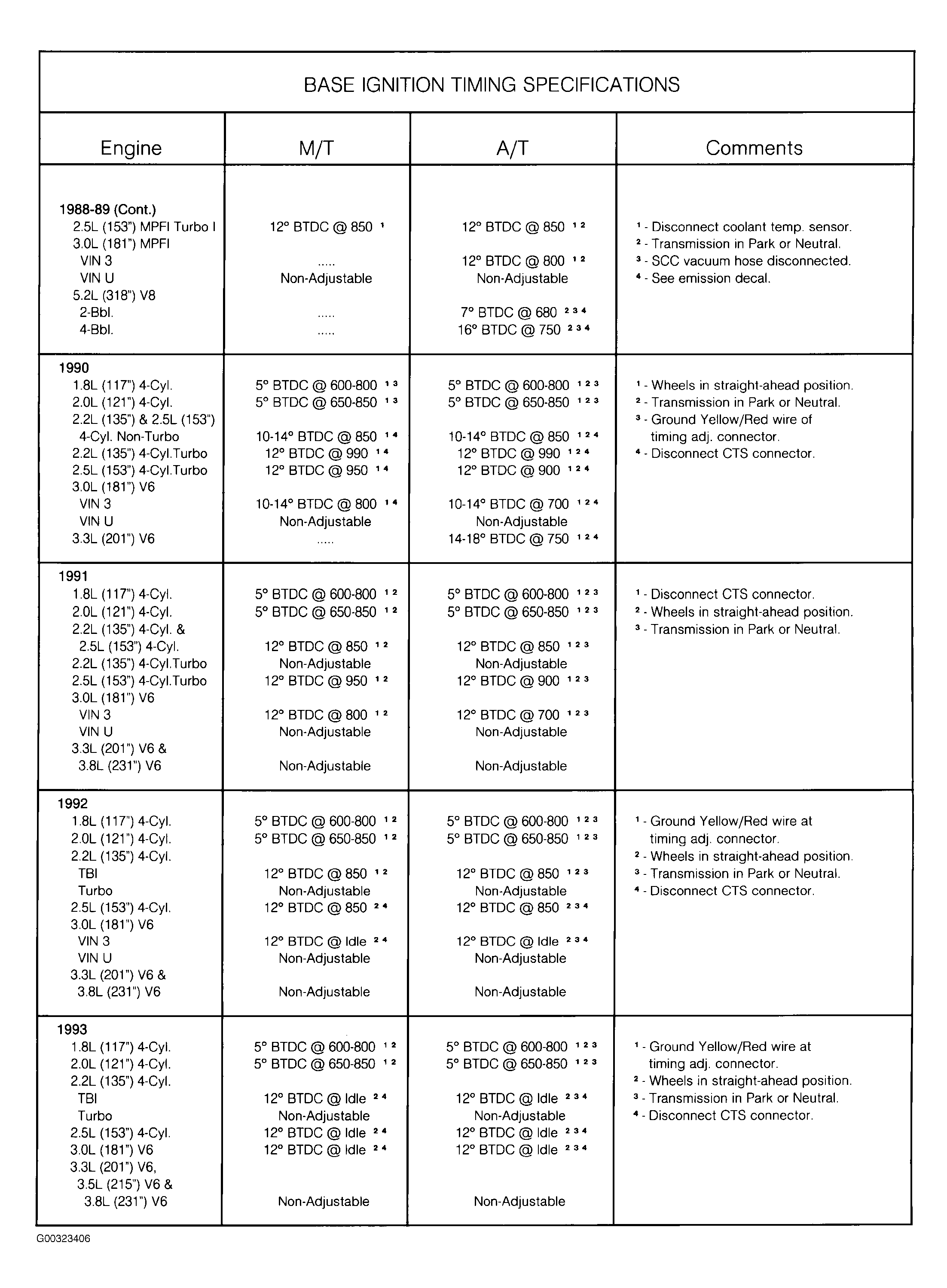

Fig 6:

G00323406

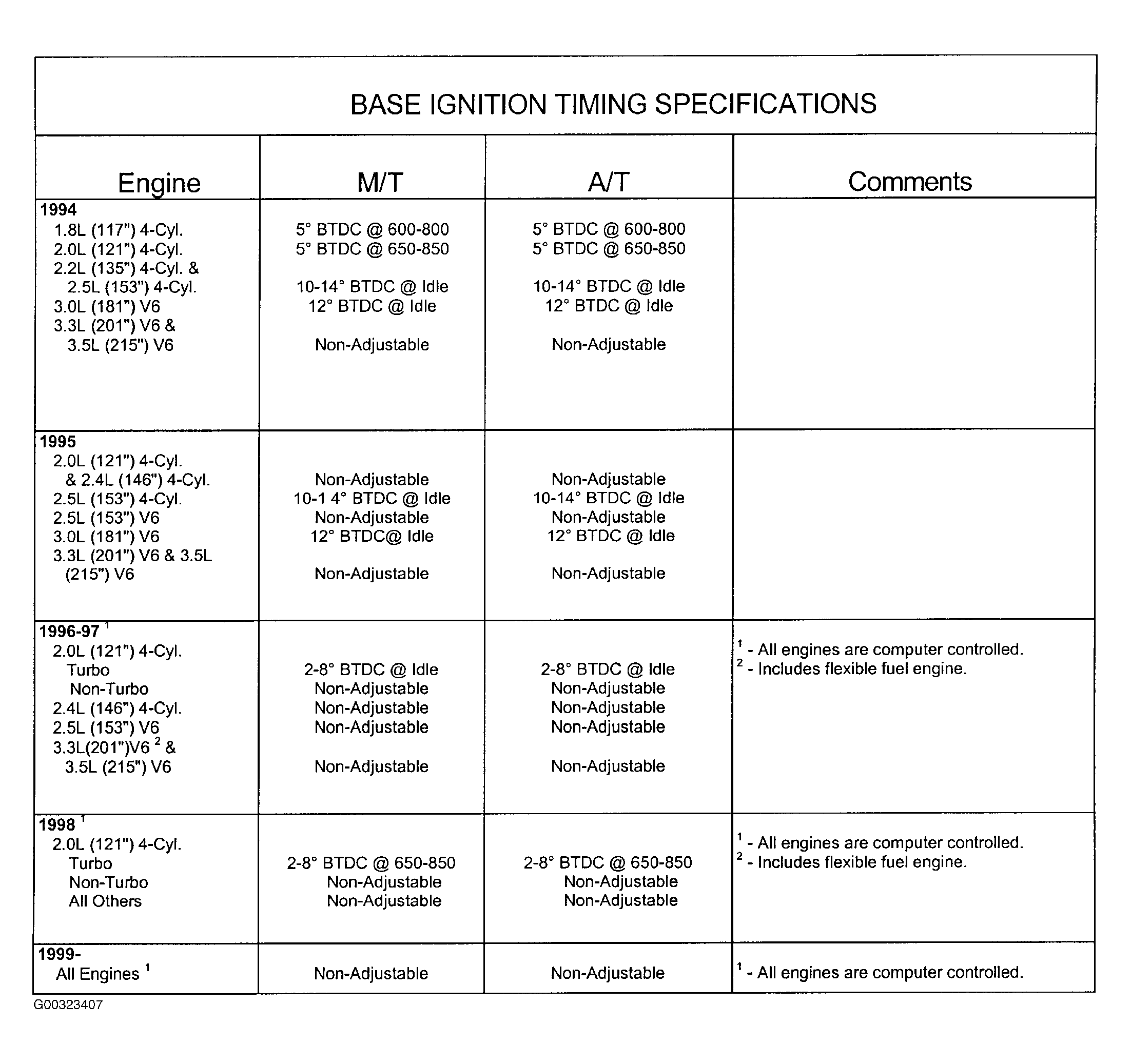

Fig 7:

G00323407
