Towing Precautions

  1. When attaching towing slings, hooks, and chains to vehicle, be sure that all connections are safe and secure and will not damage chrome, fuel tank, lower body panels or any other vehicle parts.
    NOTE: A bumper to tow bar restraint strap is advisable to prevent fuel tank damage in event of tow truck panic stops.
  2. Cross all curbs at 45° angles Towed vehicles should be raised until lifted wheels are at least 4" off ground Brake drums and rotors should have at least 8" clearance Make sure there is adequate ground clearance at opposite end of vehicle as well.
  3. If vehicle is to be towed with rear wheels off the ground, steering wheel should be centered and lashed to the window division channel or held in centered position with a suitable steering clamp DO NOT depend on the vehicle's steering lock to hold front wheels in the centered position.
  4. Use suitable wooden blocking between chains and/or sling and frame or body to prevent additional strain or damage Do not attach "J" hooks to suspension system components Where possible, use "T" hooks in frame slots to attach chains Always refer to instructions provided by manufacturer of hoisting equipment If vehicle has been damaged, secure all loose or protruding parts.

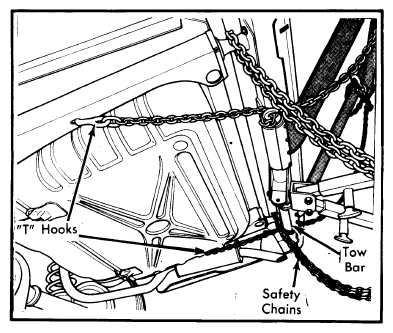

    Fig 1: Typical Rear Hookup
    G09354484Courtesy of NOT AVAILABLE
