All Except 100 Amp. Alternator

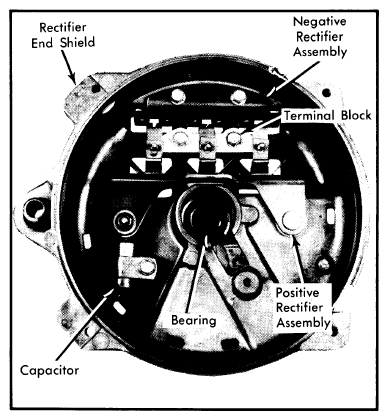

- Install mica insulator on heat sink mounting stud in end shield. Install round plastic insulator with flat face up in battery stud hole. Install positive heat sink assembly, guiding 3 diode straps over studs on terminal block,
Courtesy of CHRYSLER GROUP, LLC
- Install capacitor terminal, insulator, bracket, and positive heat sink nut and lock washer. Turn end shield over and install round plastic insulator (flat side up), and nut and washer assembly. Slide negative rectifier and heat sink assembly into place in end shield. Position 3 diode straps on terminal block studs. Install hex-head screws. Then follow procedure under All Models.
