Cold Weather Modulator (Ford Motor Co. Only)

Some Ford Motor Co. vehicles have a vacuum modulator located in the air cleaner. During engine operations in cold weather, it prevents the air cleaner duct door from opening to non-heated intake air. When available outside air is above 55°F, the cold weather modulator does not operate.

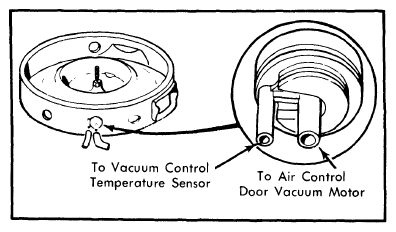

Fig 1: Cold Weather Modulator (Ford Motor Co. Only)
G09317725Courtesy of FORD MOTOR CO.
