Automatic Level Control: Adjustments

Leveling control valve assemblies are adjusted at factory and should not need adjustment. If adjustment is necessary, use following procedures:

1. Disconnect "U" bolt linkage clip from rear axle.
2. Loosen adjustment arm nut and allow arm to move freely.
3. Measure 6.25" from upper wheelhouse inside flange to center of adjustment arm grommet.
4. Tighten adjustment arm and reinstall "U" bolt linkage clip.

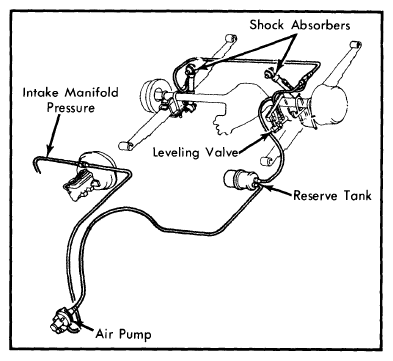

   Fig 1: Automatic Height Control System (Chrysler Corp)

   Courtesy of CHRYSLER GROUP, LLC
