CHRYSLER Corp.: Caster

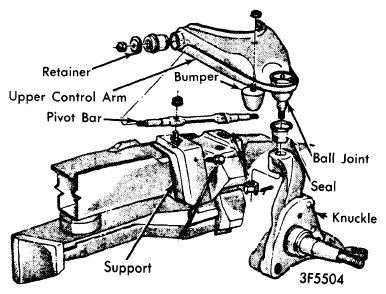

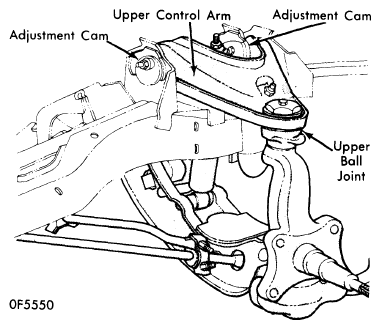

Caster adjustments are made by rotating eccentric cam assemblies at inner end of upper control arm front and rear legs or by changing position of pivot bar. Remove all foreign material from exposed threads of cam adjusting bolt nuts or from pivot bar adjustment bolt nuts. Record initial caster reading before loosening cam bolt nuts or pivot bar nuts. Caster settings should be held as nearly equal as possible on both wheels.
