Removal Procedure

  1. Extend the steering column to its furthest point to allow the instrument panel steering column upper trim cover to clear the instrument panel.

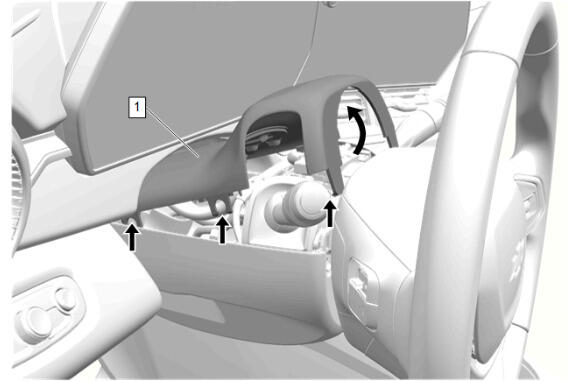

  2. GM5910455Courtesy of GENERAL MOTORS COMPANY

    Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column lower trim cover.

  3. Instrument Panel Steering Column Upper Trim Cover (1) - Reposition

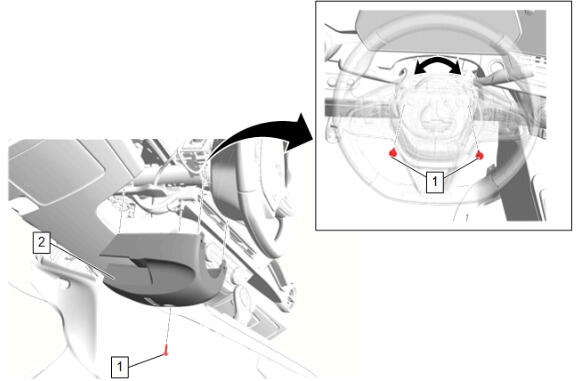

  4. GM5910478Courtesy of GENERAL MOTORS COMPANY

    Rotate the steering wheel left and right to access the instrument panel steering column lower trim cover bolts (1).

  5. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Remove [3x]
  6. Instrument Panel Steering Column Lower Trim Cover (2) - Remove

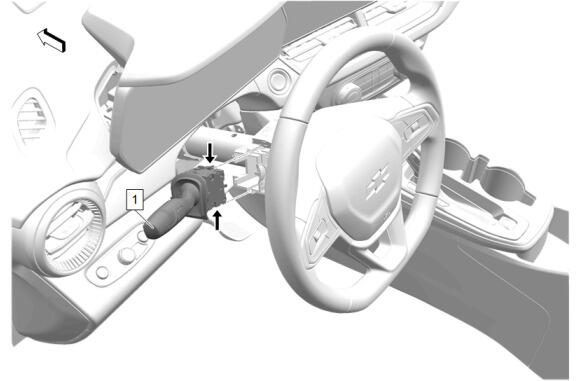

  7. GM5927717Courtesy of GENERAL MOTORS COMPANY

    Release the retaining tabs.

  8. Turn Signal Switch (1) @ Turn Signal Switch Bracket - Remove
