Installation Procedure

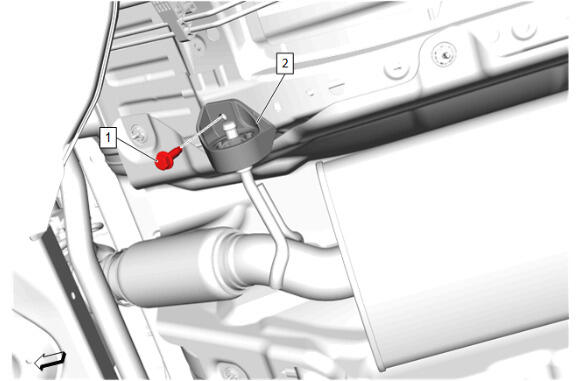

  1. GM6244212Courtesy of GENERAL MOTORS COMPANY

    Exhaust Front Insulator (2) @ Exhaust Muffler - Install

    2. CAUTION:

    Fastener Caution

  2. Exhaust Hanger Bracket Bolt (1) - Install and tighten - Fastener Specifications
  3. Lower the vehicle.
